Ashdown Engineering RM-MAG-220 Rootmaster 220W Bass Amp Head

Power Output	220 Watt
Power Handling	115 – 230 Volts
Speaker Outputs	2 x Jack Sockets
Frequency Response	-3dB at 17Hz and 30kHz
High Instrument Input	Impedance 3.9m Ohms, input range 150mV – 20mV p-p
Low Instrument Input	Impedance 10K Ohms, Input range 300mV – 40V p-p
Line Input	Impedance 10k Ohms, input range 300mV – 40V p-p
DI Output	600 Ohm balanced / Level -20dBu nominal
Tuner Output	Impedance 22k Ohms / Level 0dBu nominal
Impedance	Minimum 4 Ohm
Signal to noise	Better than 80dB (EQ flat)
EQ	Bass +/-15dB @ 100Hz Lo Mid +/-15dB @ 220Hz Middle +/-15dB @ 660Hz Hi Mid +/-15dB @ 1.6kHz Treble +/-15dB @ 7kHz shelving Deep +
Effects Send	impedance 22k Ohm / Level 0dBu nominal
Effects Return	impedance 22k Ohm / Level 0dBu nominal
Distortion	Less than 0.5% THD
H x W x D (mm)	78 x 313 x 225
Weight (kg)	7.5

Manufacturer’s Description

Ashdown Engineering RM-MAG-220 Rootmaster 220W Bass Amp Head

At Ashdown, we know that not every gig pays the big bucks. Dedicated to busy, hard-working bass players on a budget, Rootmaster heads, combos and cabinets draw on all of our experience working with some of the biggest bands in the world to deliver workhorse reliability, creative tone-shaping, comprehensive recording and performing facilities plus the sonic slam you need to underpin your band’s performances night after night – all at a price that won’t break the bank.

Deriving its power from a classic 220W solid state engine, the RM220 delivers a compact reliable head loaded with tone-shaping power and flexible features.

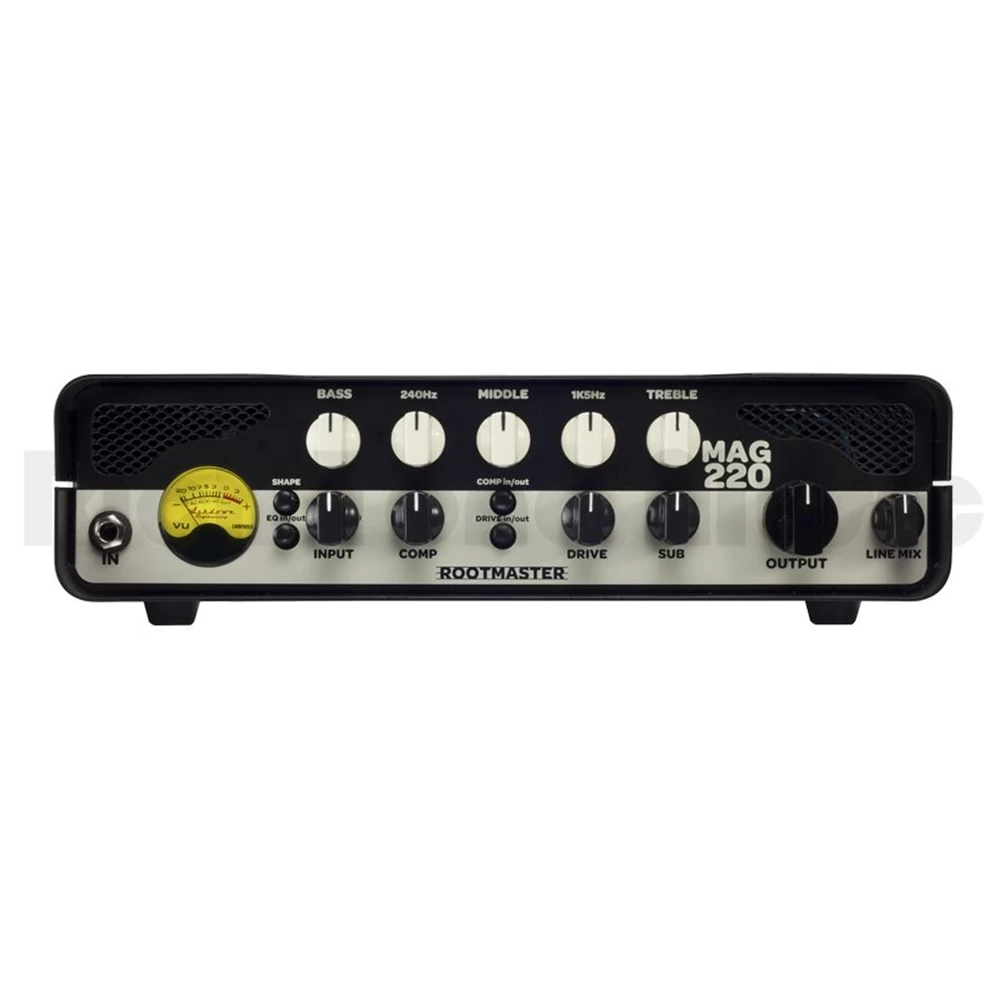

Simple, powerful EQ

It all starts with an ultra-low-noise instrument input where the accompanying Input Level control helps you perfectly match the output of your bass. Five-band rotary tone controls act with surgical precision to provide total control over your sound, while a Shape switch instantly dials you in to a classic Ashdown tone setting, straight from the world-famous ABM.

One-knob Compression

Instantly adding warmth and body to your tone, this simple to use, great sounding compressor delivers a powerful, even sound to make sure your bass will fill out any mix.

Footswitchable variable overdrive

With footswitchable flexibility, our tube-emulated overdrive can take your core bass sound and push it into warm overdrive through to distorted filth whenever you need to add extra grind and girth to your tone.

Kick it down

Bringing extra depth and definition to your bass parts, the Sub-Harmonic Generator lets you dial in a sub-octave and kick it in via footswitch whenever you need the extra depth for those super-heavy Godzilla moments.

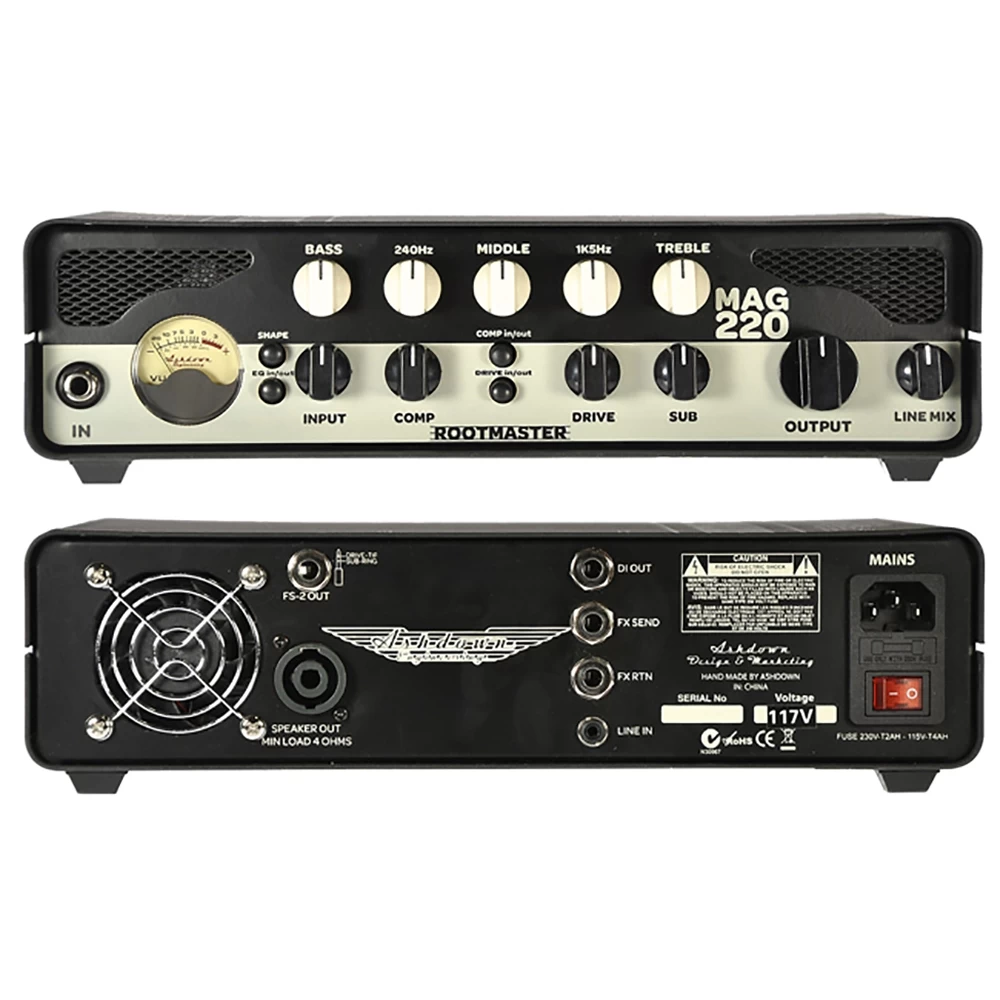

Totally connected

If you want to use your favourite pedals or multi-effects, you’ll find send and return sockets on the back panel, along with a DI output for direct injection into the PA mixer or recording console and a Line Input (with front panel level control) so you can jam along with a backing track in rehearsal.

Create the perfect rig

A combined Jack/Speakon socket with a minimum 4- ohm load provides flexible partnering options with a dedicated range of Rootmaster cabinets. 2 x 10”, 4 x 10” and 2 x 12” cabs all feature custom-designed Ashdown bass drivers plus a high-frequency horn for additional top-end bite. A 1 x 15” completes the range with all cabinets featuring ultra-cool retro cloth grilles, road-ready tolex covering and tough metal protective corners.
