Boss Nextone Stage 40w 1×12 Guitar Combo Amplifier

• Rated Power Output: 40 W
• Nominal Input Level: Input: -10 Dbu (1 M Ohm), Return In: -10 Dbu (100 K Ohm)
• Speaker: 30 Cm (12 Inches) X 1

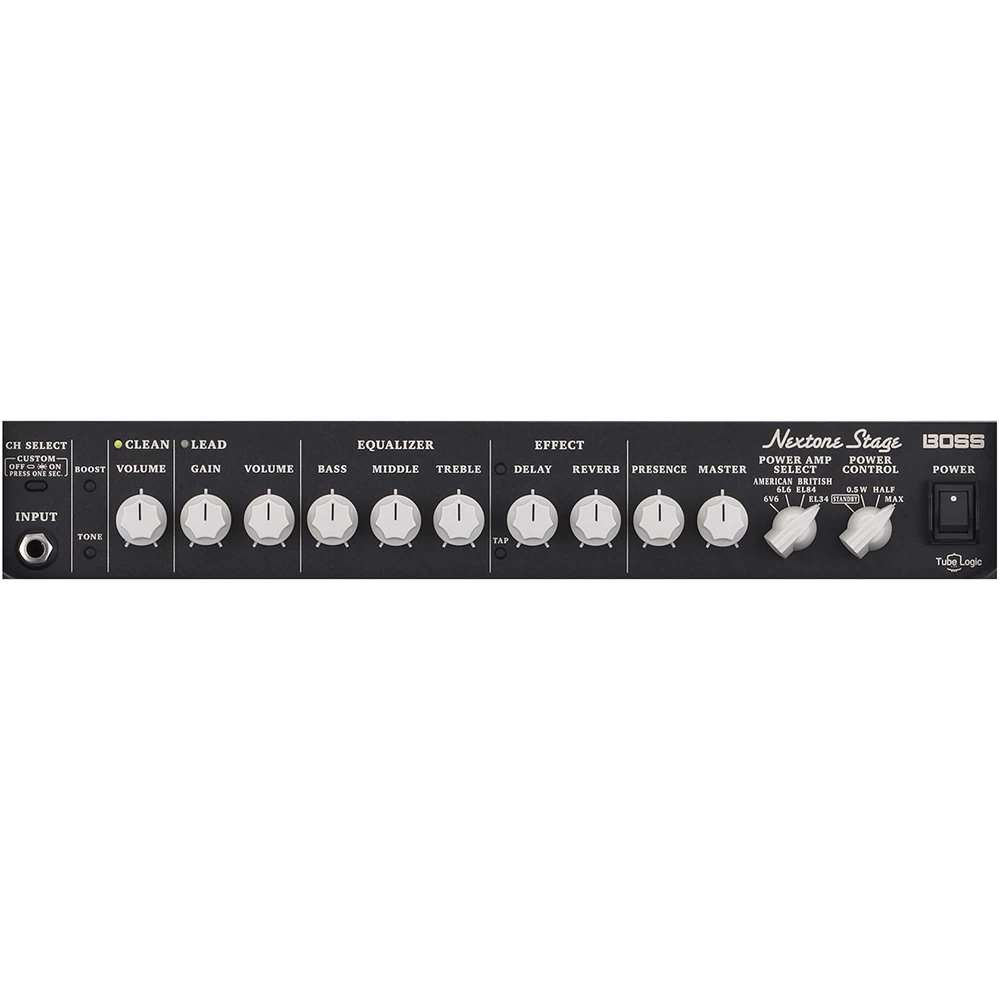

• Controls: Ch Select Button, Boost Button, Tone Button
• Clean: Volume Knob
• Lead: Gain Knob, Volume Knob
• Equalizer: Bass Knob, Middle Knob, Treble Knob
• Effect: Delay Button, Tap Button, Delay Knob, Reverb Knob, Presence Knob, Master Knob, Power Amp Select Switch (6V6, 6L6, El84, El34), Power Control Switch (Standby, 0.5 W, Half, Max), Power Switch
• Indicators: Clean, Lead, Custom Mode, Boost, Tone, Delay, Tap

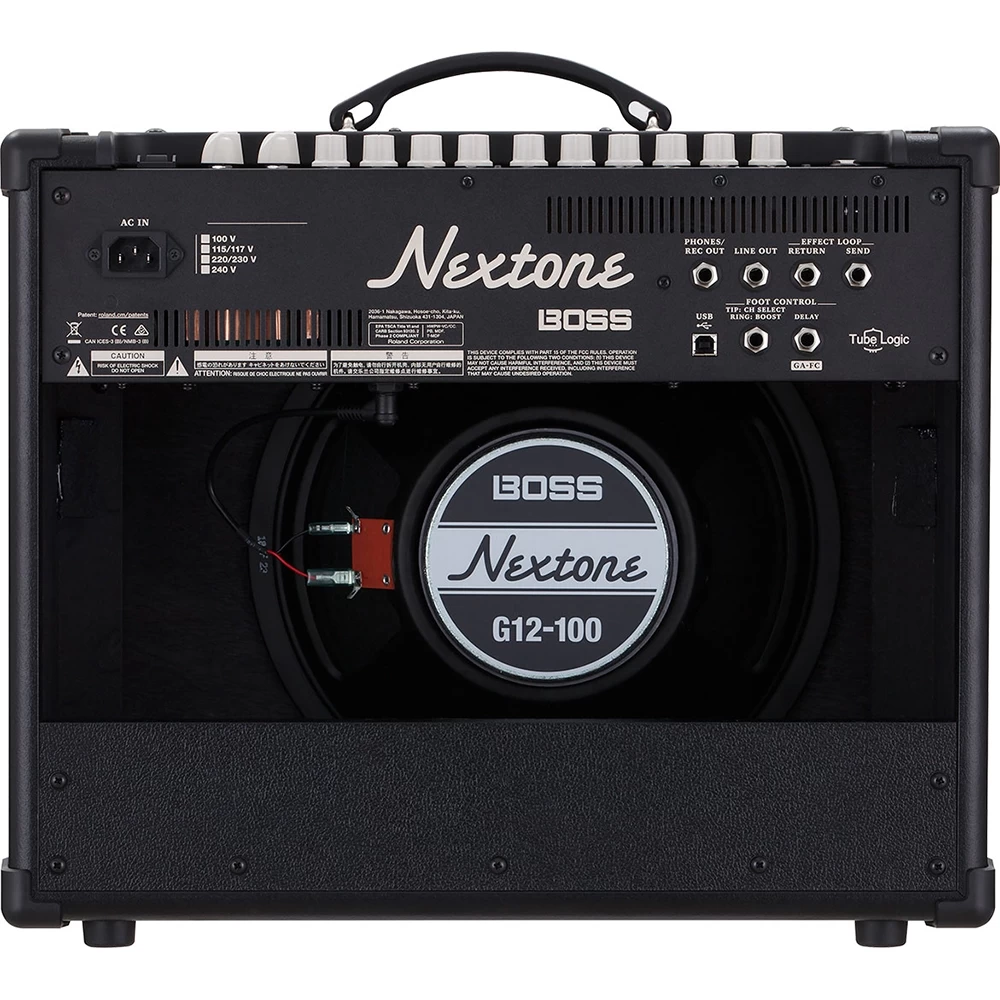

Connectors

• Input Jack: 1/4-Inch Phone Type
• Rec Out/Phones Jack: Stereo 1/4-Inch Phone Type
• Send Jack: 1/4-Inch Phone Type
• Return Jack: 1/4-Inch Phone Type
• Line Out Jack: 1/4-Inch Phone Type
• Speaker Out 16 Ohms A Jack: 1/4-Inch Phone Type
• Speaker Out 16 Ohms B Jack: 1/4-Inch Phone Type
• Speaker Out 8 Ohms Jack: 1/4-Inch Phone Type
• Ch Select/Boost Jack: 1/4-Inch Trs Phone Type
• Delay/Ga-Fc Jack: 1/4-Inch Trs Phone Type
• Usb Port: Usb B Type: Ac In Jack
• Power Consumption: 37 W
• Accessories: Owner’ S Manual, Power Cord, Ga-Fc Sticker

Size And Weight

• Width: 492 Mm 19-3/8 Inches
• Depth: 248 Mm 9-13/16 Inches
• Height: 427 Mm 16-13/16 Inches
• Weight: 13.4 Kg 29 Lbs 9 Oz

Manufacturer’s Description

Combining classic tube sound and feel with next-generation tonal diversity, the BOSS Nextone series presents an exciting new concept in professional guitar amplification. Distinctive channel voicings deliver a wide range of inspiring tones, while four selectable Class AB analog power amp types provide instant access to the unique characteristics of 6V6, 6L6, EL84, and EL34 output tube sections. Backed by our advanced Tube Logic approach, each power amp type re-voices the entire circuit from input to output, putting the complete sonic experience of these signature power stages in one amp for the very first time.

Want to dive deeper with even more sound customization? Just connect to the Nextone Editor and become a virtual tech, fine-tuning bias, sag, EQ, and other internal settings to perfectly match your individual style and touch. Nextone also includes convenient modern features for stage playing, such as built-in effects, a line out for mic-free direct tone, and a power control for expressive cranked-amp sound at manageable volumes. And thanks to Tube Logic, you get to enjoy all the great sound and response of your favorite tube designs without the backbreaking weight and ongoing maintenance hassles.

Features

• Professional performance amplifier with authentic Tube Logic tone
• Four analog Class AB power amp circuits, selectable from the panel: 6V6, 6L6, EL84, and EL34
• Streamlined combo design with 40 watts of power and custom 12-inch speaker
• Clean and lead channels, with standard and custom mode options
• Dynamically responsive power control for cranked-up sound and response at reduced volumes
• Nextone Editor (Mac/Windows) for customizing internal amp parameters, including tone stack type, EQ, sag, bias, effects, system settings, and much more
• Boost and Tone switches for adding crunch and sparkle
• Built-in delay, tremolo, and reverb effects, plus loop for patching in external effects
• External speaker jacks: one 8 ohm and two 16 ohm
• Line, USB, and phones/recording outputs, with three Air Feel mic’d cab settings selectable from the Nextone Editor
• Support for direct recording and re-amping via USB
