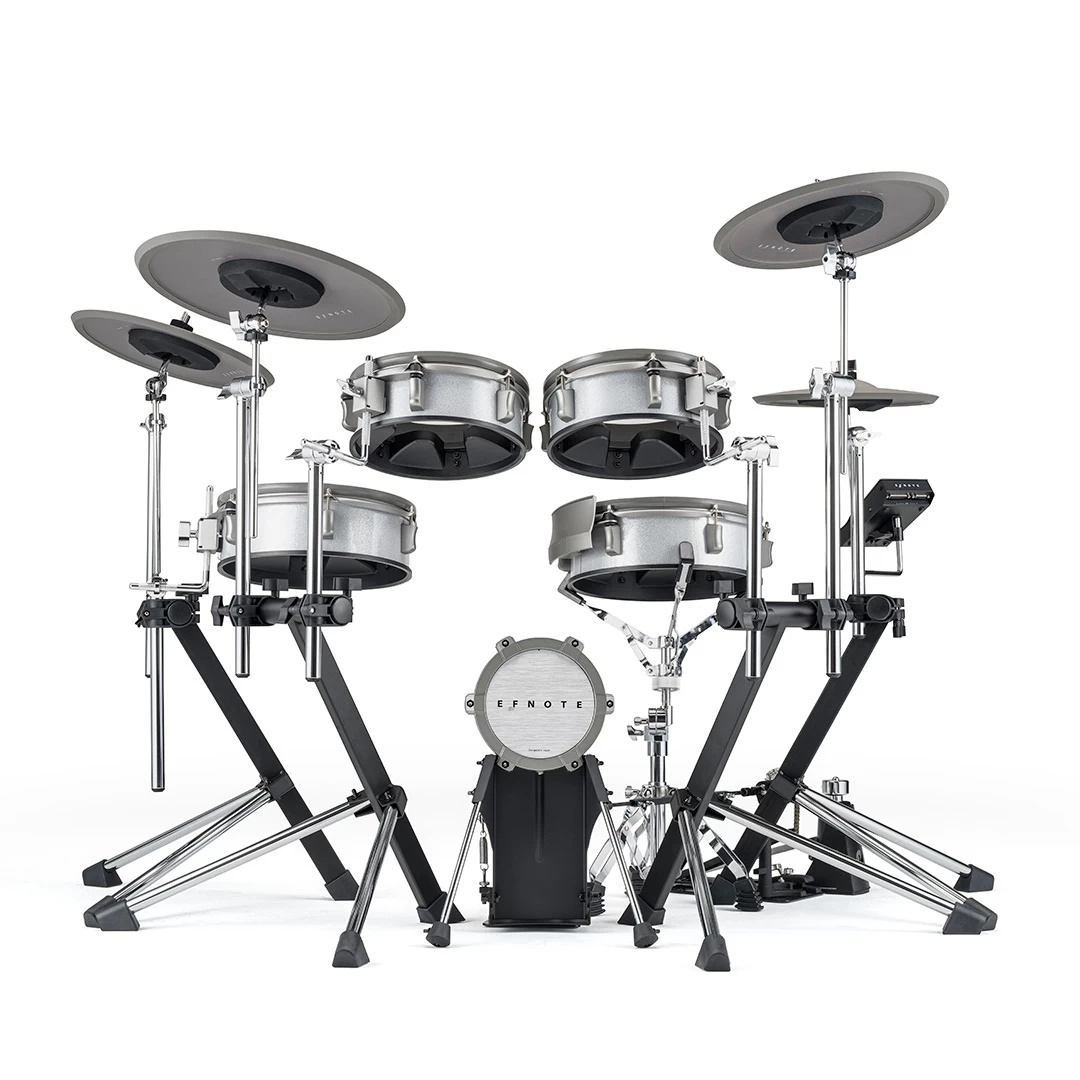

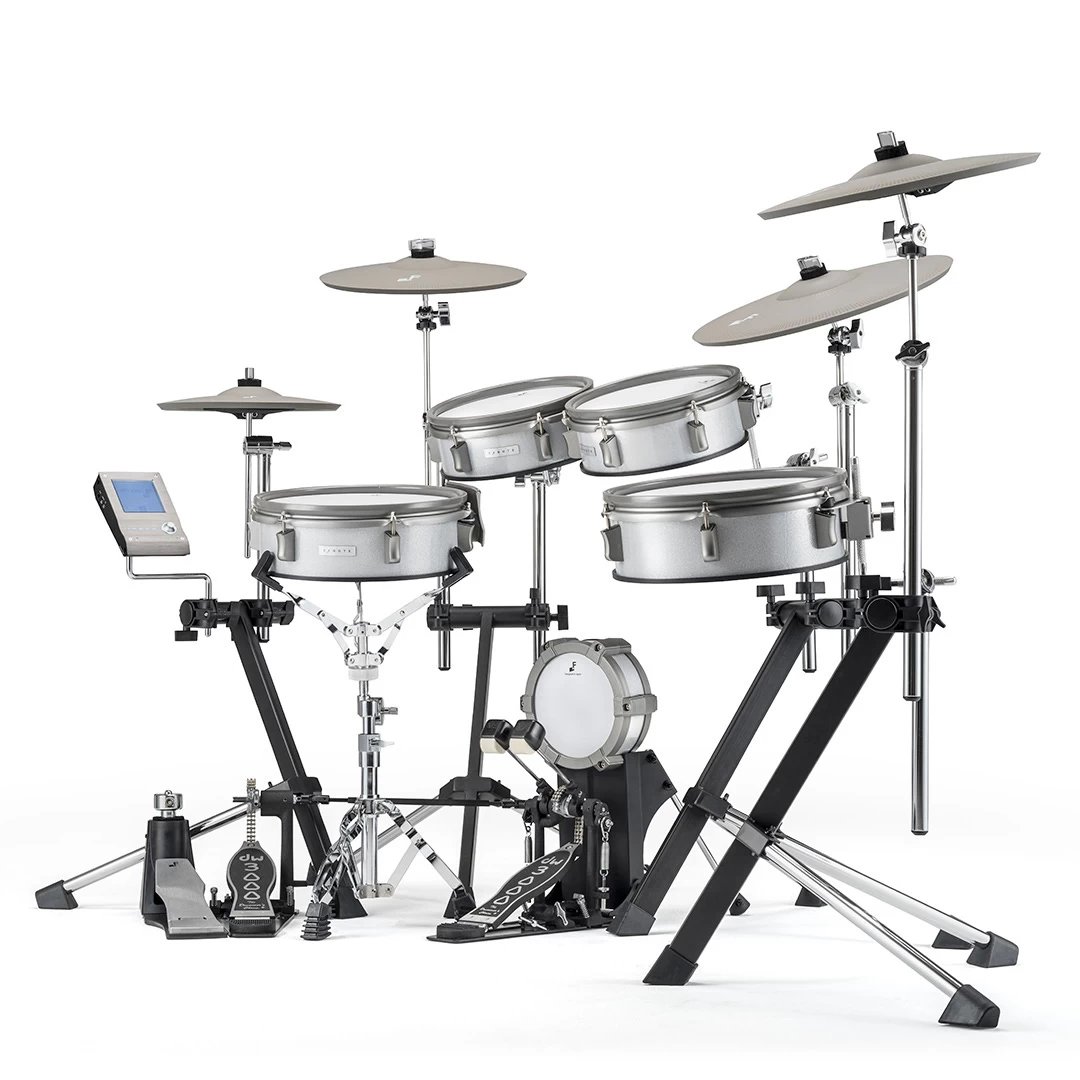

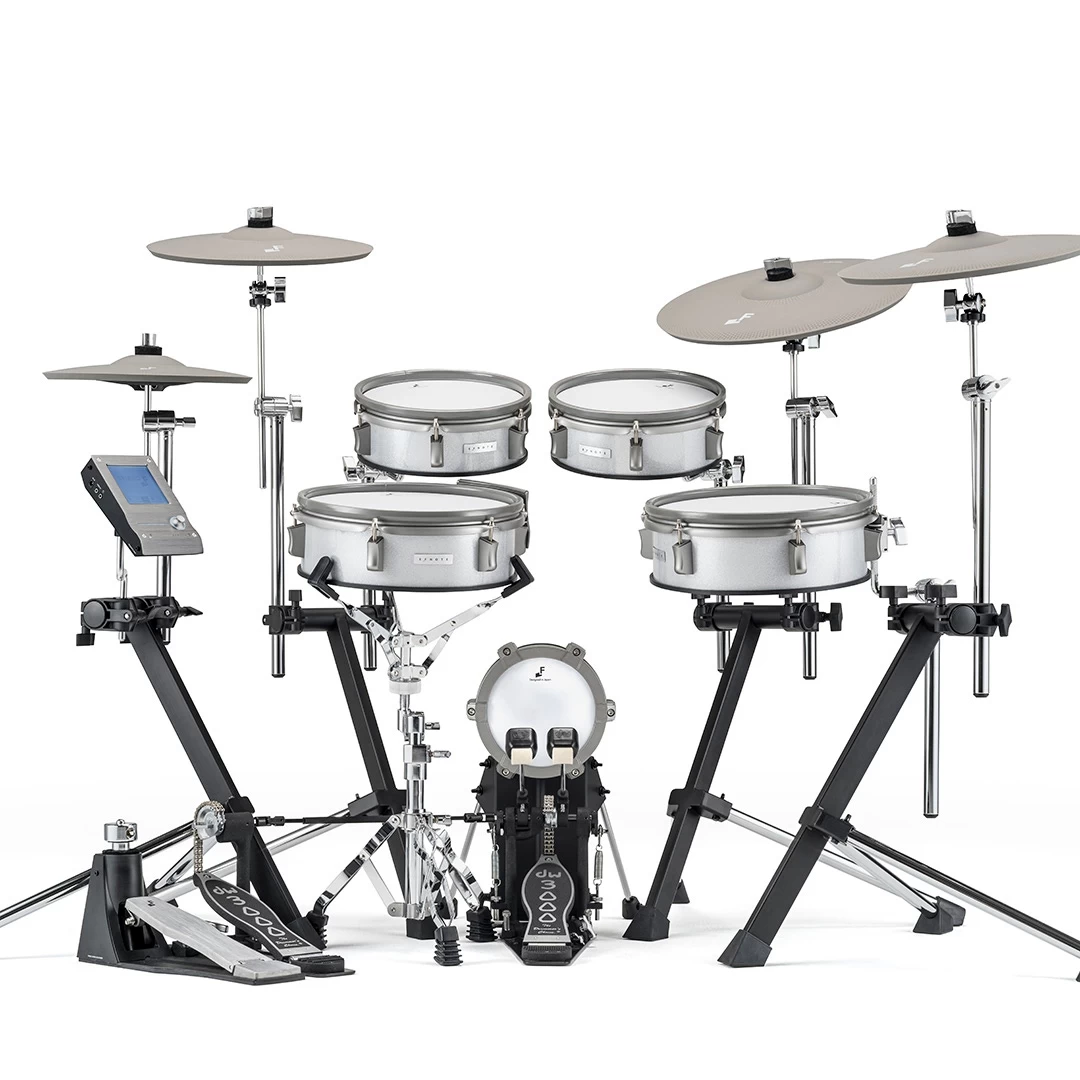

EFNOTE 3 9-Piece Compact Electronic Drum Set W/ 4x Lambda Tripod Stands

Manufacturer’s Description

*Kick drum pedal sold separately

*This drum set ships directly from EFNOTE to your door, please allow 24-72 hours extra processing time.

Beyond the Average

The EFNOTE 3 provides all-around capability as a new standard electronic drums for next generation. Perfect for…

• Playing along with songs
• Daily training
• Drum lesson
• Home recording
• Small gigs

3-Zone Crash / Ride Cymbals

• Elegant “”warm-gray”” colored cymbals
• Fine engraved surface
• Weight simulation with thin edge for appropriate striking feel
• 360° flat sensing with multi-sensor
• 360° choke supported
• Full 3-zone Crash/Ride cymbals (bow/edge/cup)
• 16″” Ride, 14″” Crashes, 12″” Hi-hat

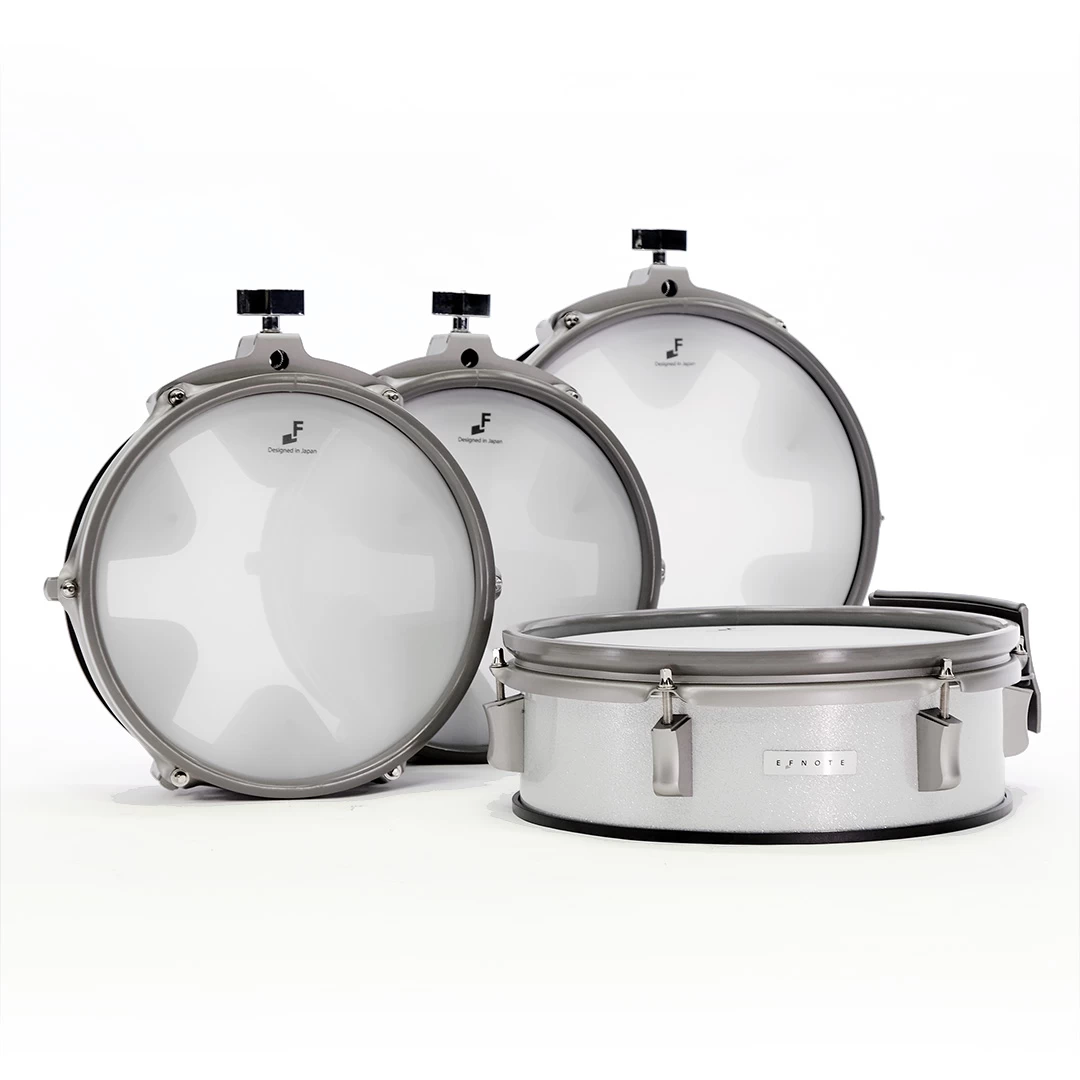

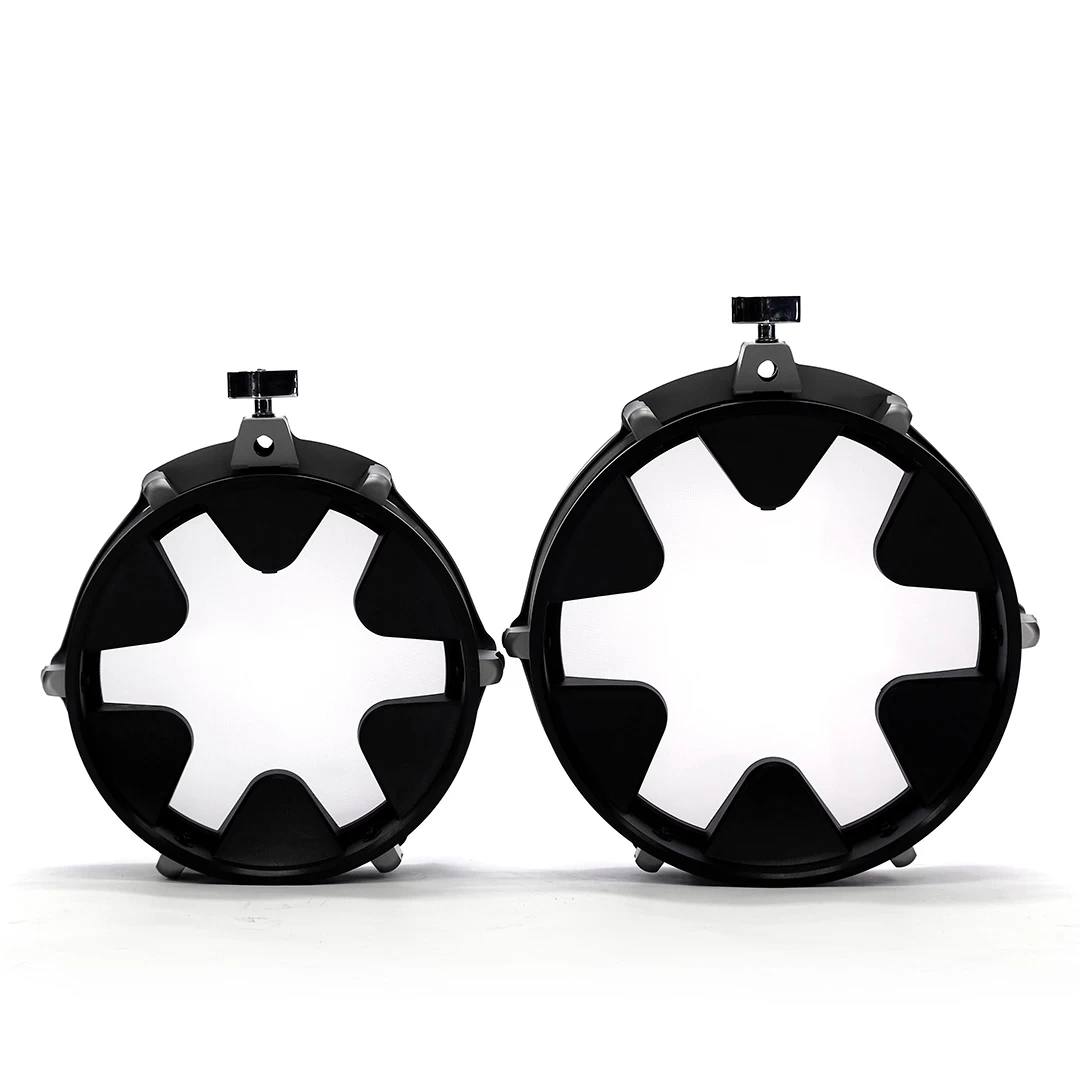

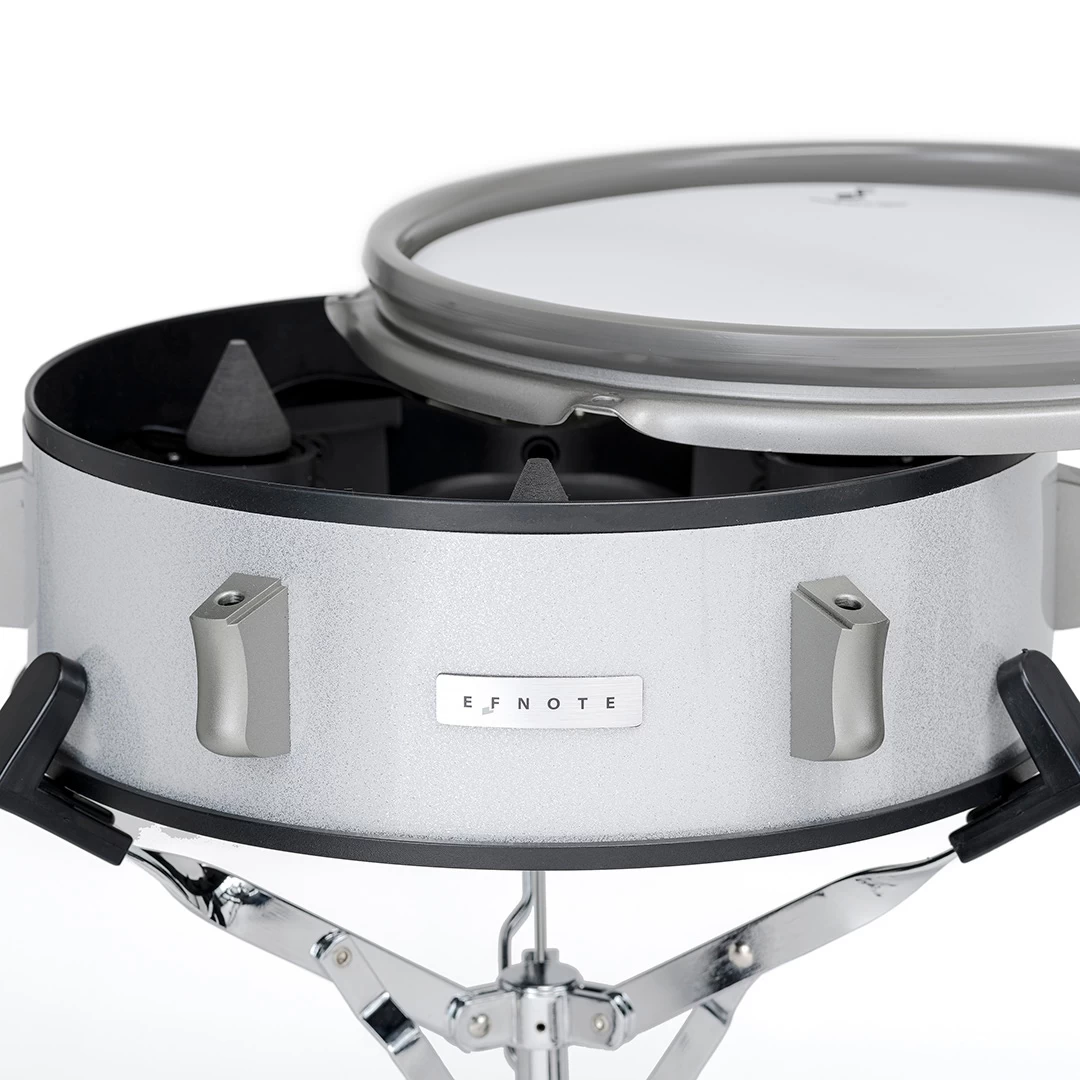

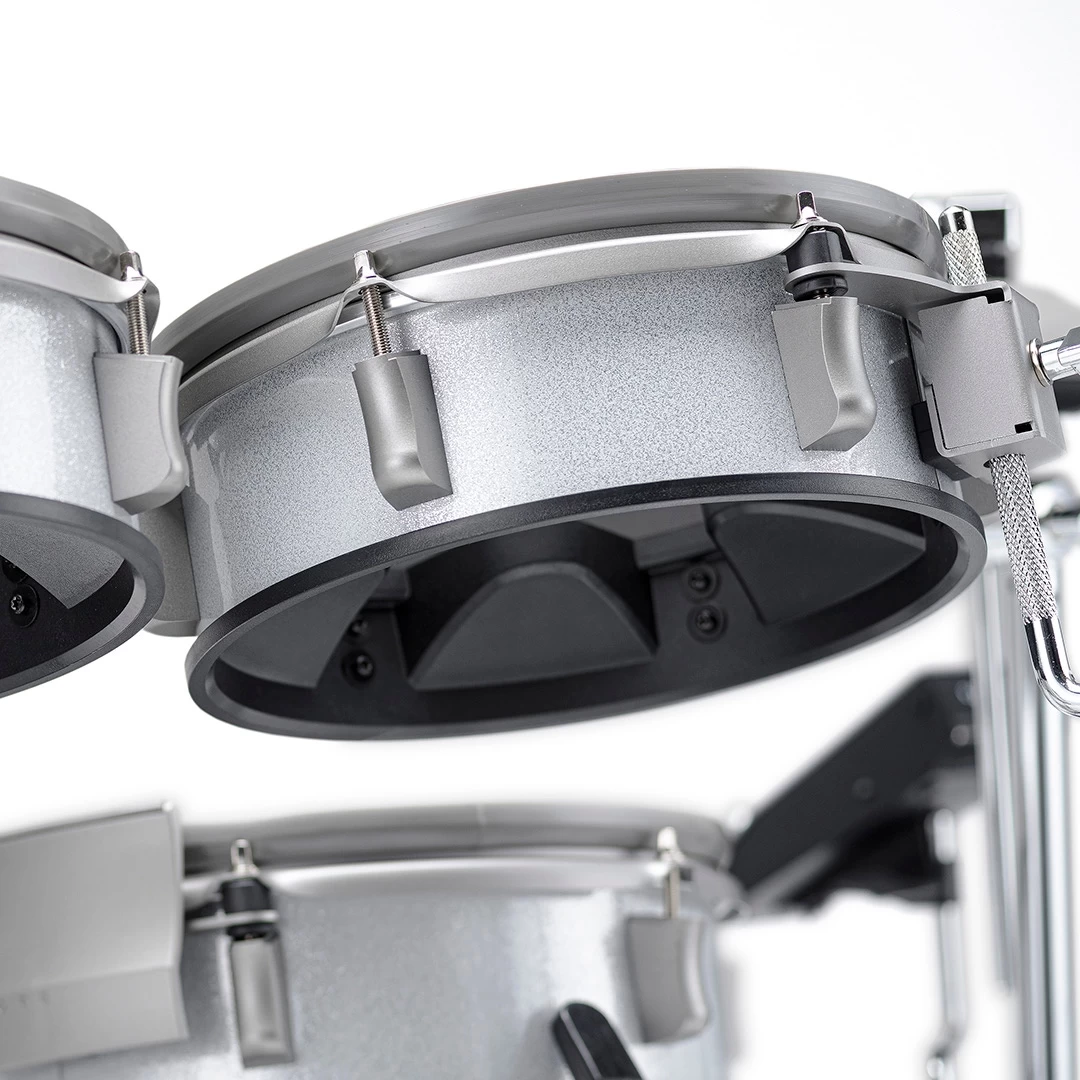

Monocoque Drum Shells

• Elegant sparkling finish
• Independent lug design
• Monocoque shell structure for stiffness and durability
• Hot-spot-less sensing with multi-sensor
• Colored hoop rubber
• Double-layered mesh drum head
• 2-zone (head/rim)
• 12″” Snare, 10″” Tom 1/2, 12″” Tom 3

Suspended Tom Mount

• Softer striking feel and less rebound
• Anti-crosstalk vibration

Snare Side-Rim

• Easy to play side-sticks
• Accurate sensing
• Low acoustic noise
• No need to switch function between rim-shot and side-sticks

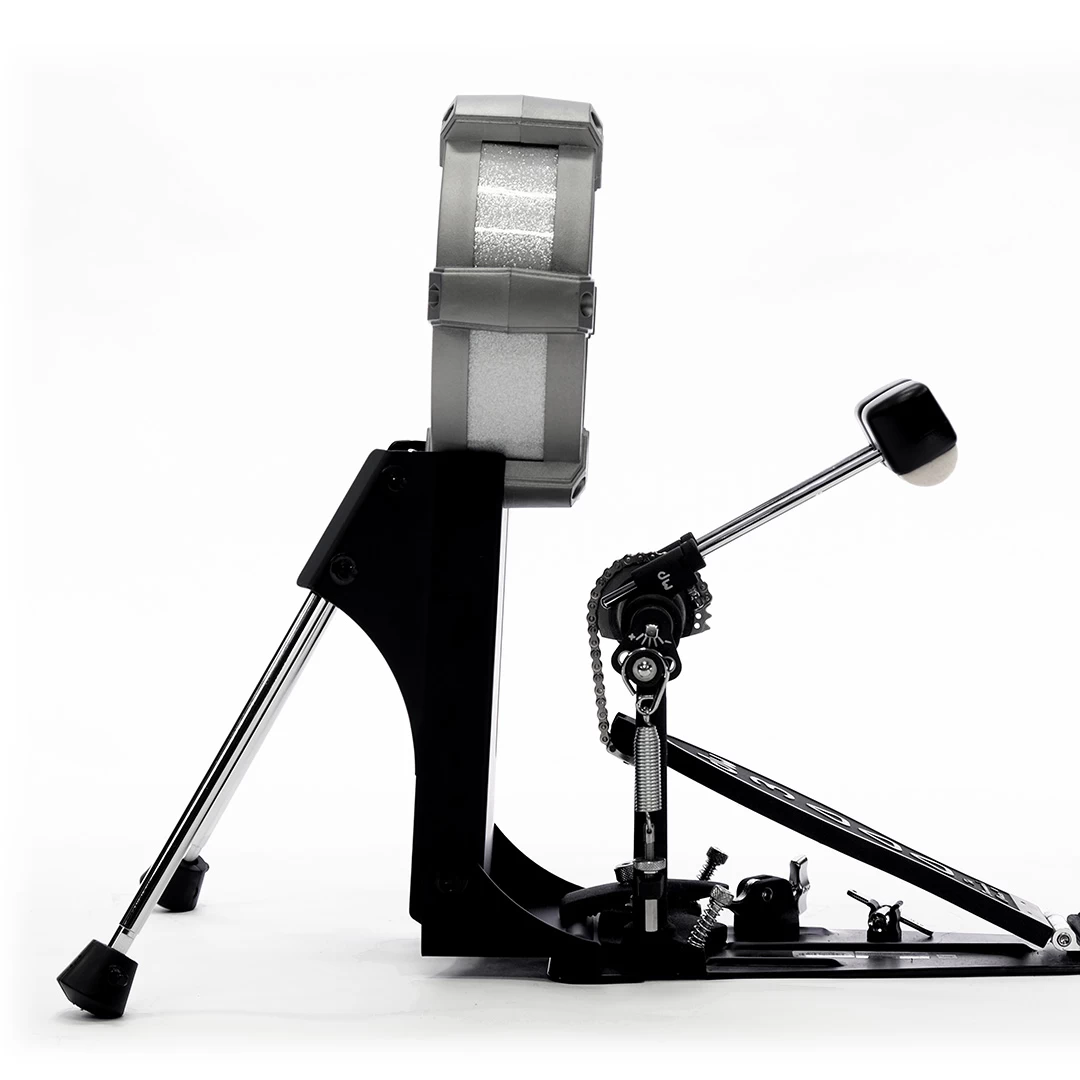

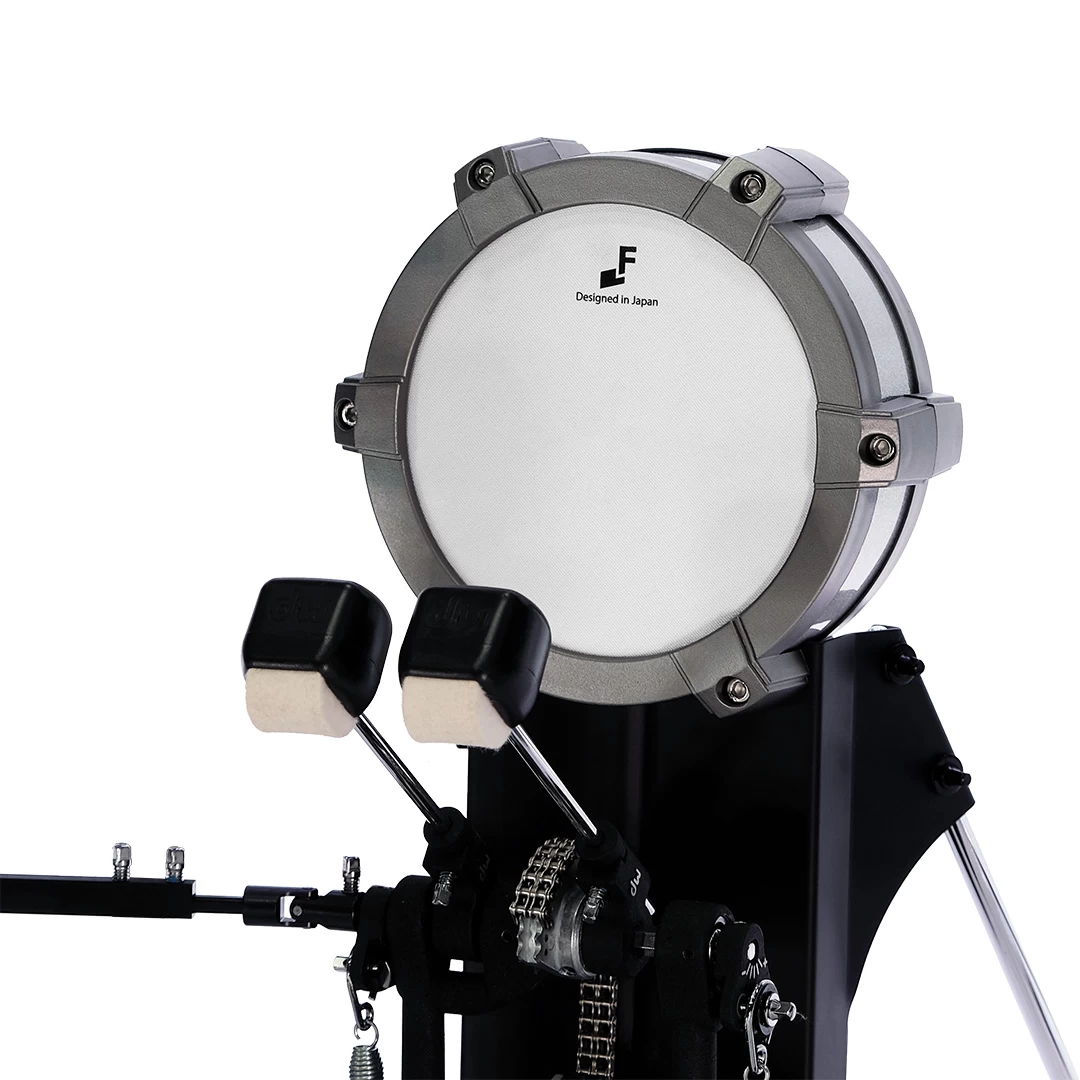

Comfy Strike-Feel Kick

• Elegant sparkling finish
• Comfy strike-feel fabric head
• Dual-sensor stable sensing for single/double beater(s)
• Angle-adjustable kick pedal attachment
• Rugged spars with rubber/spike tips

Tru-Motion™ Hi-Hat

• Inertia weight simulation technology provides ideal pedal feeling
• Precision optical sensing perfectly responds to drummer’s high-speed footwork
• Open-close stroke gap and spring tension adjustment
• Smooth continuity from tight-closed to full-open sound

λ (Lambda) Tripods

• Advanced design
• Easy and flexible setup
• Perfect stability

* Design registered

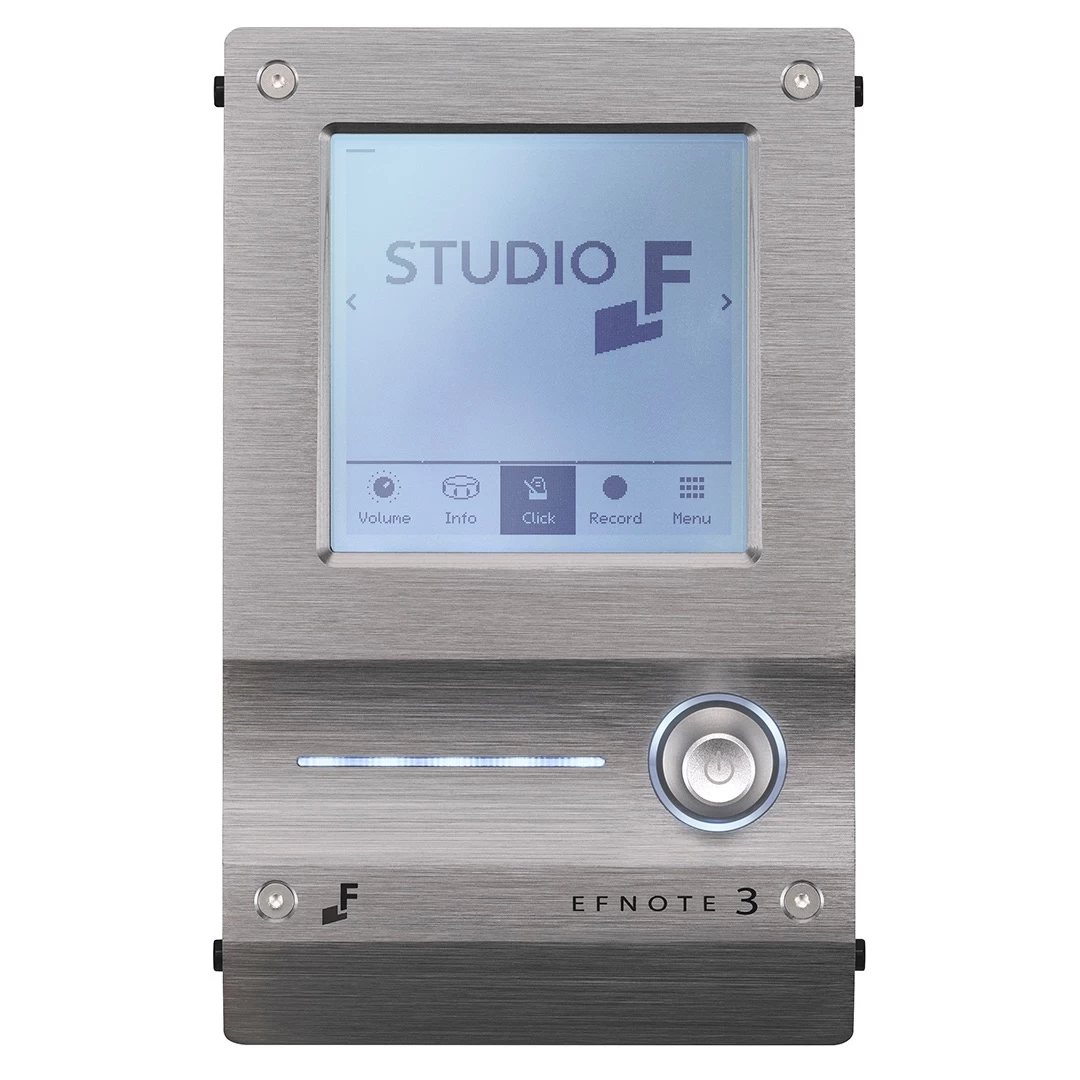

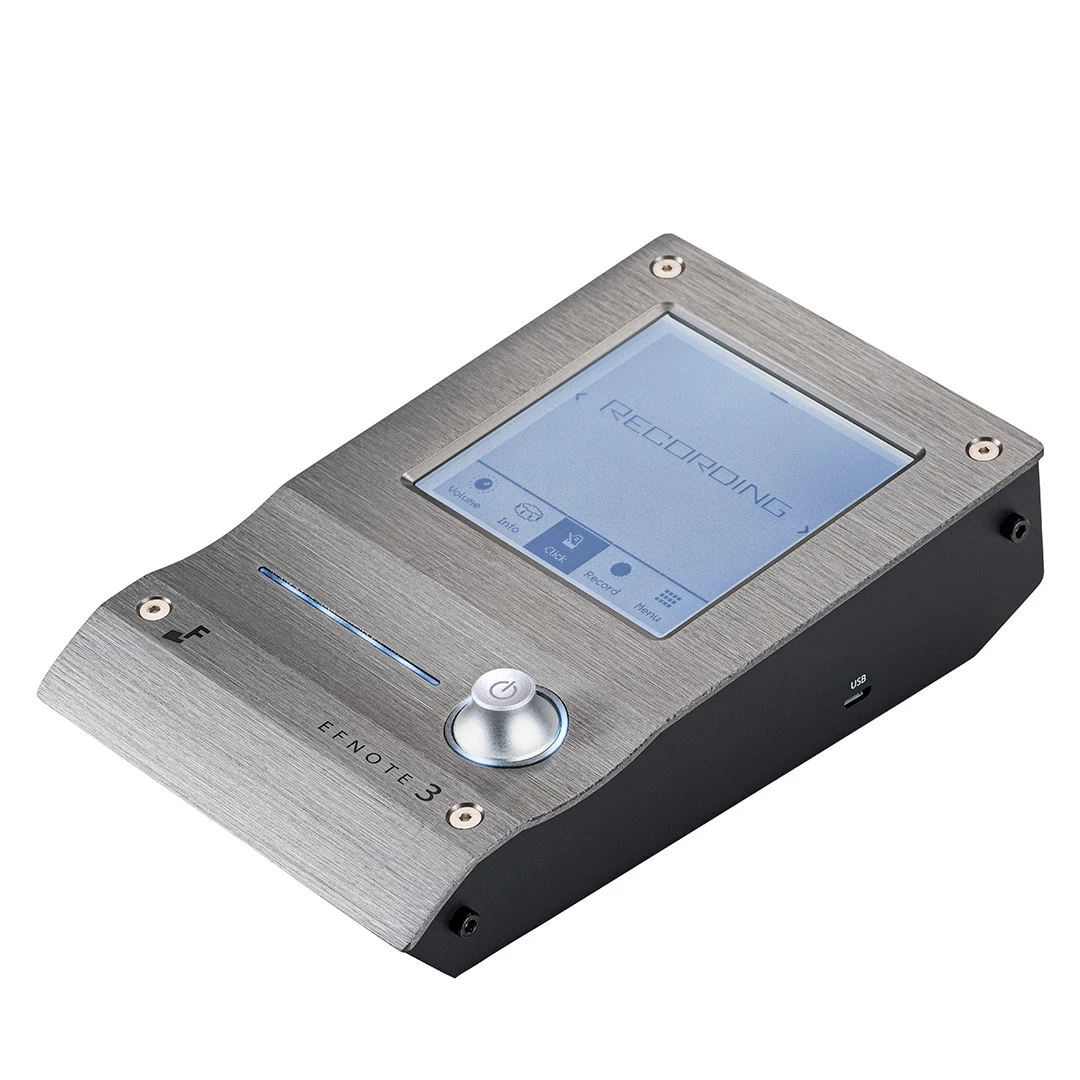

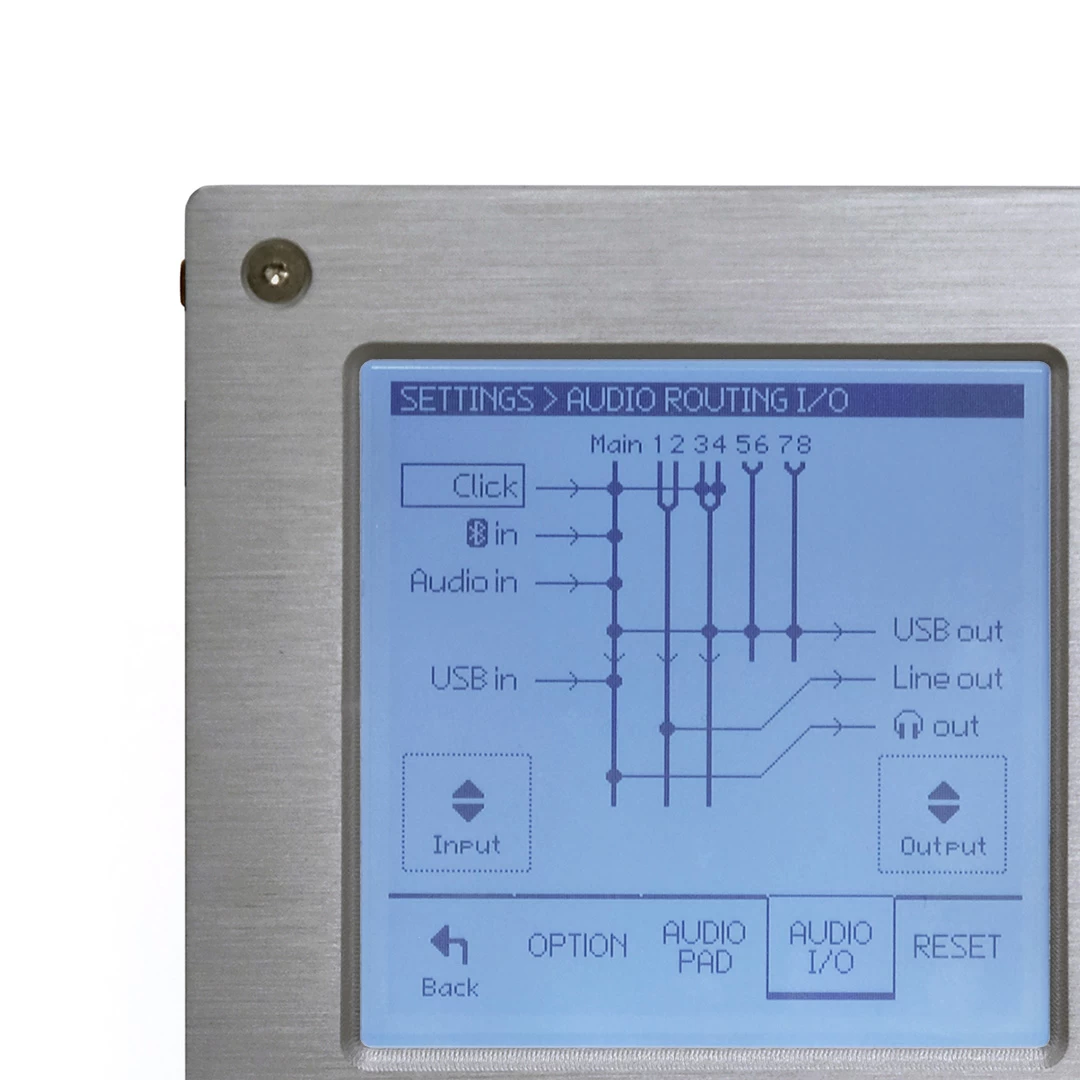

Ultra-Compact Sound Module

• Ultra-small form factor with uncompromised features
• Metal chassis and aluminum finish
• High quality DAC and audio circuit

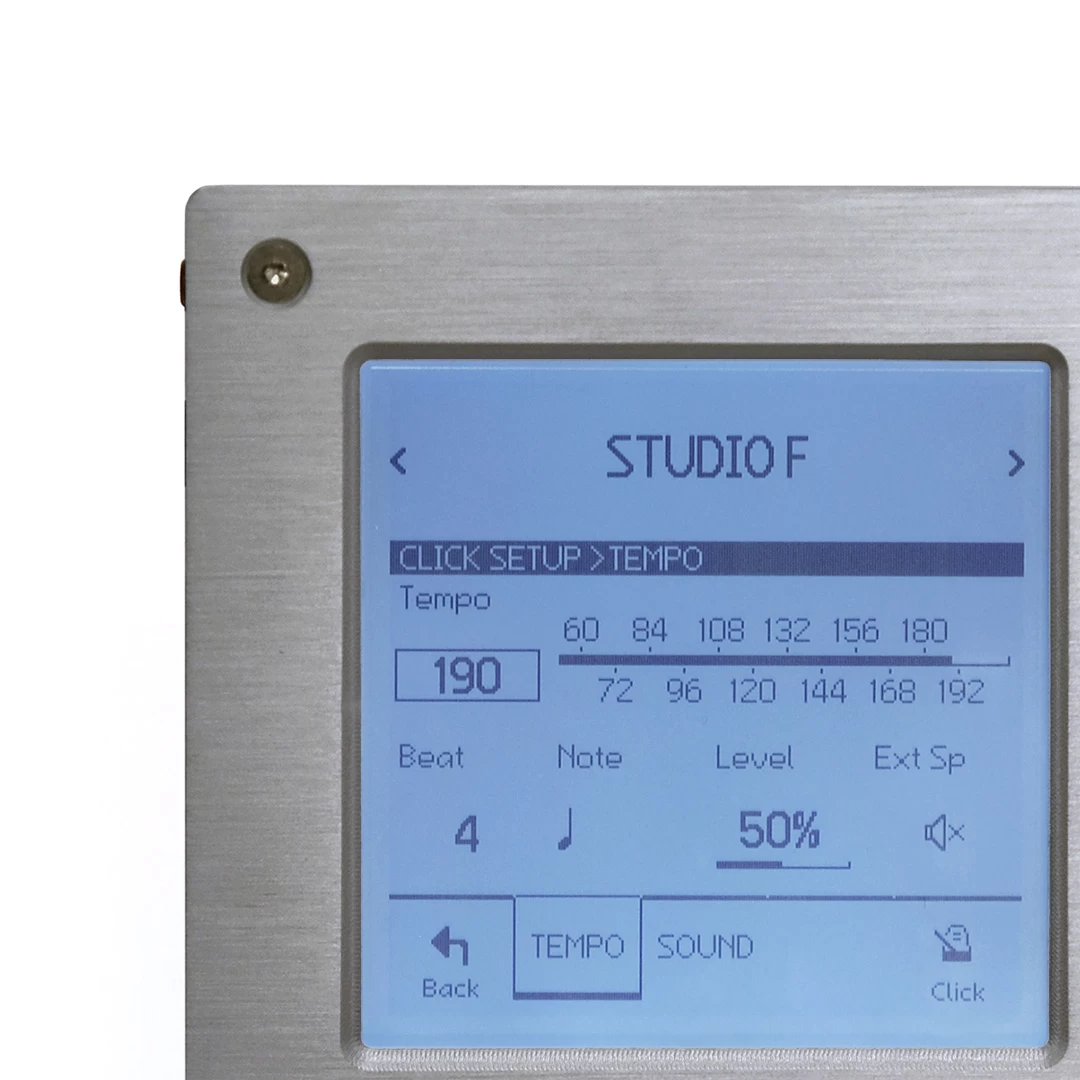

• Touch screen intuitive user interface

Full-Scale Acoustic Sound

• Tru-Aco™ sound technology provides so real drum/cymbal sound
• Stereo samples with wide dynamic range for all acoustic instruments
• Minimum pre-processed, uncompressed waveforms for maximum fidelity
• Natural and smooth continuity roll sounds

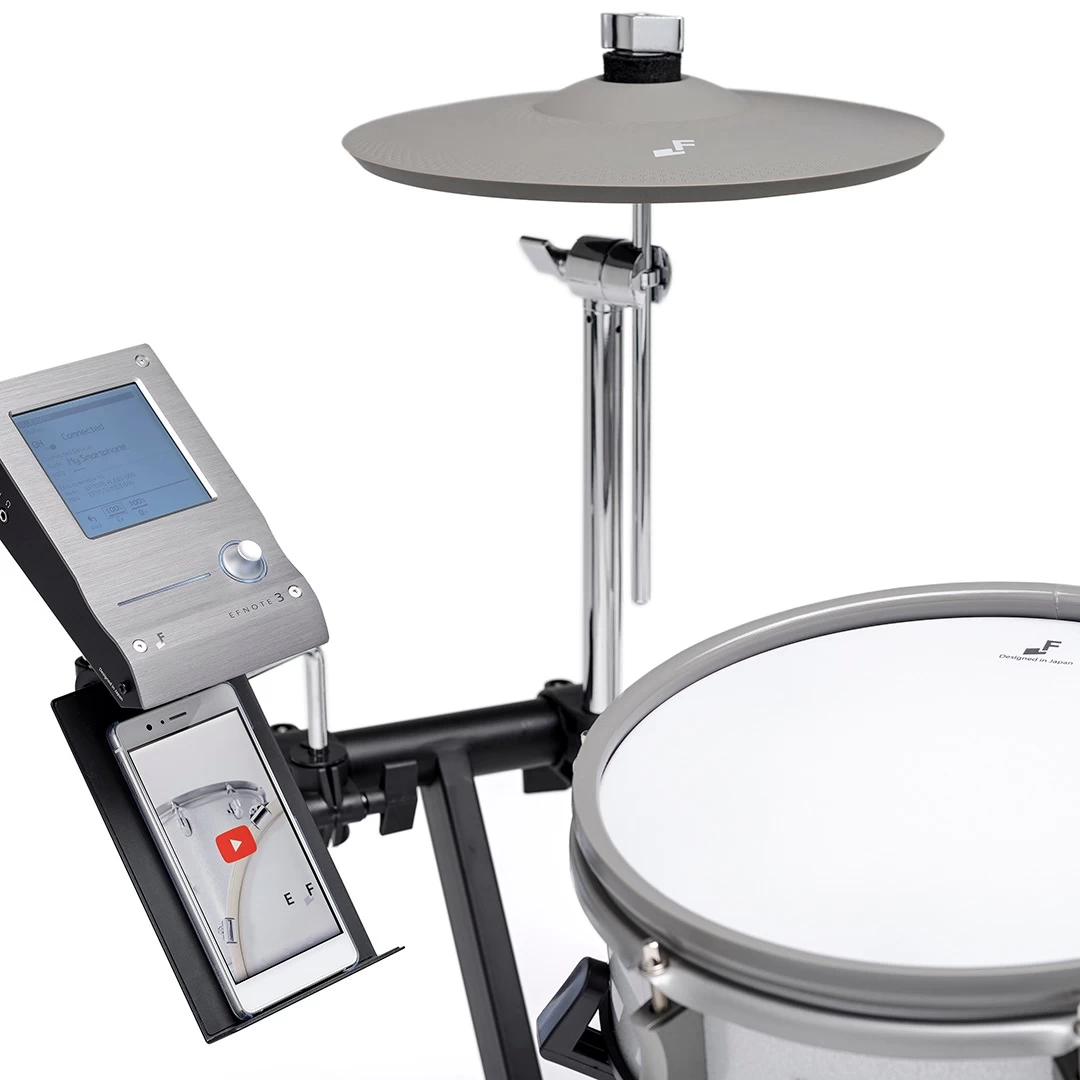

Bluetooth®

• Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
• Bluetooth MIDI

Specifications

Drum / Cymbal Pads

• Kick EFD-K08P
• Size: 8 x 3″”
• Zone: Head
• Sensor: Multi
• Head: Comfy strike-feel fabric
• Connector: Head (TRS Phones)
• Features: Angle-adjustable kick pedal attachment

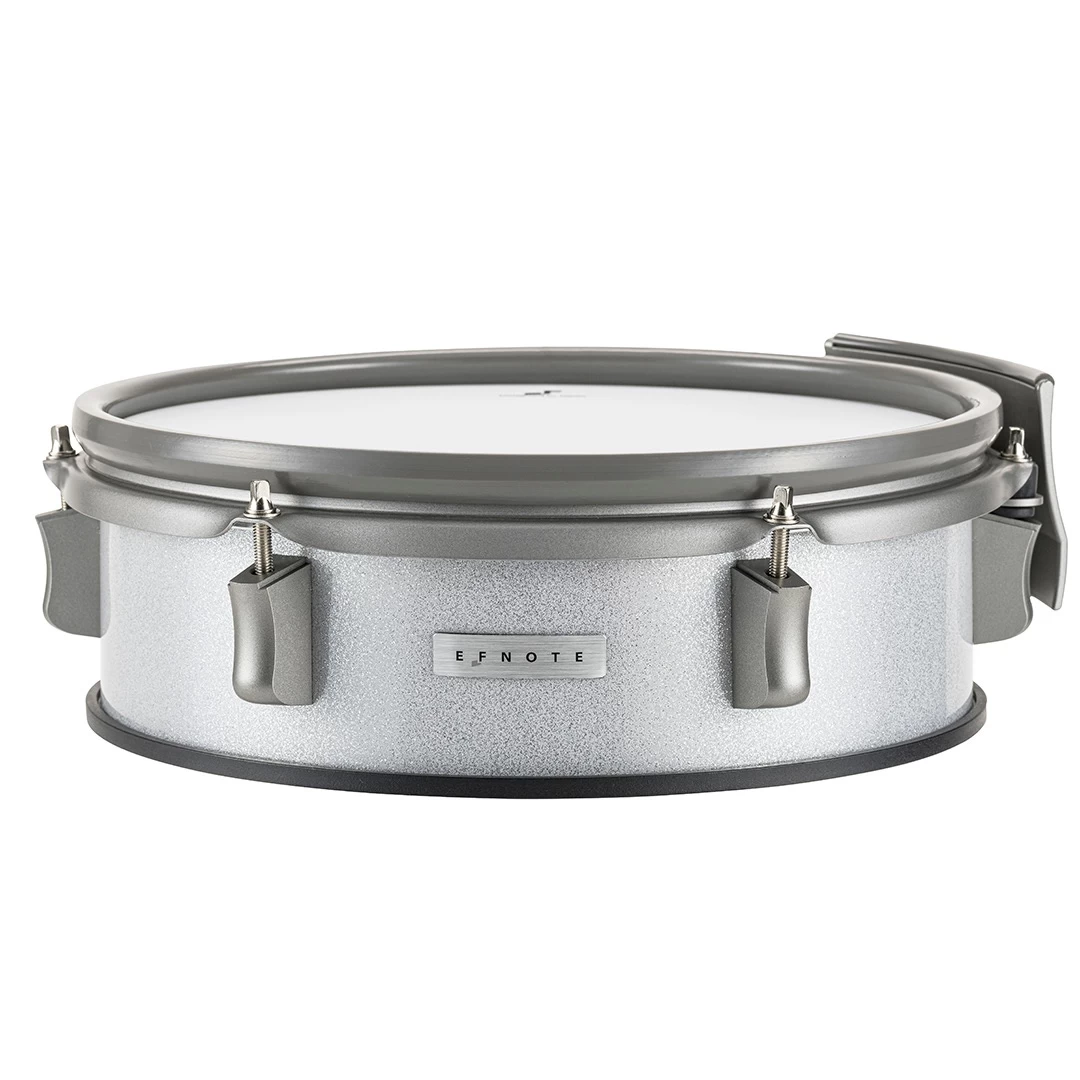

• Snare EFD-S12P
• Size: 12 x 4″”
• Zone: Head / Rim / Side-Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim, Side-Rim (2x TRS Phones)
• Features: Monocoque drum shell, Colored hoop rubber, Side-Rim
• Tom 1 / 2 EFD-T10P
• Size: 10 x 3.5″”
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Monocoque drum shell, Colored hoop rubber, Suspended tom mount
• Tom 3 EFD-T12P
• Size: 12 x 4″”
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Monocoque drum shell, Colored hoop rubber, Suspended tom mount
• Hi-Hat EFD-C12
• Size: 12″” (Single cymbal)
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface
• EFNOTE 3 sound module does not support hi-hat cup zone.
• Hi-Hat Pedal EFD-HC3
• Sensor: Optical
• Adjustment: Spring tension, Open-Close stroke gap
• Connector: 6-pin
• Features: Inertia weight simulation, Tru-motion™ hi-hat
• Crash 1 / 2 EFD-C14
• Size: 14″”
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface
• Ride EFD-C16
• Size: 16″”
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface

Sound Module: EFD-3

• Trigger Interface
• 3-Zone: Snare, Crash 1/2*, Ride
• 2-Zone: Tom 1/2/3/4, HH, Crash 3
• 1-Zone: Kick
• Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.

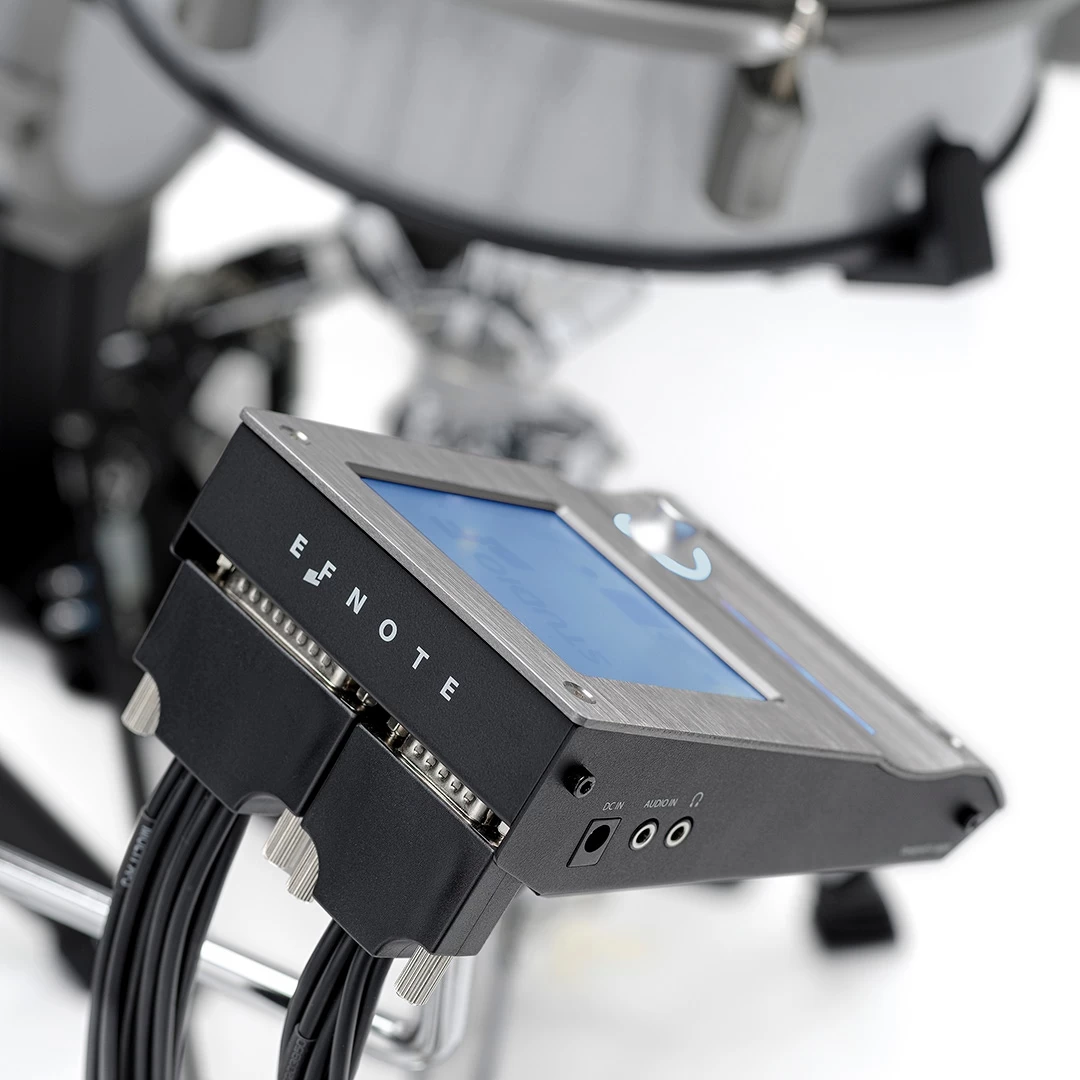

• Audio / MIDI Interface
• Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
• Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
• Audio Input: Stereo Mini-Phone (+2dBu Max)
• USB Audio: 8-ch Output / 2-ch Input (Mac/Windows ASIO)
• USB MIDI In/Out
• Bluetooth Audio Input
• Bluetooth MIDI In/Out
• MIDI Out: 5-pin DIN
• Drum Kits / Instruments
• Preset Drum Kits: 16 (Editable)
• User Drum Kits: 34
• Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), eKick/eSnare, Attack Elements
• User Inst Library: 50 (Can be stored customized instruments)
• Edit Parameters
• Level, Pan, Tuning, Muffling (for each pad)
• 2-Band EQ (for each pad)
• Ambience Effect (8 Types)
• Pad Layer
• Dimensions
• 172 (W) x 106 (D) x 47 (H) mm
• 700g
• Excluding protrusions
• Power: DC 12V, 500mA (Nominal) / 800mA (Max)

Tripods / Stands

• Tripods
• 4x Lambda Tripod
• Snare Drum Stand
• For 12″” to 14″” diameter snare drums
• Geared basket tilter
• Double braced legs
• Tube diameter: φ19.1 mm (3/4″”)
• Height adjustment range: 500 — 650 mm
• Tom Holder
• 3x Tom Holder Arm
• Geared L-rod tilter
• Knurled carbon steel rod
• L-rod diameter: φ11.5 mm (7/16″”)
• Tube diameter: φ22.2 mm (7/8″”)
• Height adjustment range: 550 — 900 mm
• Hi-Hat Cymbal Arm
• 1x Boom Hi-Hat Cymbal Arm
• Cable holder
• Tube diameter: φ22.2 mm (7/8″”)
• Boom length: 250 mm
• Height adjustment range: 550 — 1000 mm
• Cymbal Arm
• 3x Boom Cymbal Arm
• Gearless tilter
• Cable holder
• Tube diameter: φ22.2 mm (7/8″”)
• Boom length: 300 mm
• Height adjustment range: 650 — 1250 mm

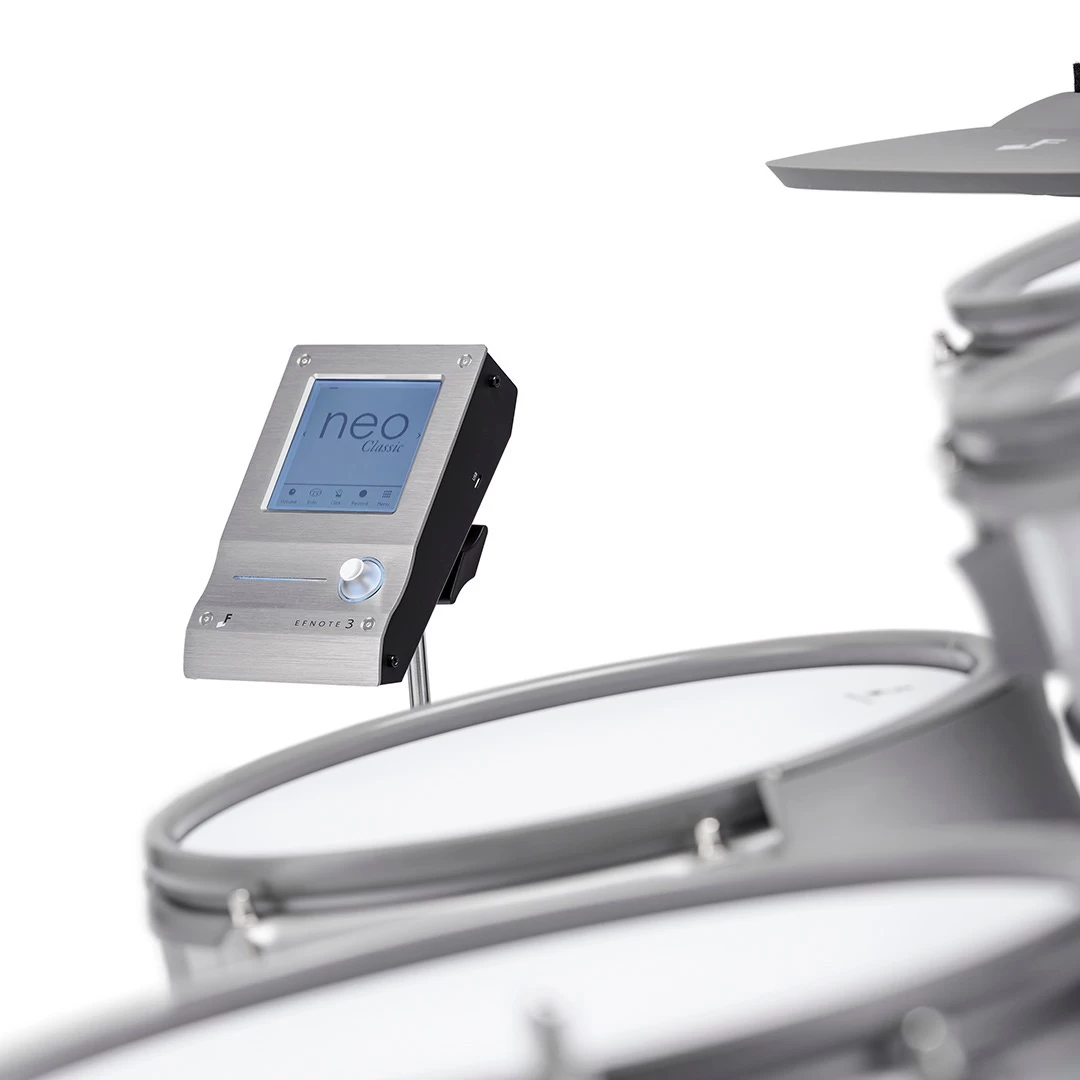

• Sound Module Arm
• 1x Sound Module Arm
• 1x Smartphone Tray

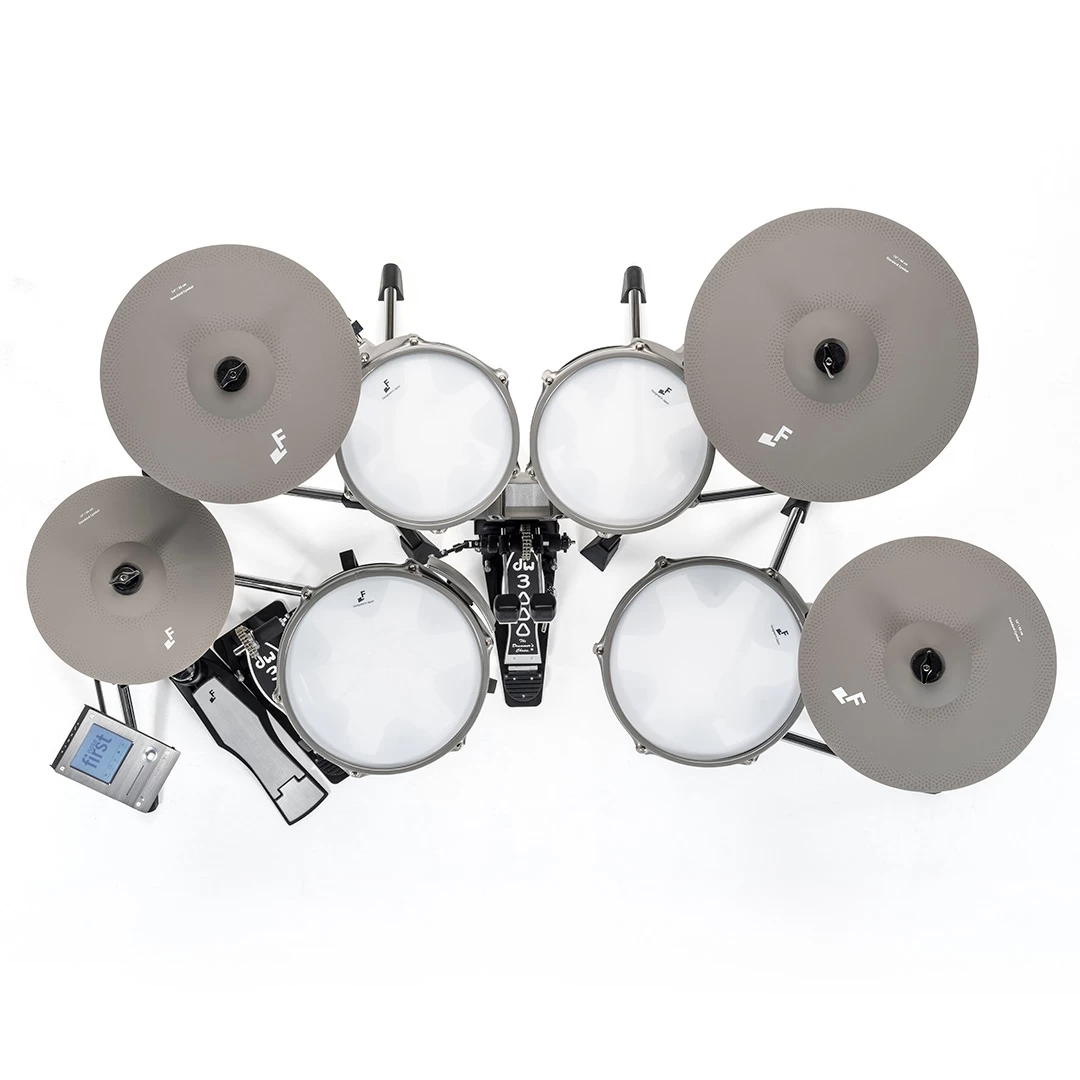

Drum Kit Placement

• Placement Size
• Approx. 160 (W) x 90 (D) cm
• Approx. 5.3 (W) x 3.0 (D) feet
• Without drum throne

Package

• Accessories
• Brake-Out Cable: EFD-MULTI-A3
• Brake-Out Cable: EFD-MULTI-B
• 4x Trigger Cable 3.0 m: EFD-TRS-LL3
• Cable Ties
• Quickstart Guide
• Kick pedal, drum throne sold separately.
