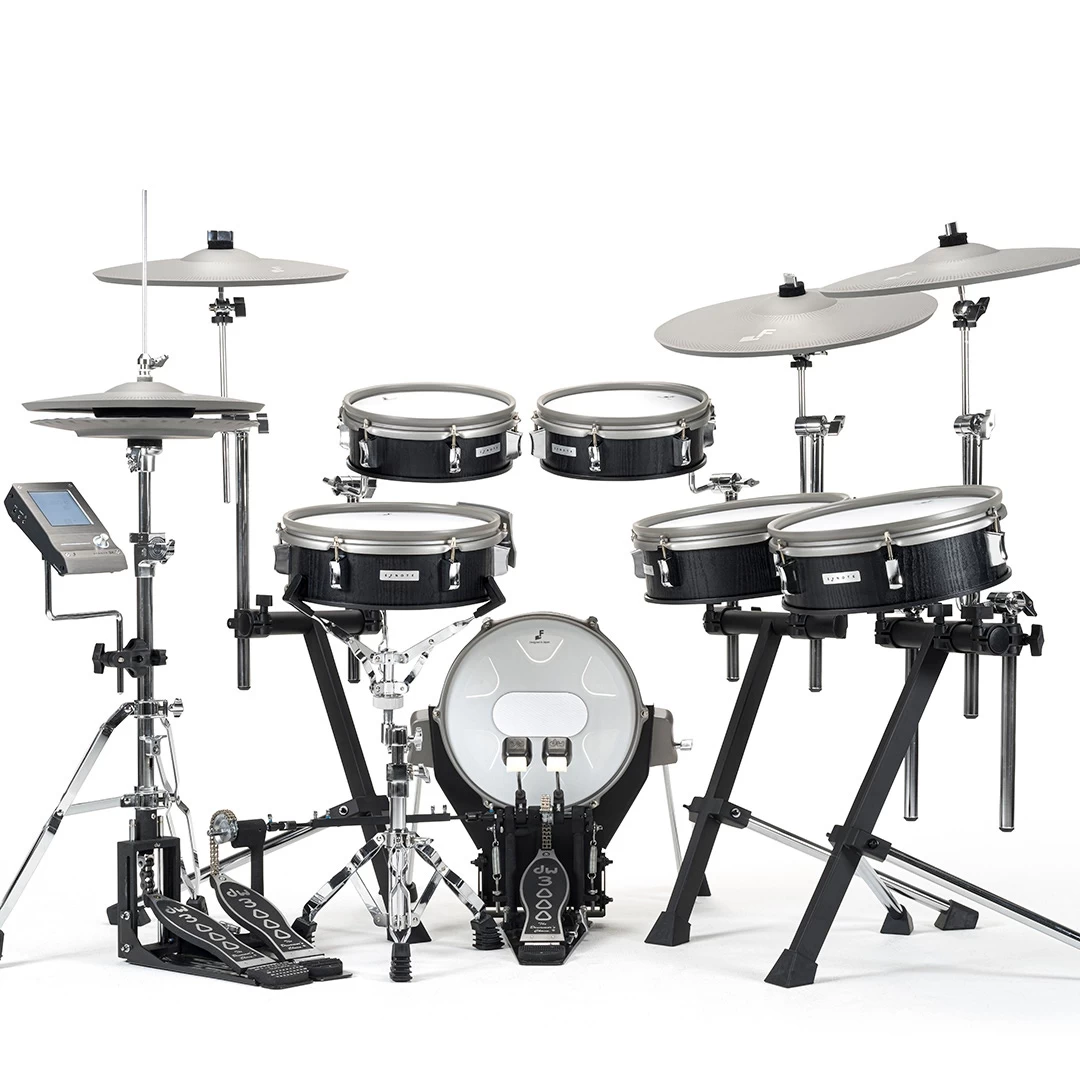

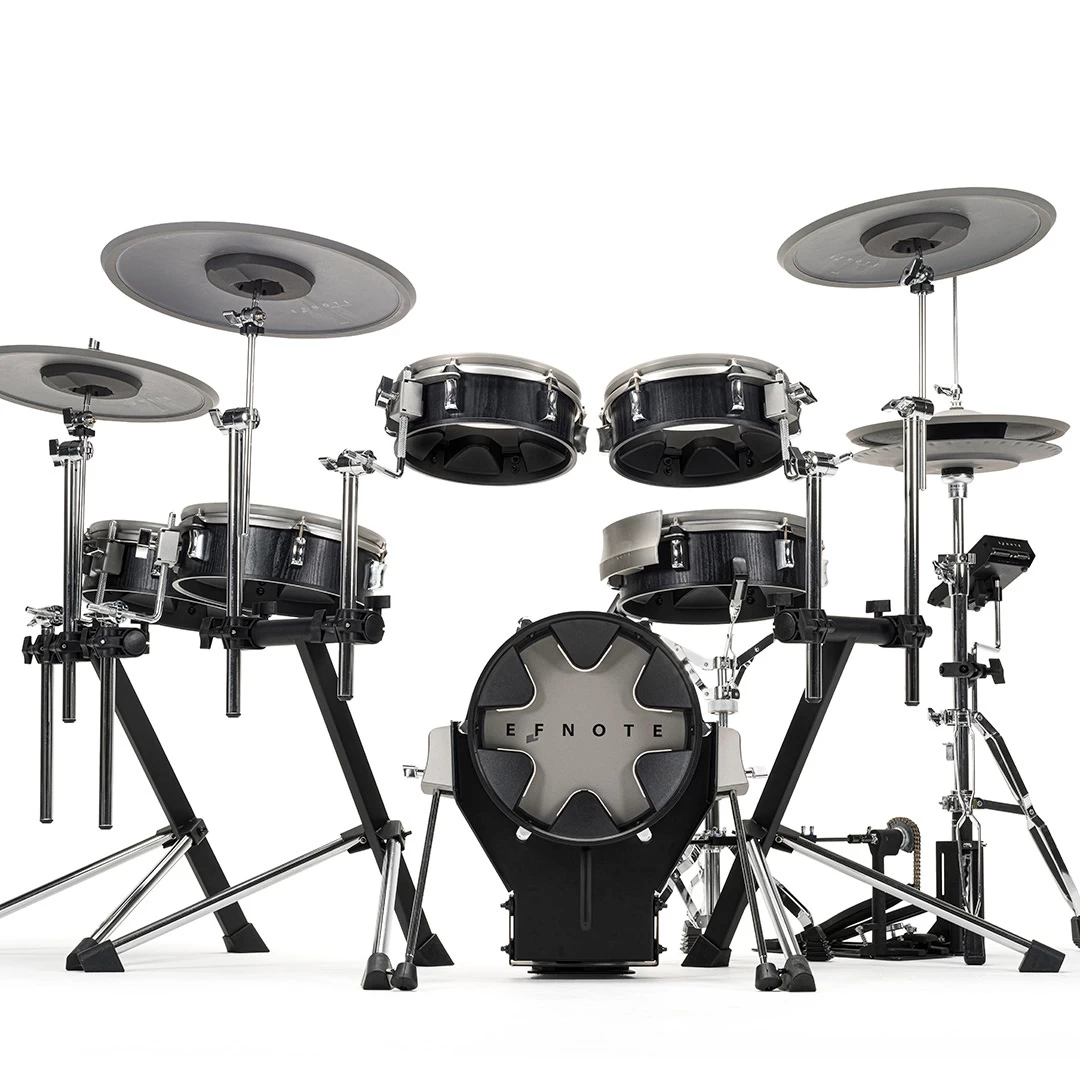

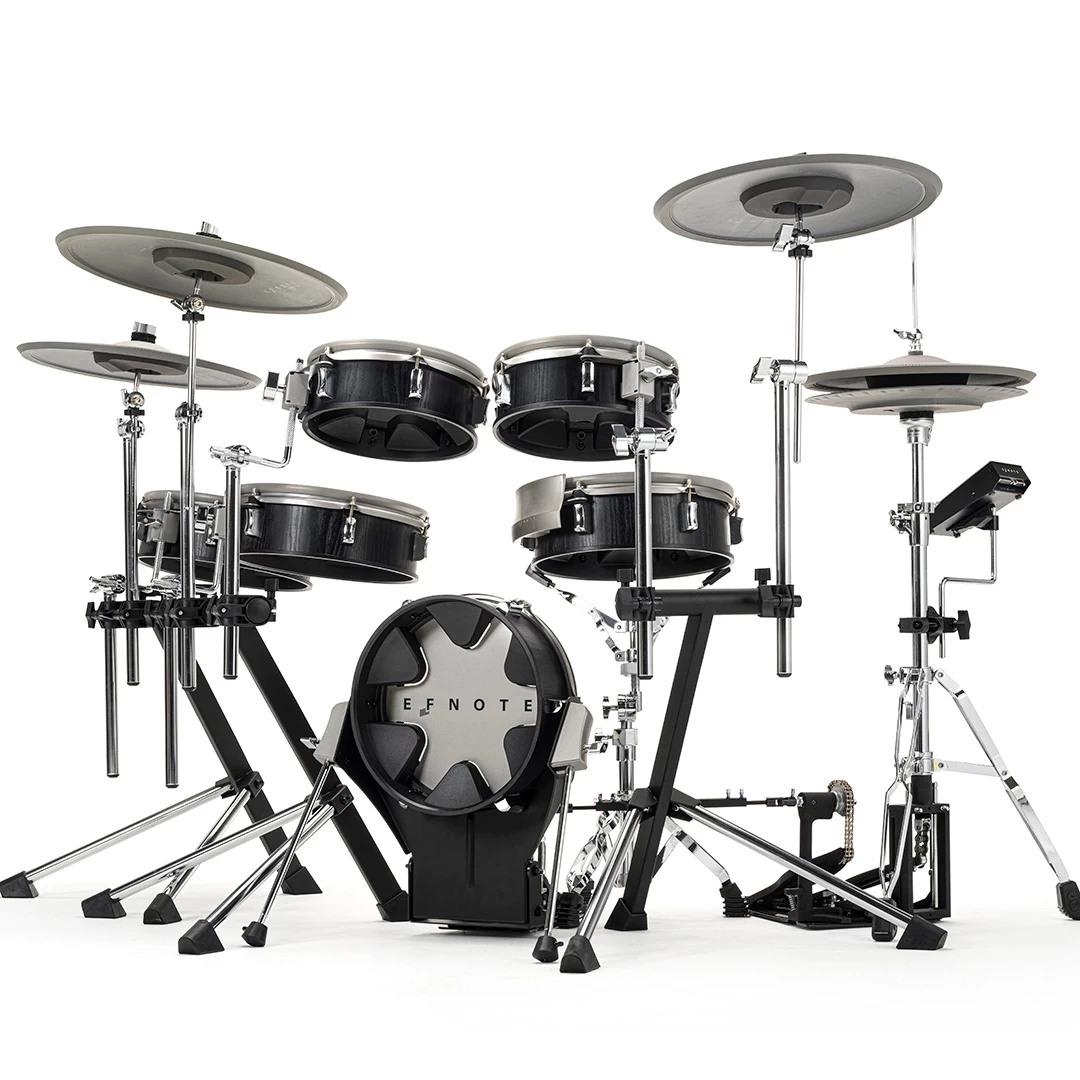

EFNOTE 3X 10-Piece Compact Electronic Drum Set W/ 3x Lambda Tripod Stands

Manufacturer’s Description

*Hi-hat stand and kick pedal sold separately

*This drum set ships directly from EFNOTE to your door, please allow 24-72 hours extra processing time.

The EFNOTE 3X is expanded for the ultimate performance:

• Playability with the real hi-hat, the bigger cymbals and the high-sensitivity drum pads
• Adaptability for various musical genres
• Presence for stage/live-streaming use

6-Piece Drum Pads, 4-Piece Cymbals

• 12″” snare pad and 12″” kick pad
• 2x 12″” tom pad + 2x 10″” tom pad
• 14″” real 2-piece hi-hat cymbals
• 2x 16″” crash cymbal and 18″” ride cymbal

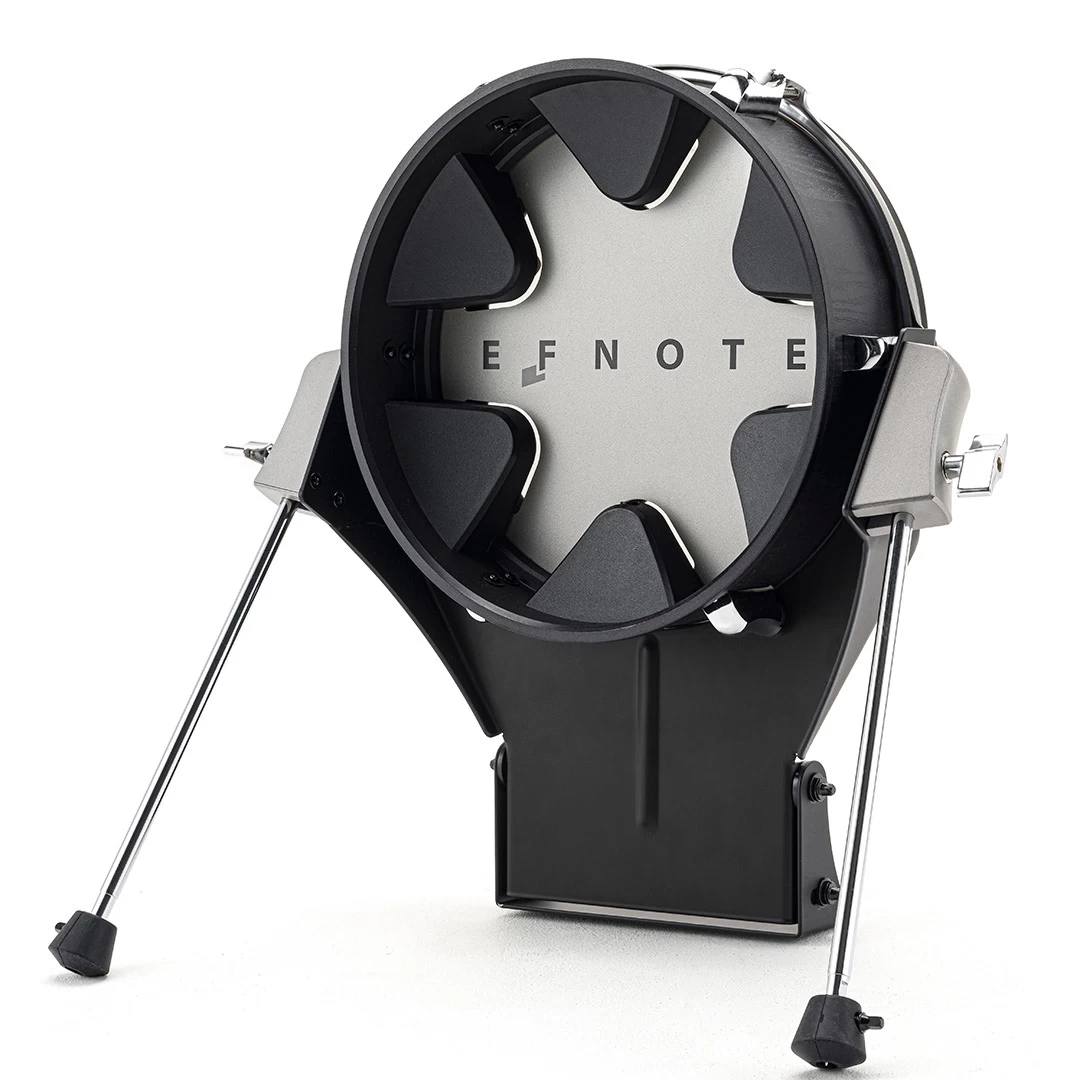

Solid and Stable Kick Pad

• Three-dimensional design with a strong presence
• Elegant matte black finish
• Independent lug design
• Low-rebound 12″” mesh drum head
• Dual-sensor stable sensing for single/double beater(s)
• Angle-adjustable kick pedal attachment
• Rugged spars with rubber/spike tips

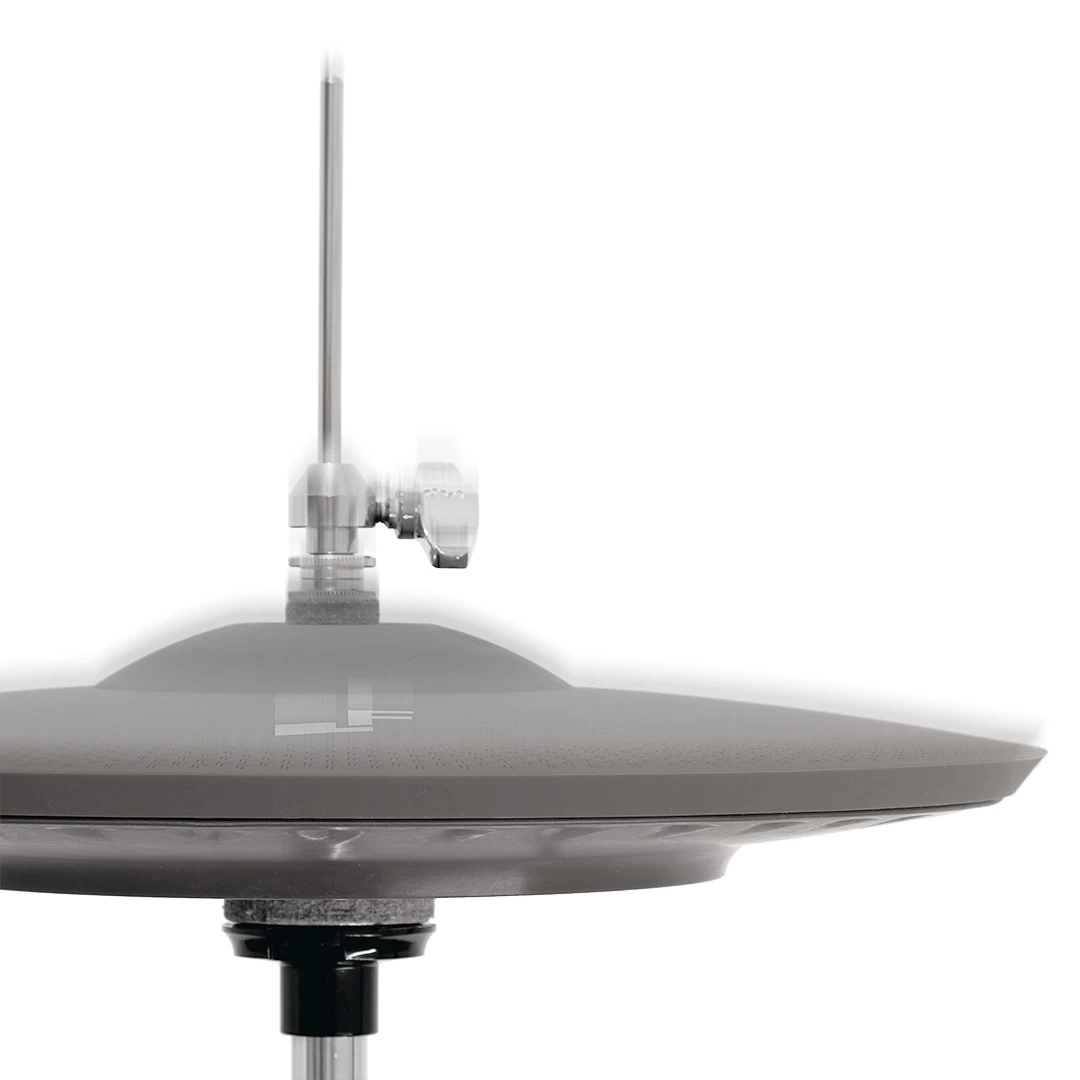

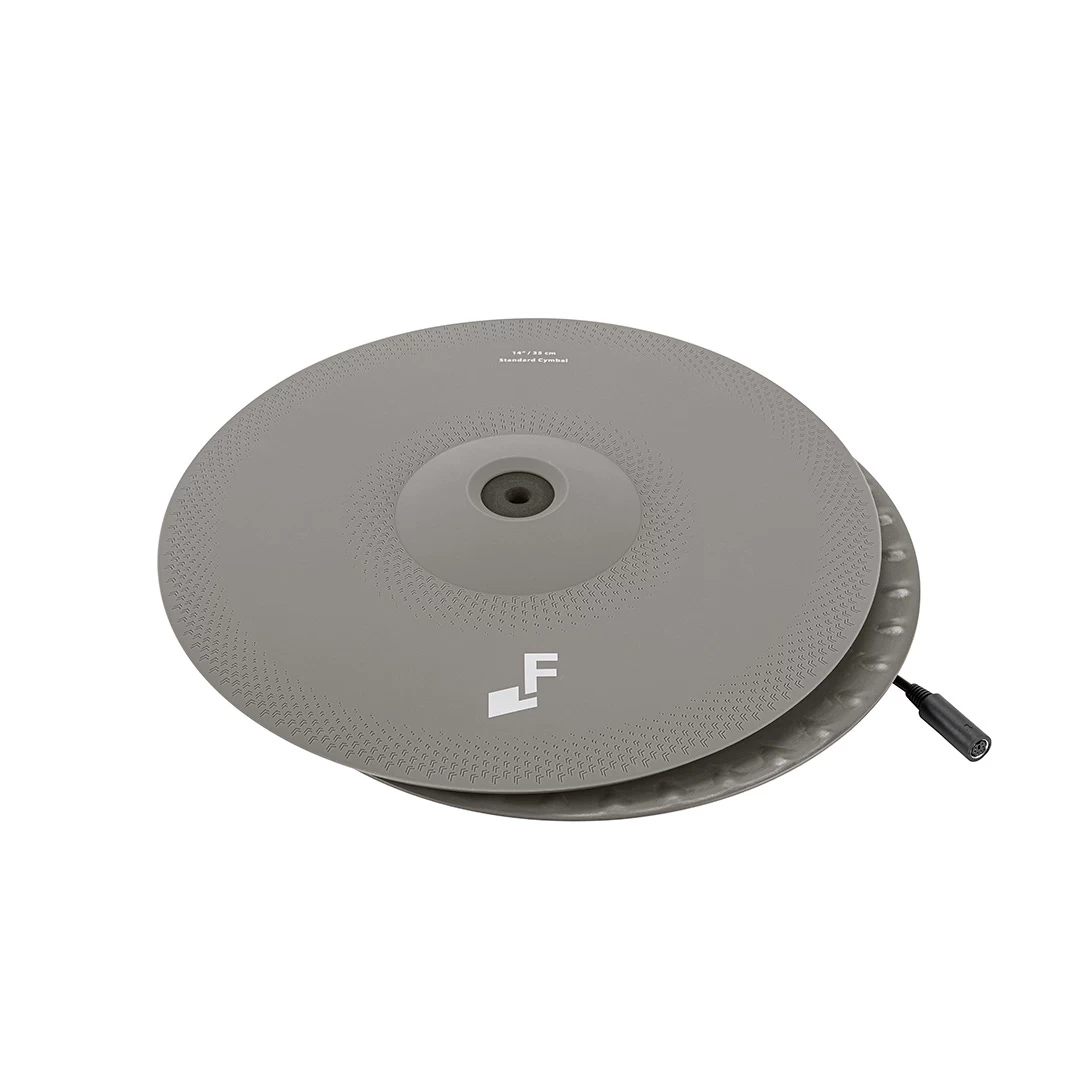

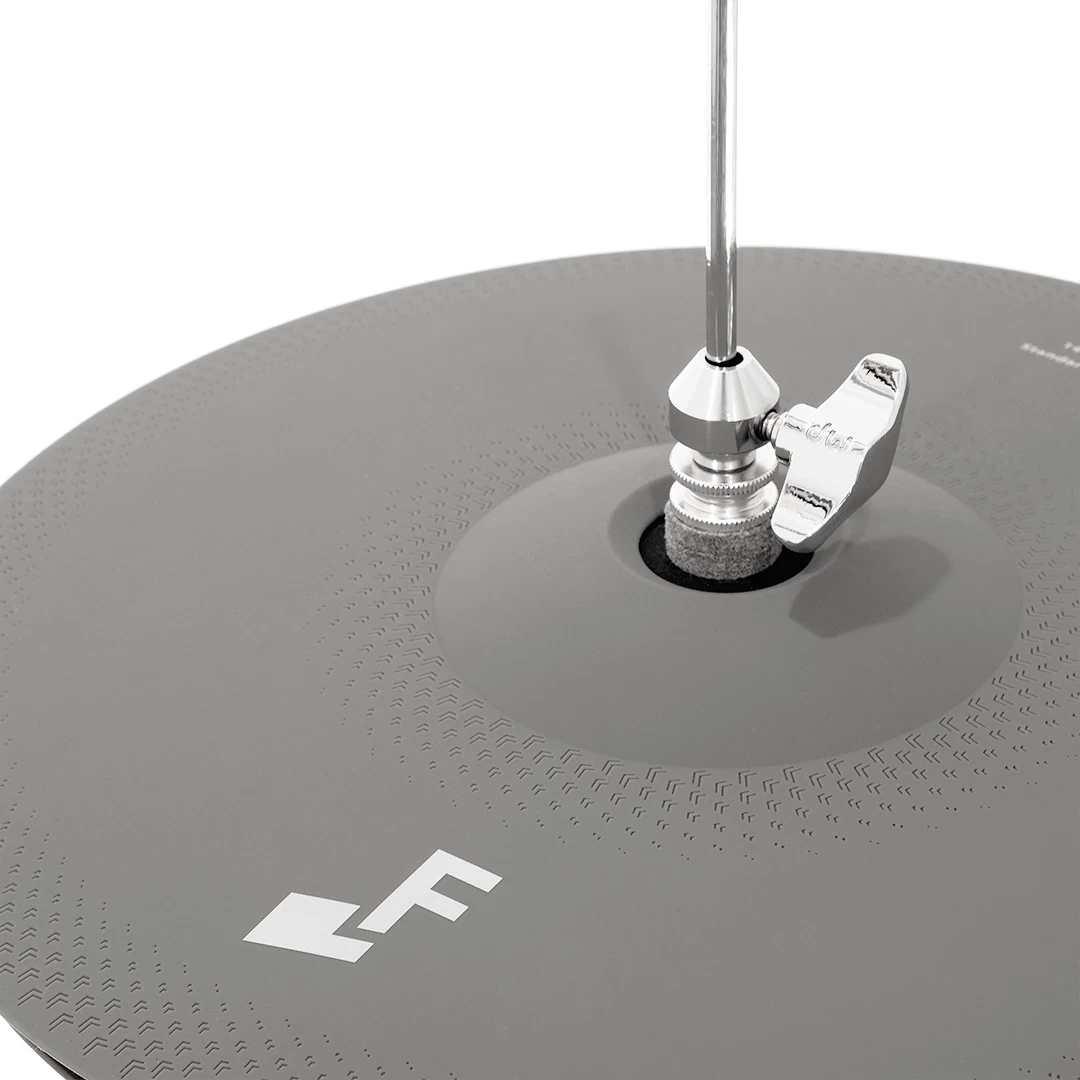

The Finest Hi-Hat Cymbals

• The freely swinging top and bottom cymbals have changed the concept of electronic hi-hat cymbals
• The multiple optical sensing precisely responds to drummer’s high-speed footwork
• Smooth continuity from tight-closed to full-open sound
• 14″” top/bottom cymbals
• General hi-hat stands compatible with φ12.7 mm (1/2″”) hole cymbal can be used

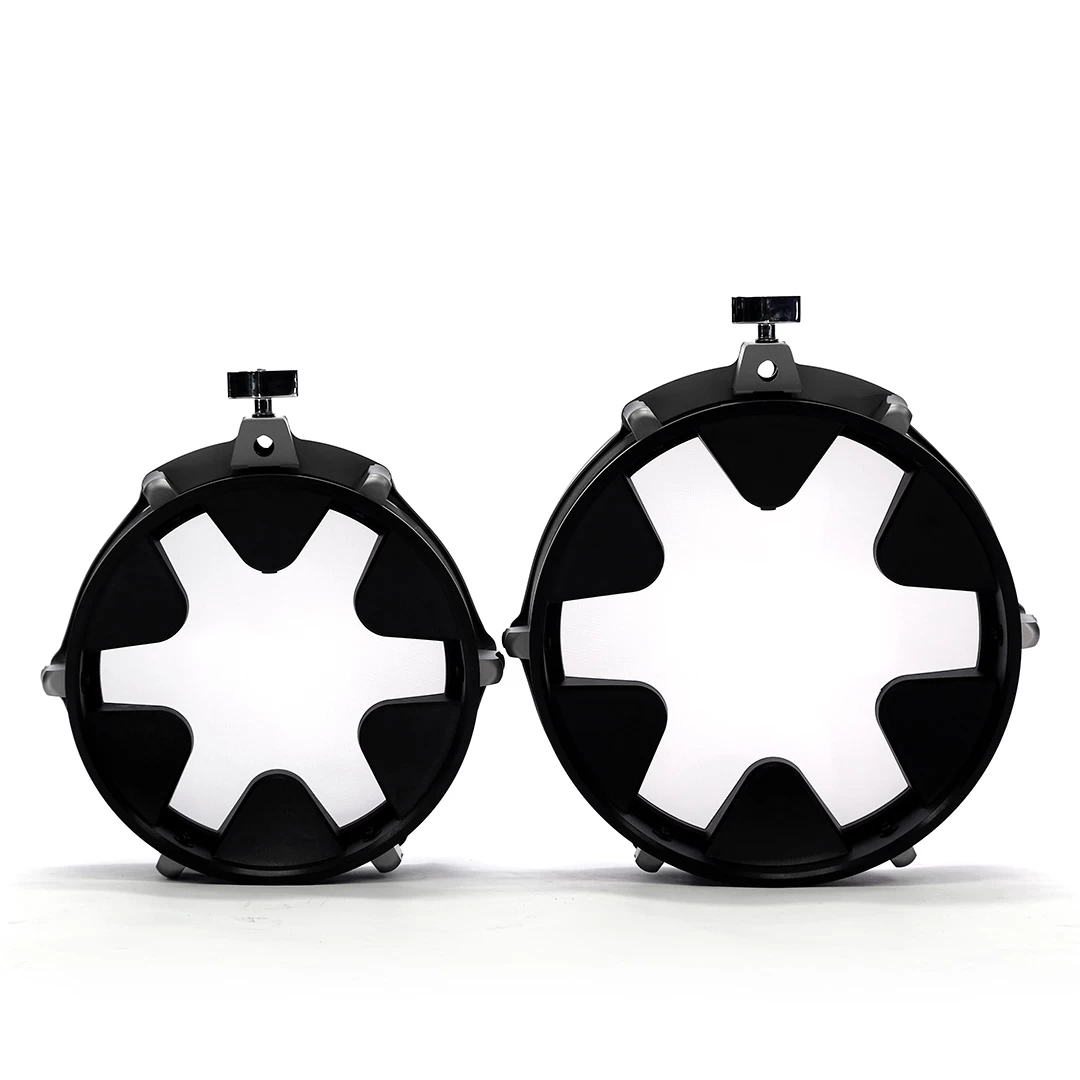

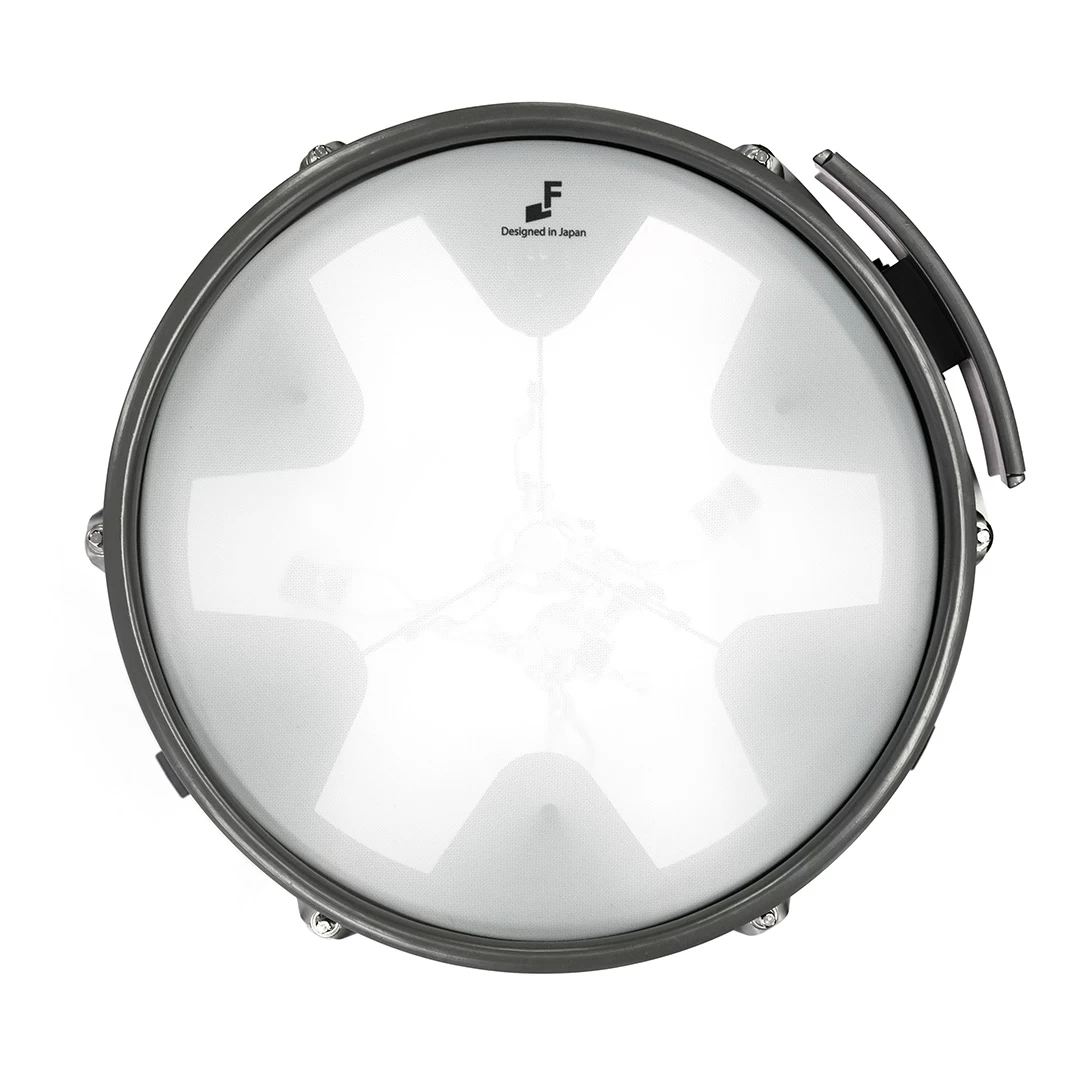

Monocoque Drum Shells

• Elegant matte black finish
• Independent lug design
• Monocoque shell structure for stiffness and durability
• Hot-spot-less sensing with multi-sensor
• Suspended tom mount
• Colored hoop rubber
• Double-layered mesh drum head
• 2-zone (head/rim)
• 12″” Snare, 10″” Tom 1/2, 12″” Tom 3

Snare Side-Rim

• Easy to play side-sticks
• Accurate sensing
• Low acoustic noise
• No need to switch a function between rim-shot and side-sticks

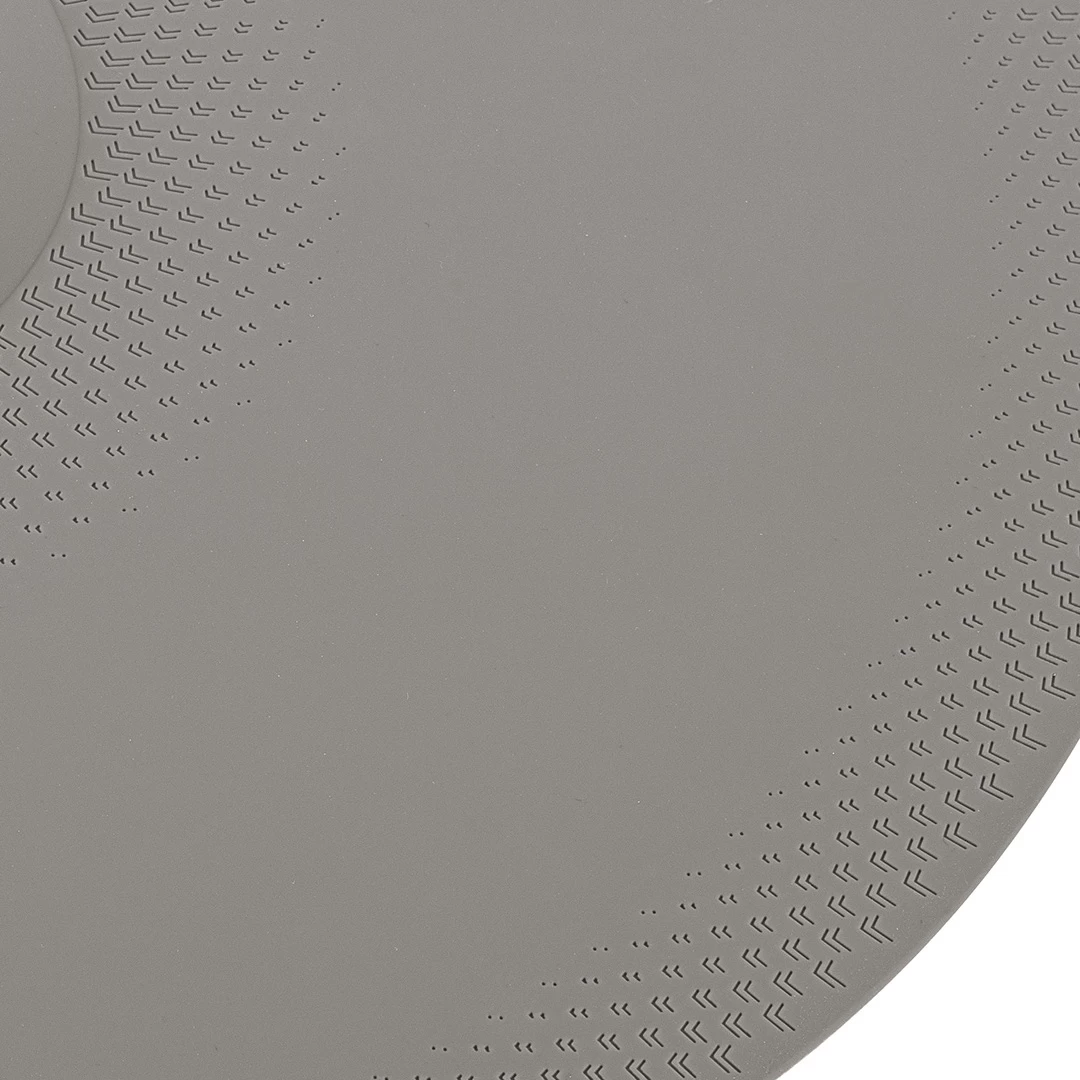

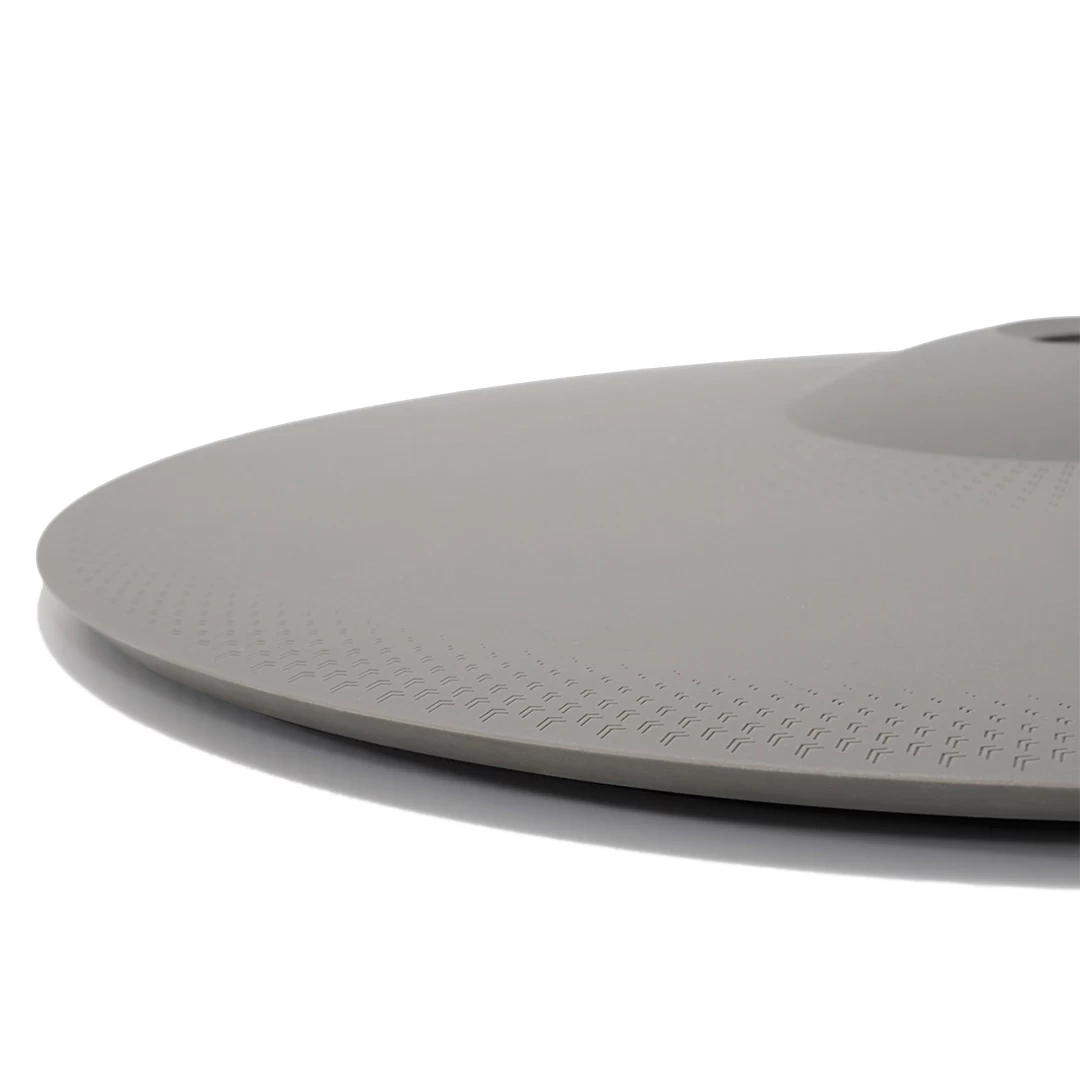

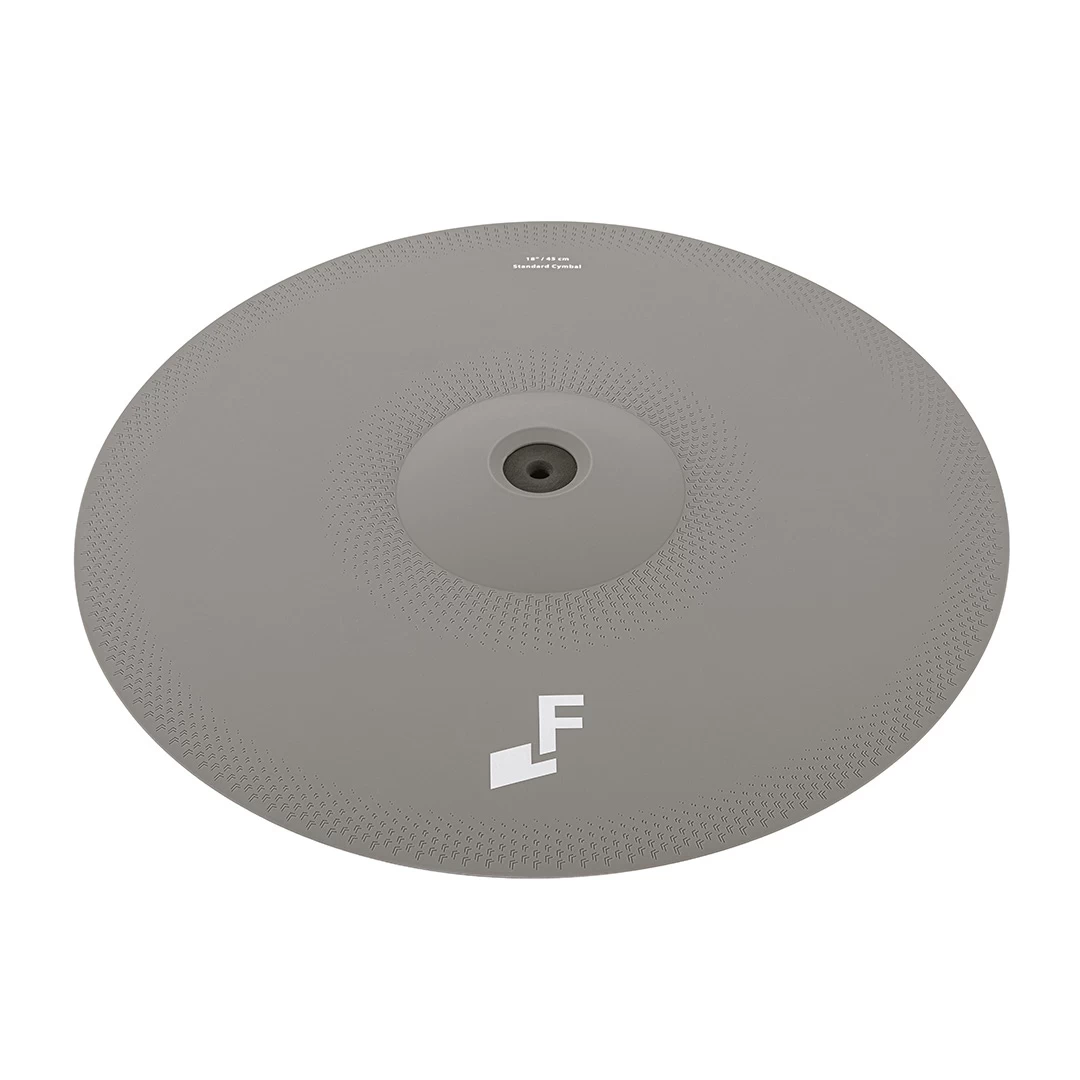

3-Zone Crash / Ride Cymbals

• Elegant “”warm-gray”” colored cymbals
• Fine engraved surface
• Weight simulation with thin edge for appropriate striking feel
• 360° flat sensing with multi-sensor
• 360° choke supported
• Full 3-zone Crash/Ride cymbals (bow/edge/cup)
• 18″” Ride, 16″” Crashes, 14″” Hi-hat

* EFNOTE 3X does not support the Crash 1 cup when the Tom 4 is used.

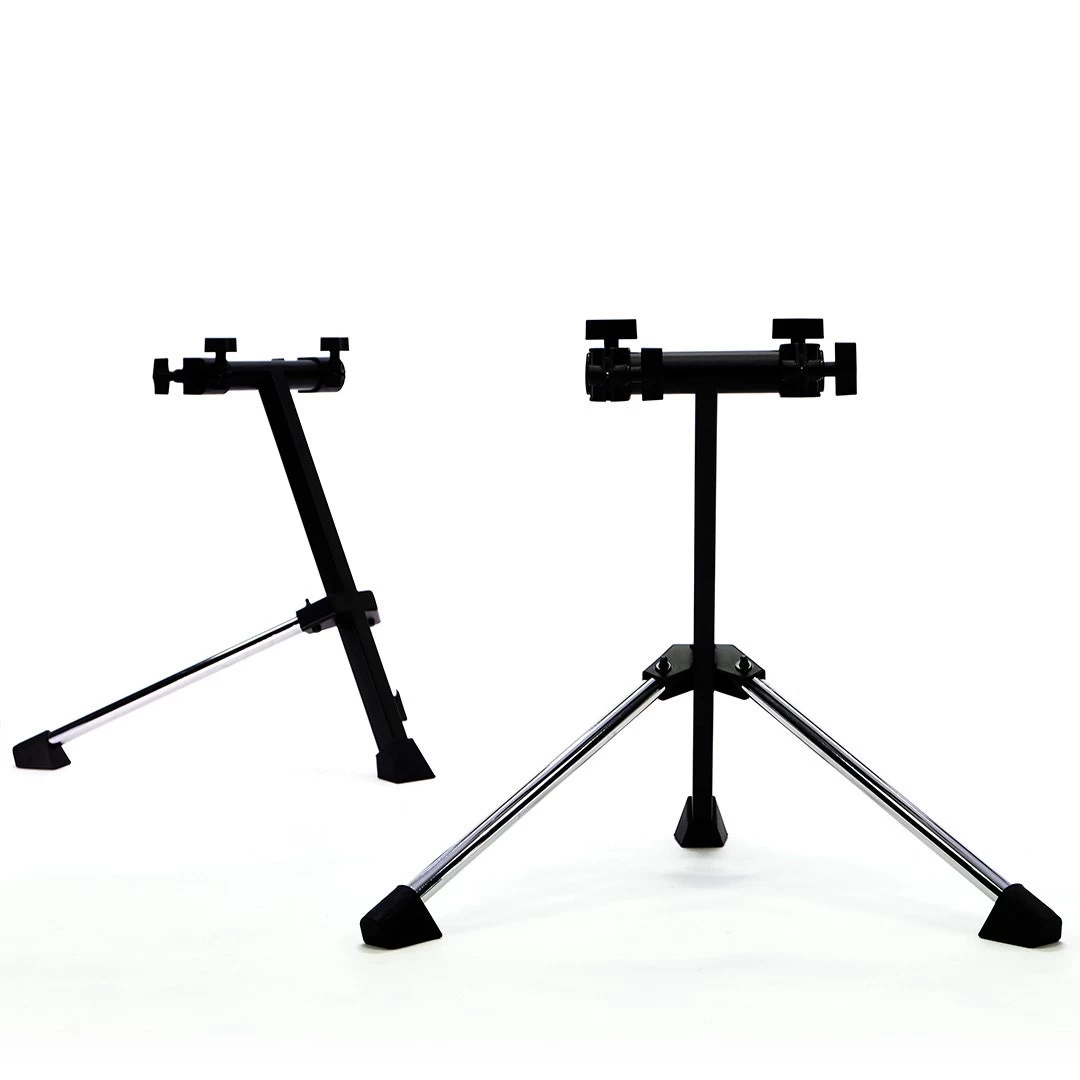

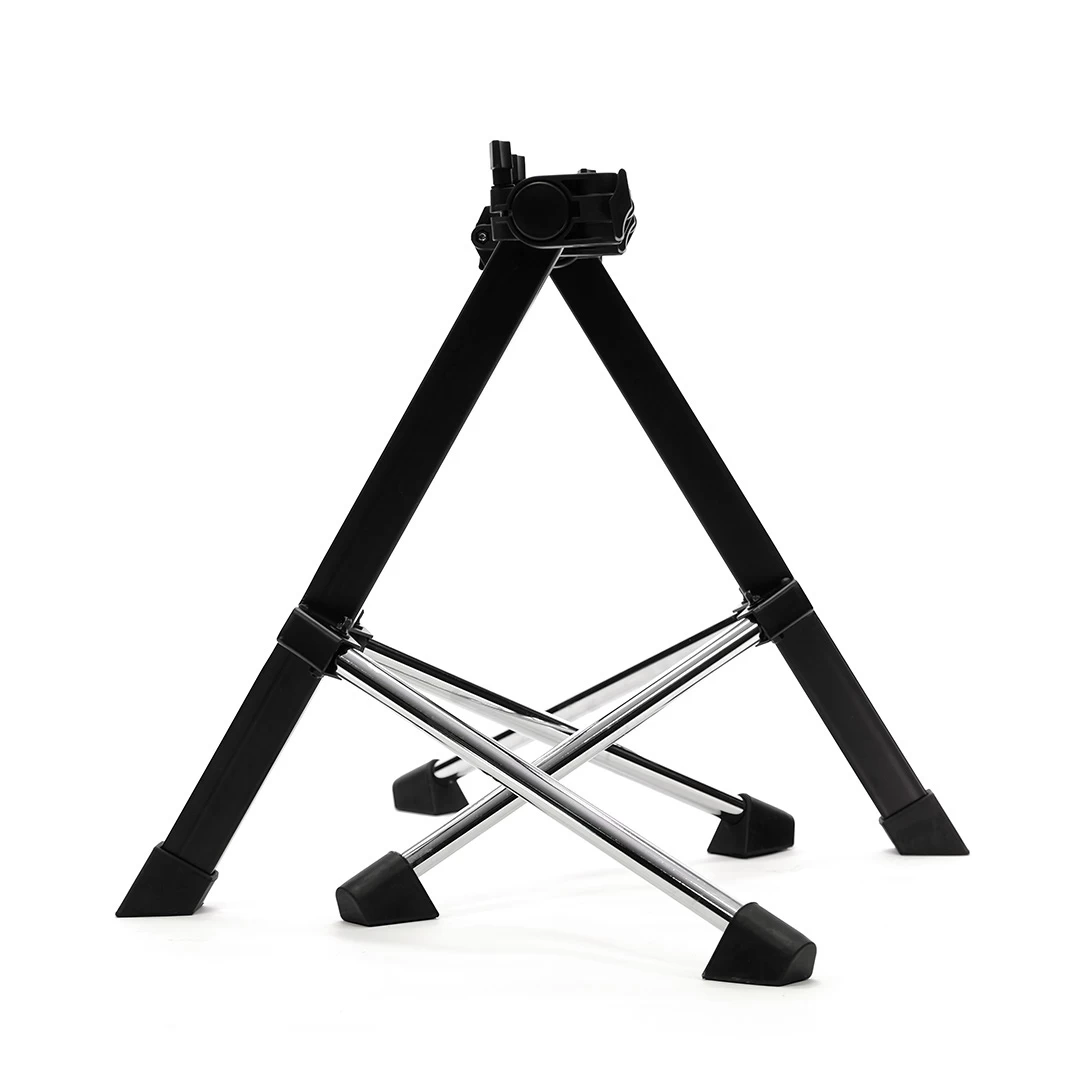

λ (Lambda) Tripods

• Advanced design
• Easy and flexible setup
• Perfect stability

* Design registered

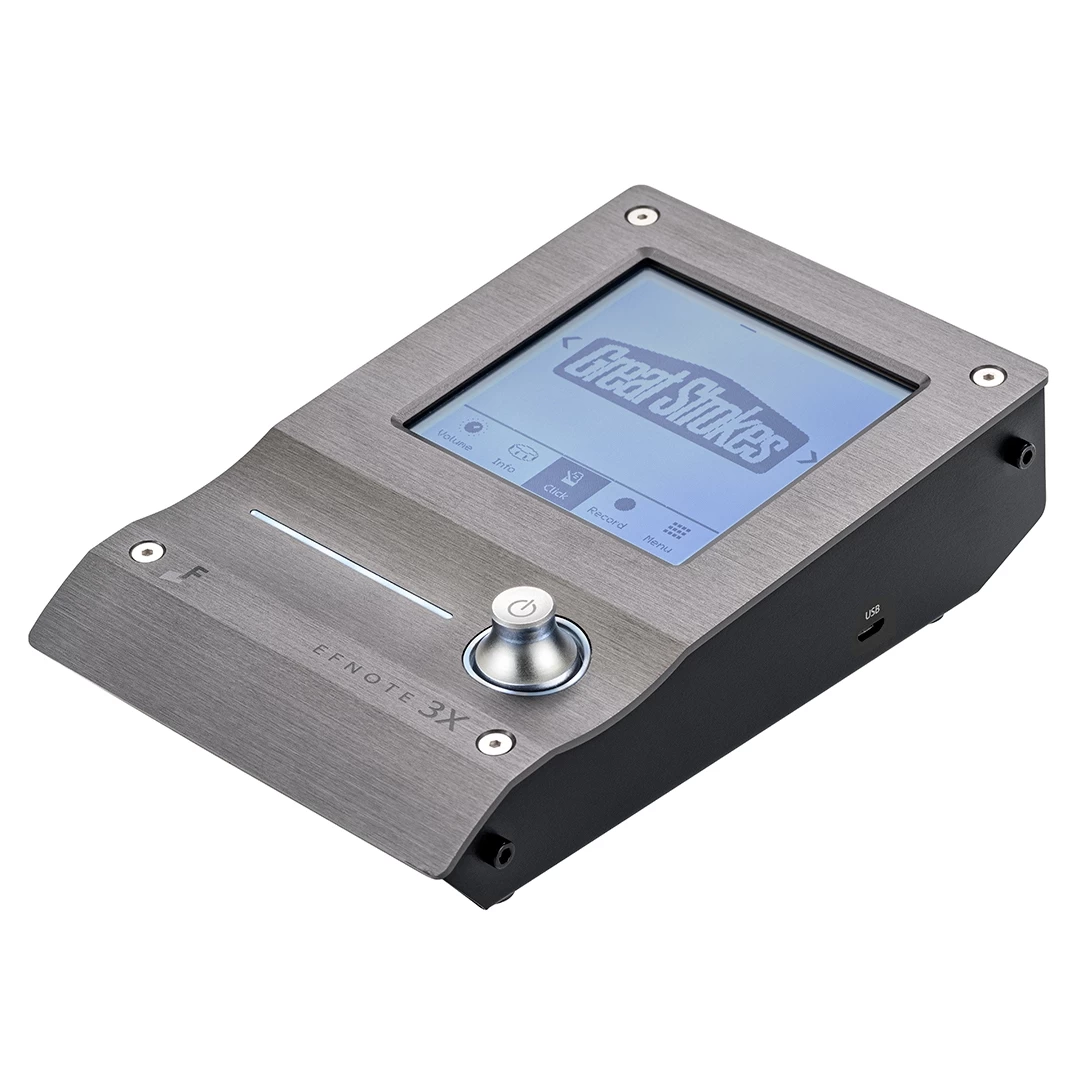

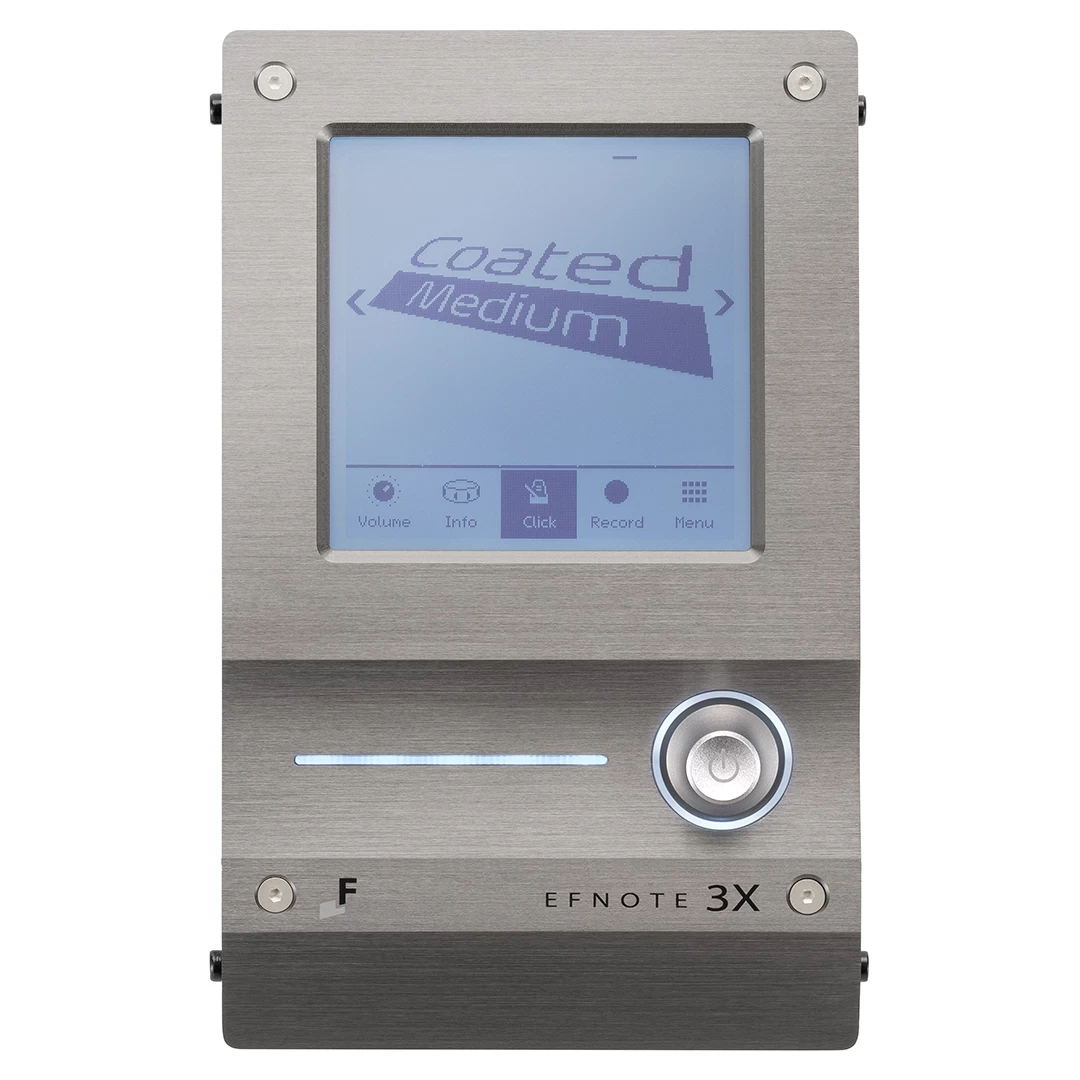

Ultra-Compact Sound Module

• Ultra-small form factor with uncompromised features

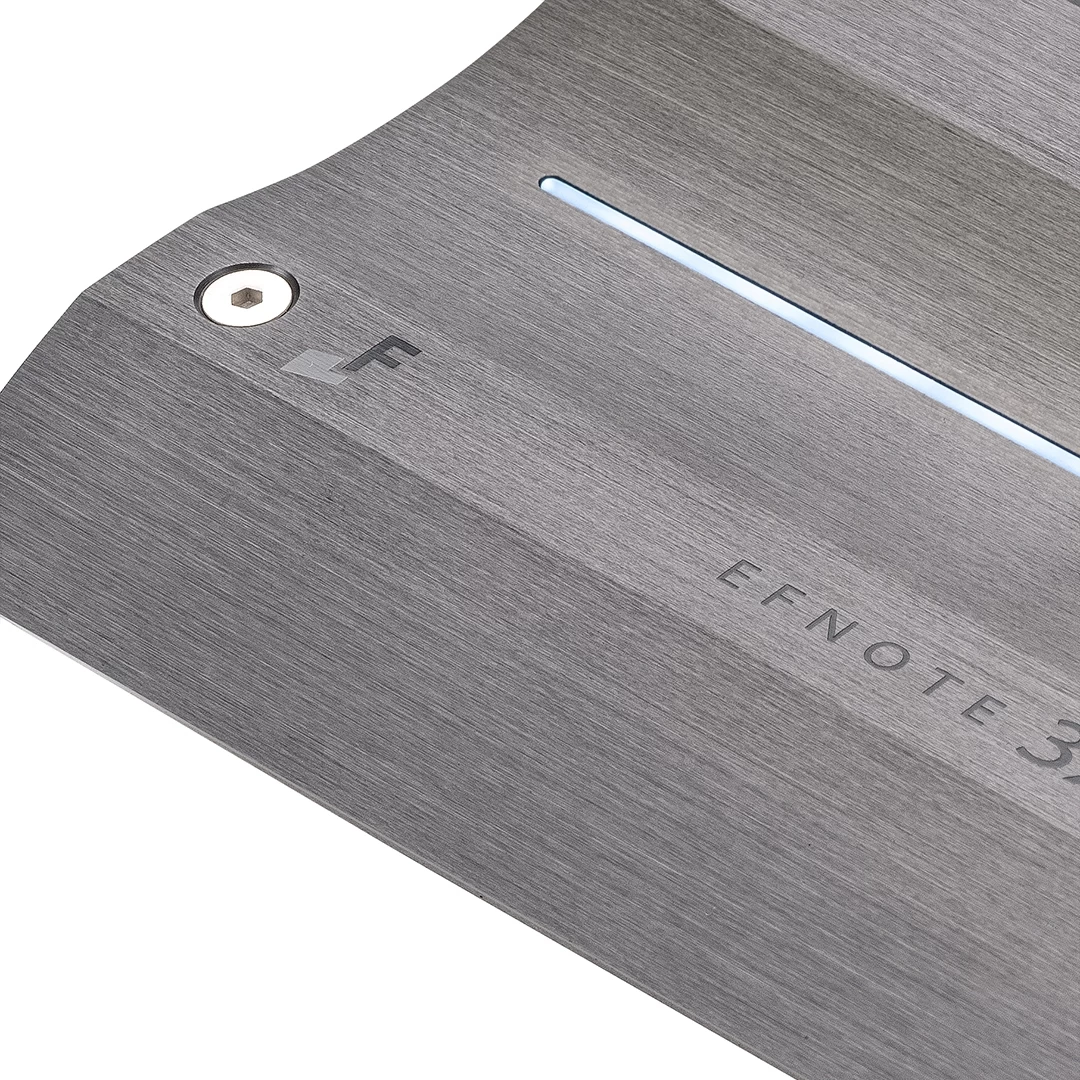

• Metal chassis and aluminum finish
• High quality DAC and audio circuit
• Touch screen intuitive user interface

Full-Scale Acoustic Sound

• Tru-Aco™ sound technology provides so real drum/cymbal sound
• Stereo samples with wide dynamic range for all acoustic instruments
• Minimum pre-processed, uncompressed waveforms for maximum fidelity
• Natural and smooth continuity roll sounds

ELISE™ Sensing Processor

• Capturing drummer’s intentions from each stroke
• Low latency, wide dynamic-range, consistent and stable sensing
• Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads

For Recording

• USB 8-ch individual audio outputs with Mac / Windows (ASIO)
• USB 2-ch audio inputs for playback
• Analog 4-ch audio outputs
• USB MIDI in/out with individual MIDI channels
• MIDI output (5-pin DIN)
• On-board drum recording (5 songs)

For Small Gigs

• Setlist feature enables you to configure kit order with tempo for each song
• Kick and Snare can be output individually with analog 4-ch outputs
• Click and Audio-In can be assigned only for headphones
• High-power headphones output
• MIDI output (5-pin DIN)

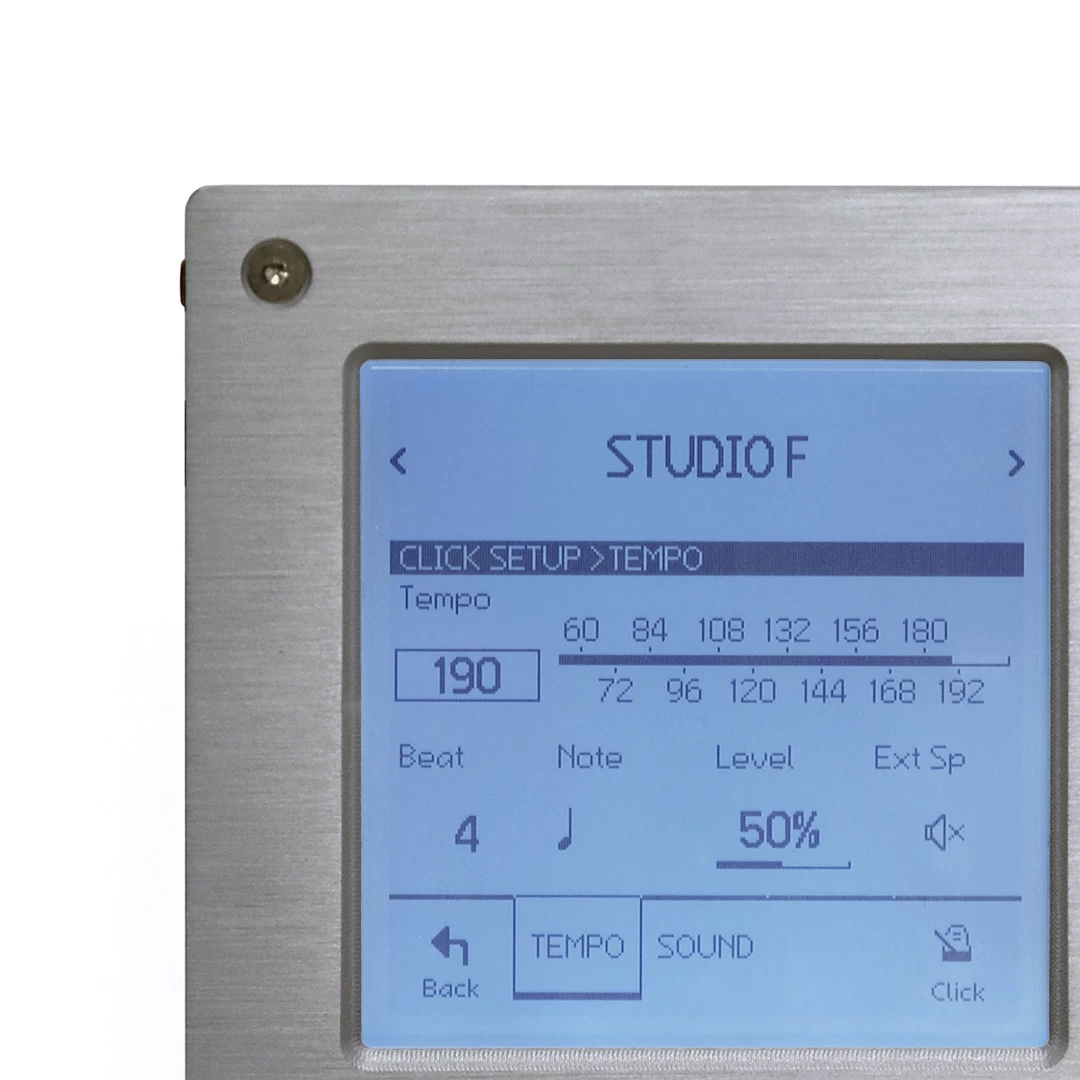

For Training

• Multi-function metronome with beat LED indicator
• Built-in metronome speaker for daily training without headphones
• On-board recording function (5 songs)
• Stroke Analyzer
• Rhythm Box feature provides over 90 basic drum beats

Stroke Analyzer

• “”Stroke Scope”” displays your strike points on time-line
• “”Accuracy Score”” estimates your strike accuracy

Sound Edit

• Tuning, Muffling, 2-band EQs for each pad
• Pad layer function can overlay two sounds
• User Inst Library enables you to store 50 customized instruments
• On-board reverb
• Dedicated level control screen

Flexible Audio Routing

• 10-ch output buses
• Flexible output routing for each pad
• Output assignable click
• Output: 4-ch analog / 8-ch USB
• Input: Analog / Bluetooth / 2-ch USB

Bluetooth®

• Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
• Bluetooth MIDI

Specifications

Drum / Cymbal Pads

• Kick EFD-K12P
• Size: 12 x 4″”
• Zone: Head
• Sensor: Multi
• Head: Low-rebound double-layered mesh with beater patch
• Connector: Head (TRS Phones)
• Features: Angle-adjustable kick pedal attachment

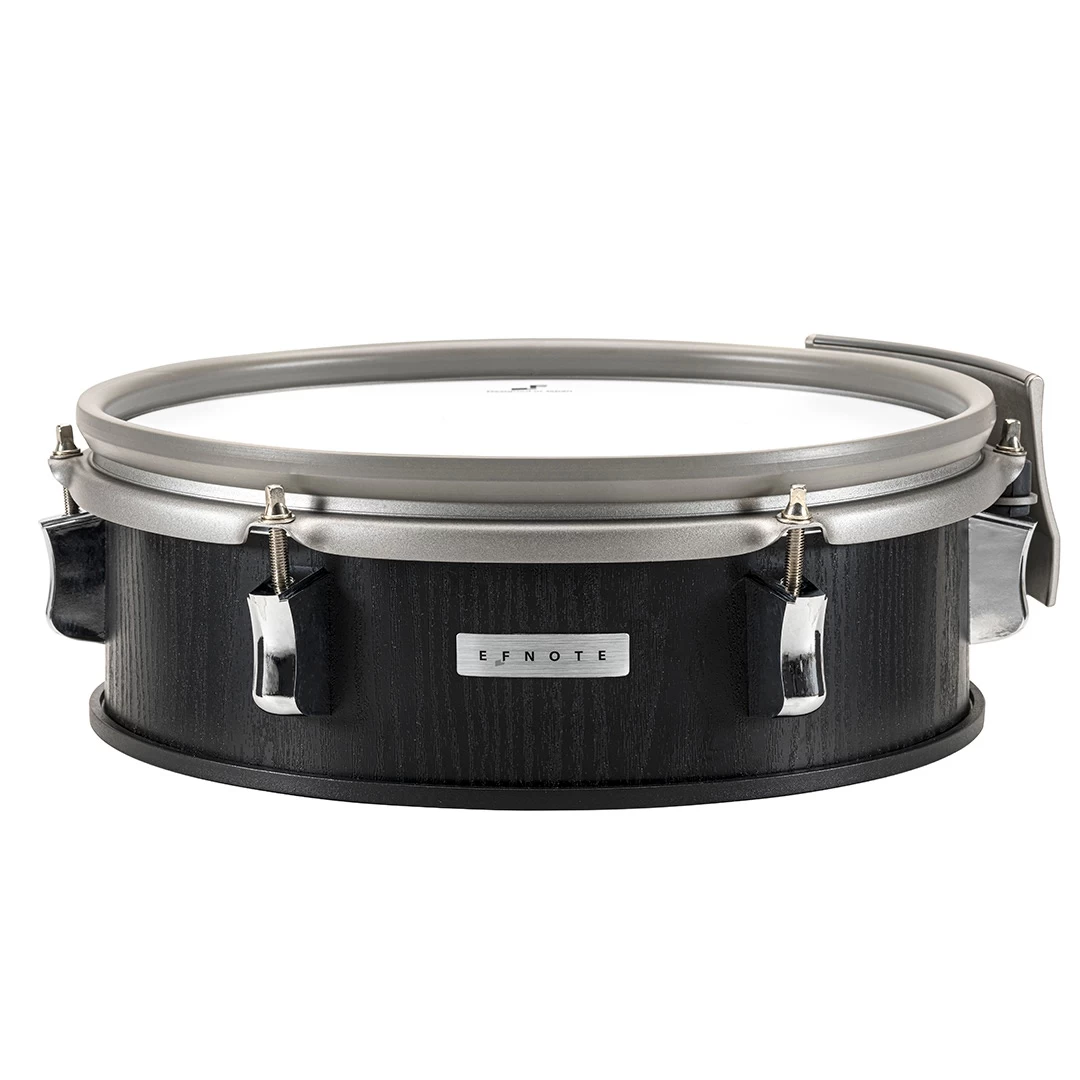

• Snare EFD-S12P
• Size: 12 x 4″”
• Zone: Head / Rim / Side-Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim, Side-Rim (2x TRS Phones)
• Features: Monocoque drum shell, Colored hoop rubber, Side-Rim
• Tom 1 / 2 EFD-T10P
• Size: 10 x 3.5″”
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Monocoque drum shell, Colored hoop rubber, Suspended tom mount
• Tom 3 / 4 EFD-T12P
• Size: 12 x 4″”
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Monocoque drum shell, Colored hoop rubber, Suspended tom mount
• Hi-Hat EFD-H14
• Size: 14″” (Top/Bottom)
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke) / Optical
• Connector: 6-pin
• Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
• General hi-hat stands compatible with φ12.7 mm (1/2″”) hole cymbal can be used.
• EFNOTE 3X sound module does not support hi-hat cup zone.
• Crash 1 / 2 EFD-C16
• Size: 16″”
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface
• In the EFNOTE 3X configuration, the Crash 1 cup is not supported when the Tom 4 is used.
• Ride EFD-C18
• Size: 18″”
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface

Sound Module: EFD-3X

• Trigger Interface
• 3-Zone: Snare, Crash 1/2*, Ride
• 2-Zone: Tom 1/2/3/4, HH, Crash 3
• 1-Zone: Kick
• Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.
• In the EFNOTE 3X configuration, the Crash 1 cup is not supported when the Tom 4 is used.
• Audio / MIDI Interface
• Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
• Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
• Audio Input: Stereo Mini-Phone (+2dBu Max)
• USB Audio: 8-ch Output / 2-ch Input (Mac/Windows ASIO)
• USB MIDI In/Out
• Bluetooth Audio Input
• Bluetooth MIDI In/Out
• MIDI Out: 5-pin DIN
• Drum Kits / Instruments
• Preset Drum Kits: 16 (Editable)
• User Drum Kits: 34
• Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), eKick/eSnare, Attack Elements
• User Inst Library: 50 (Can be stored customized instruments)
• Edit Parameters
• Level, Pan, Tuning, Muffling (for each pad)
• 2-Band EQ (for each pad)
• Ambience Effect (8 Types)
• Pad Layer
• Dimensions
• 172 (W) x 106 (D) x 47 (H) mm
• 700g
• Excluding protrusions
• Power: DC 12V, 500mA (Nominal) / 800mA (Max)

Tripods / Stands

• Tripods
• 3x Lambda Tripod
• Snare Drum Stand
• For 12″” to 14″” diameter snare drums
• Geared basket tilter
• Double braced legs
• Tube diameter: φ19.1 mm (3/4″”)
• Height adjustment range: 500 — 650 mm
• Tom Holder
• 4x Tom Holder Arm
• Geared L-rod tilter
• Knurled carbon steel rod
• L-rod diameter: φ11.5 mm (7/16″”)
• Tube diameter: φ22.2 mm (7/8″”)
• Height adjustment range: 550 — 900 mm
• Cymbal Arm
• 3x Boom Cymbal Arm
• Gearless tilter
• Cable holder
• Tube diameter: φ22.2 mm (7/8″”)
• Boom length: 300 mm
• Height adjustment range: 650 — 1250 mm
• Sound Module Arm
• 1x Sound Module Arm
• 1x Smartphone Tray

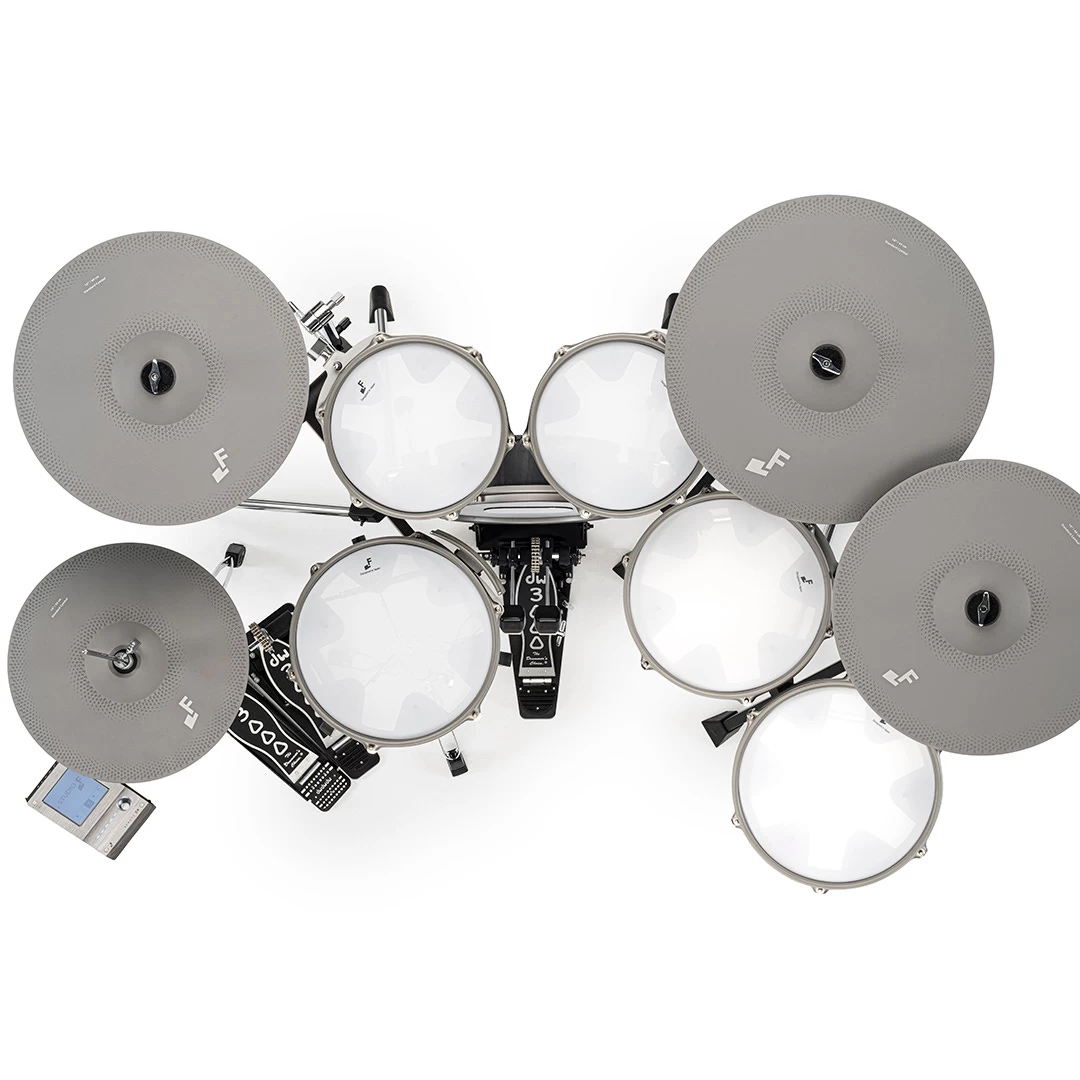

Drum Kit Placement

• Placement Size
• Approx. 170 (W) x 110 (D) cm
• Approx. 5.6 (W) x 3.6 (D) feet
• Without drum throne

Package

• Accessories
• Brake-Out Cable: EFD-MULTI-AX
• Brake-Out Cable: EFD-MULTI-B
• 4x Trigger Cable 3.0 m: EFD-TRS-LL3
• Cable Ties
• Quickstart Guide
• Kick pedal, hi-hat stand and drum throne are sold separately.
