EFNOTE 7 7-Piece Electronic Drum Set W/ Full Sized Shells And Bluetooth Input

Manufacturer’s Description

*Stands sold separately

*This drum set ships directly from EFNOTE to your door, please allow 24-72 hours extra processing time.

The Power of Synergy

EFNOTE 7 gives drummers a whole new experience and exhilaration with the overwhelmingly realistic touch of full-scale shells/cymbals, and the brilliant sound remastered to match them perfectly.

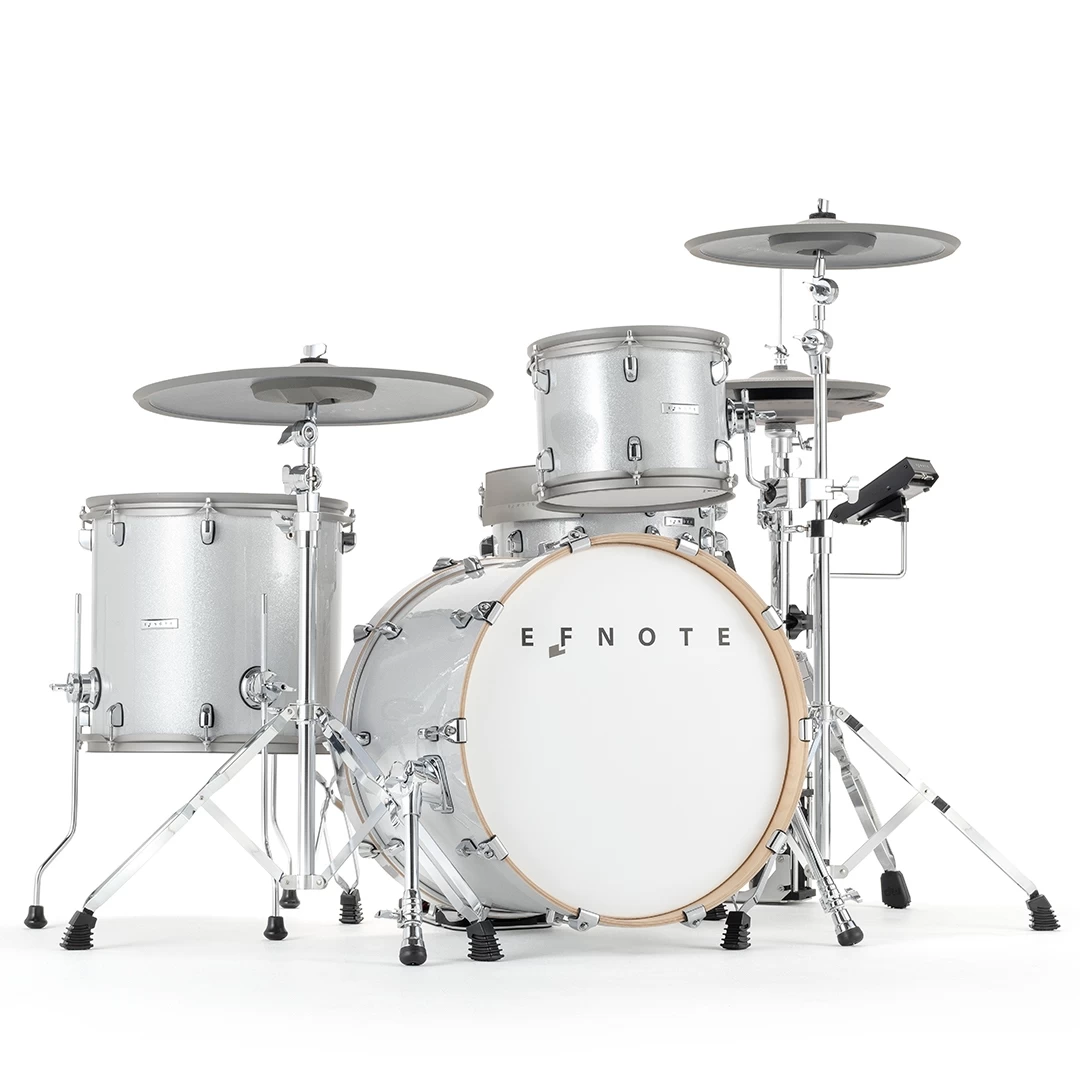

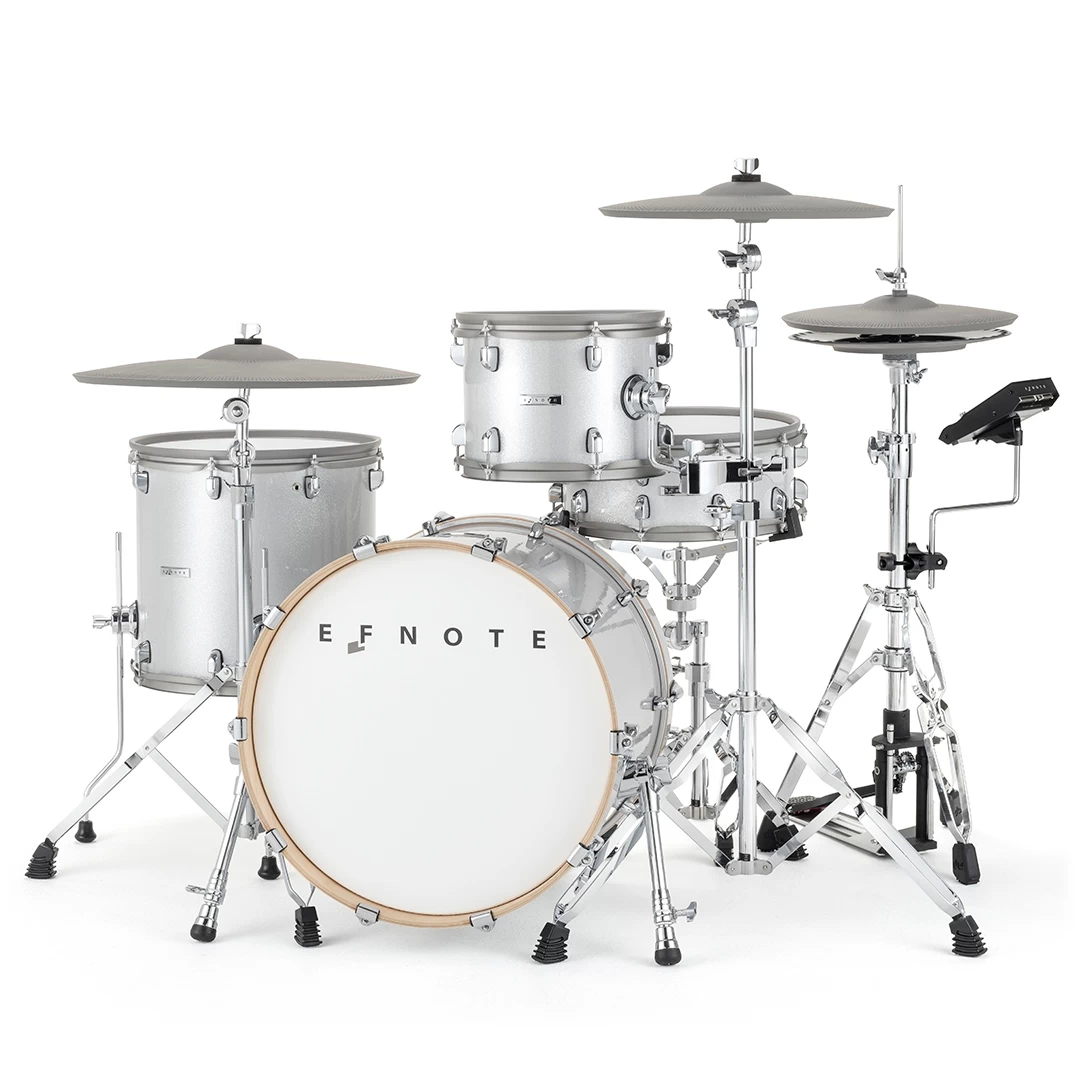

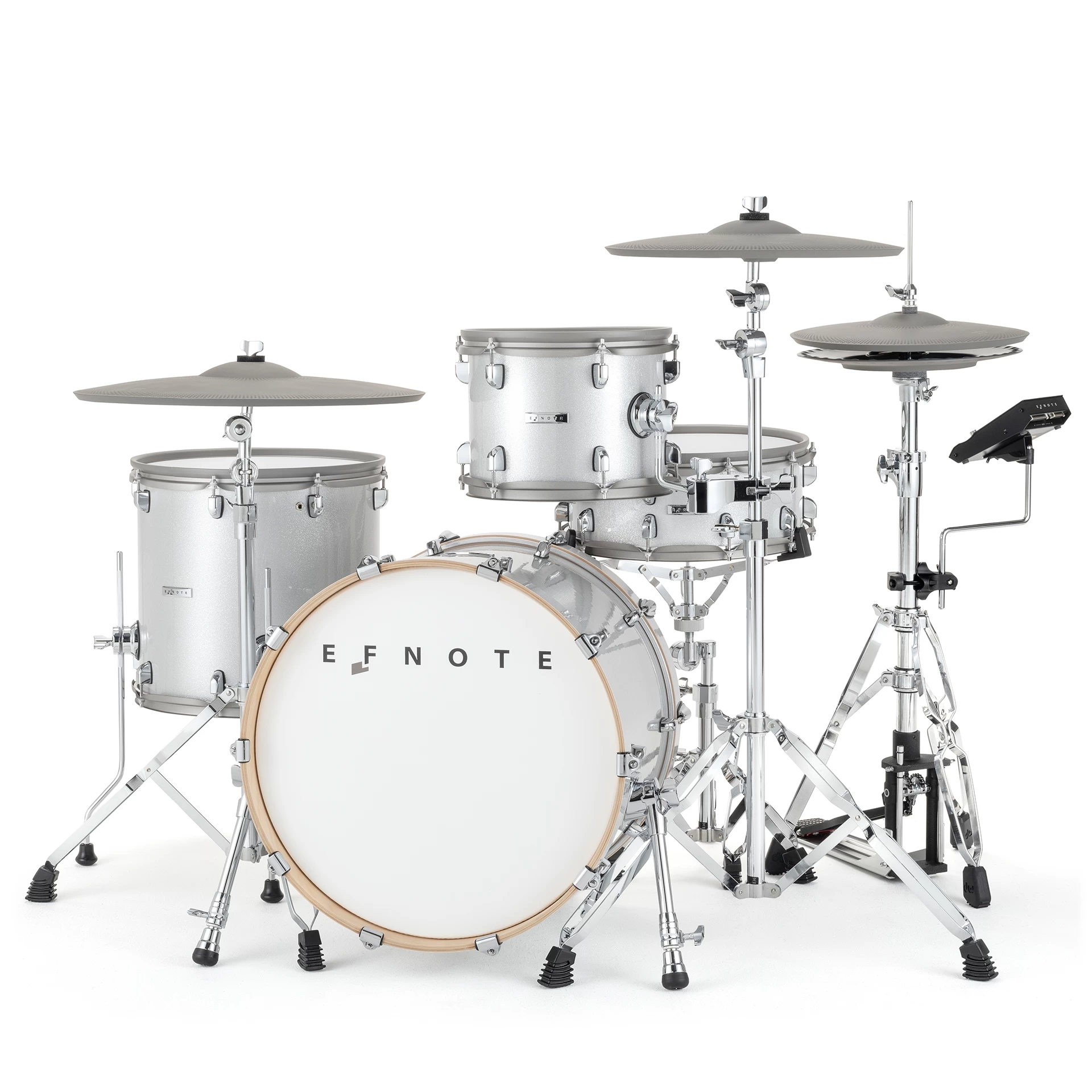

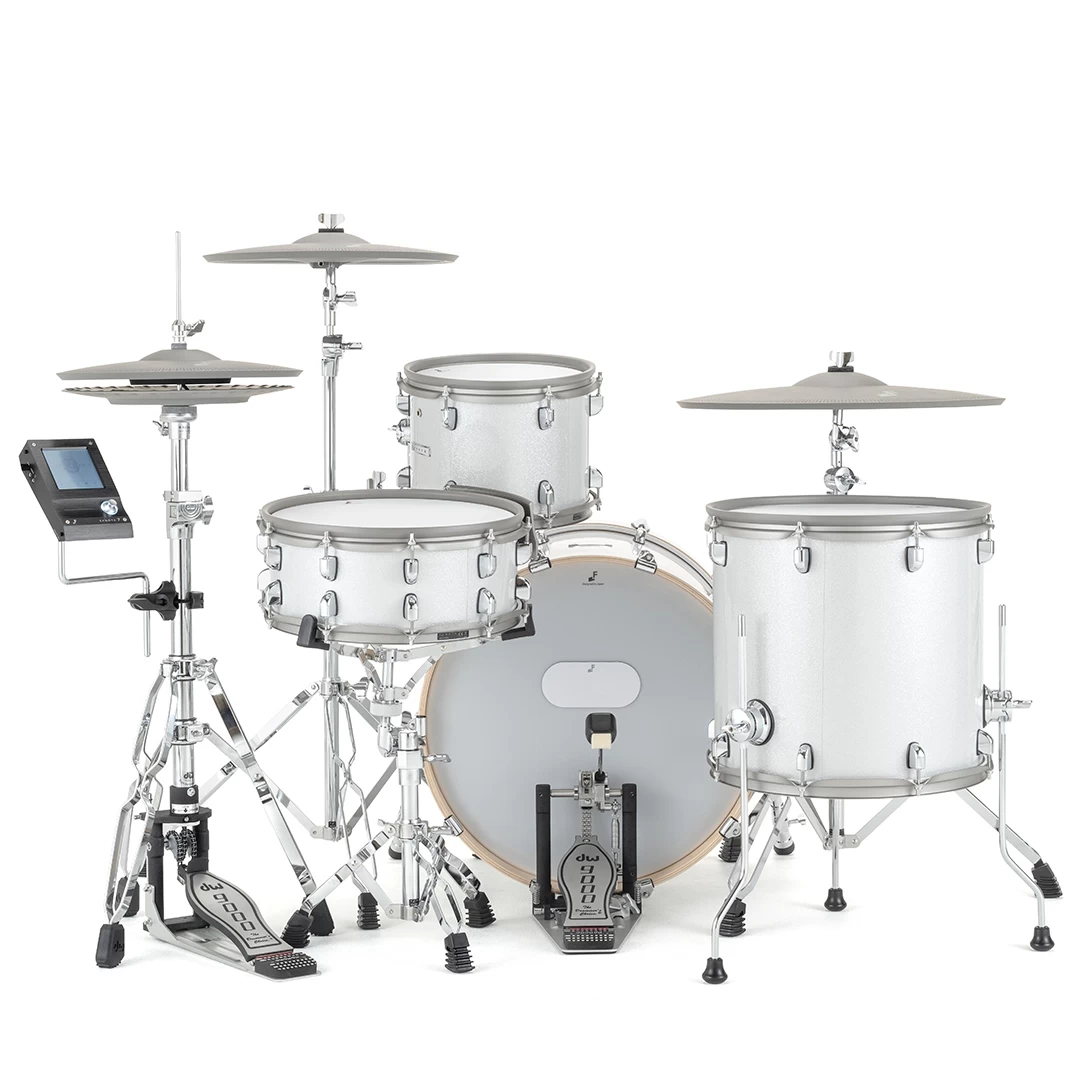

Electronic Drums EFNOTE 7

The Authentic Presence

20 x 15″” kick drum and 14 x 5.5″” snare drum with white sparkle finishes that shine brightly on stage. 14” real hi-hats and unparalleled 20″” ride cymbal…Everything is for fascinating you and your audiences.

The Beauty of Proportion

The depth-caliber ratio is precisely designed to evoke the beauty of sound and appearance.

Specially customized the 11 x 8″” rack tom and the 15 x 15″” floor tom are one of the results of EFNOTE’s uncompromising pursuit.

The Expandability for Customized Setup

EFNOTE drums are most beautifully expandable thanks to not only perfect pad compatibility but also excellent design uniformity.

Visit the Customize page for customized setup examples.

Describing Textures of Vintage Drums

Good old collector’s drum sets are newly recorded for EFNOTE 7, are mastered carefully with minimal processing. The Tru-Aco™ sound technology brings out the full texture and original vividness of the sounds.

Evolving ELISE™ Sensing Chip

The ELISE sensing technology is improved day by day, for capturing fine rolls, strokes from soft touches to extra-hard, and slight nuances of footwork.

Advanced Sensing Structure

The sensor design optimized based on many years of experiences. It evens out the sensitivity and conveys the player’s intention and dynamics without deterioration, to support perfect playabliity.

Touch and feel the new experience.

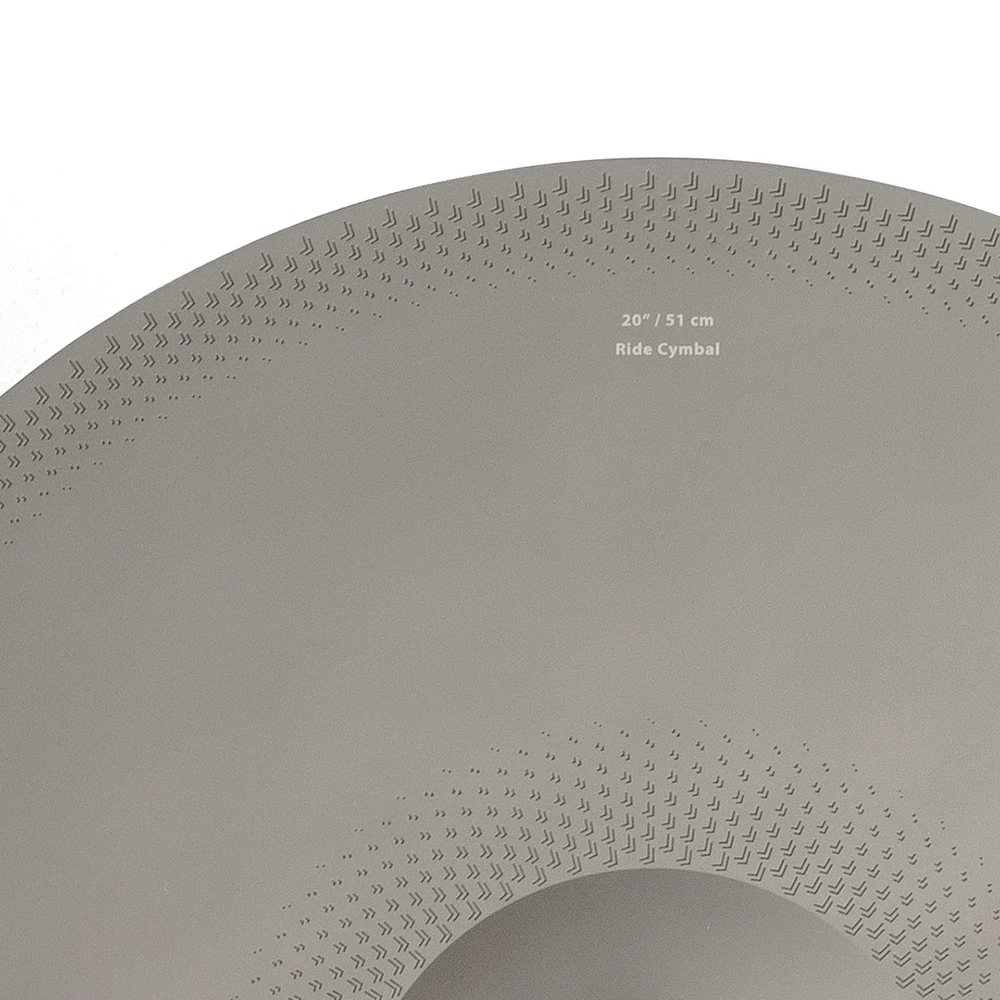

The 20″” Ride Was Born!

The ultimate comfort that the electronic cymbals have finally reached.

The 20″” diameter provides slow wobbling of edge and the quick response of bow/cup, and the uneven smooth surface that simulates a hammered cymbal makes sticks bounce naturally.

The Finest Hi-Hat Cymbals

Thanks to the remarkable Tru-Motion™ technology with multi-optical-sensor (patent pending), ultra-high precision gap detection and unlimited free movement of top/bottom cymbals are realized, which were difficult with conventional electronic drums.

The Unwavering Confidence

The 20 x 15″” kick drum props the whole drum set on stage by completely absorbing impacts of the beater throughout the large head.

At the same time, its quietness is much improved over the conservative design with a small pad on the head.

14″” – More Solid, More Delicate

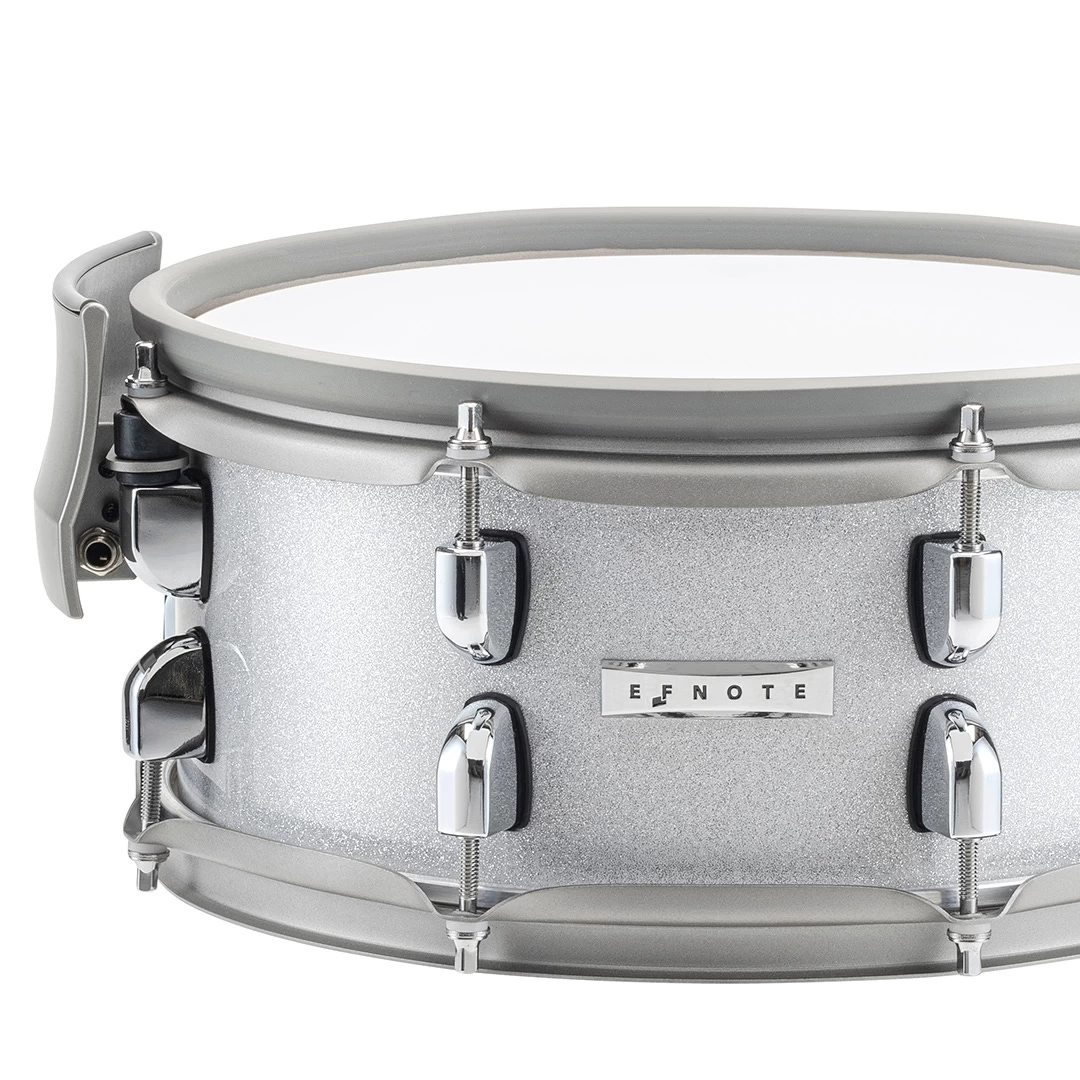

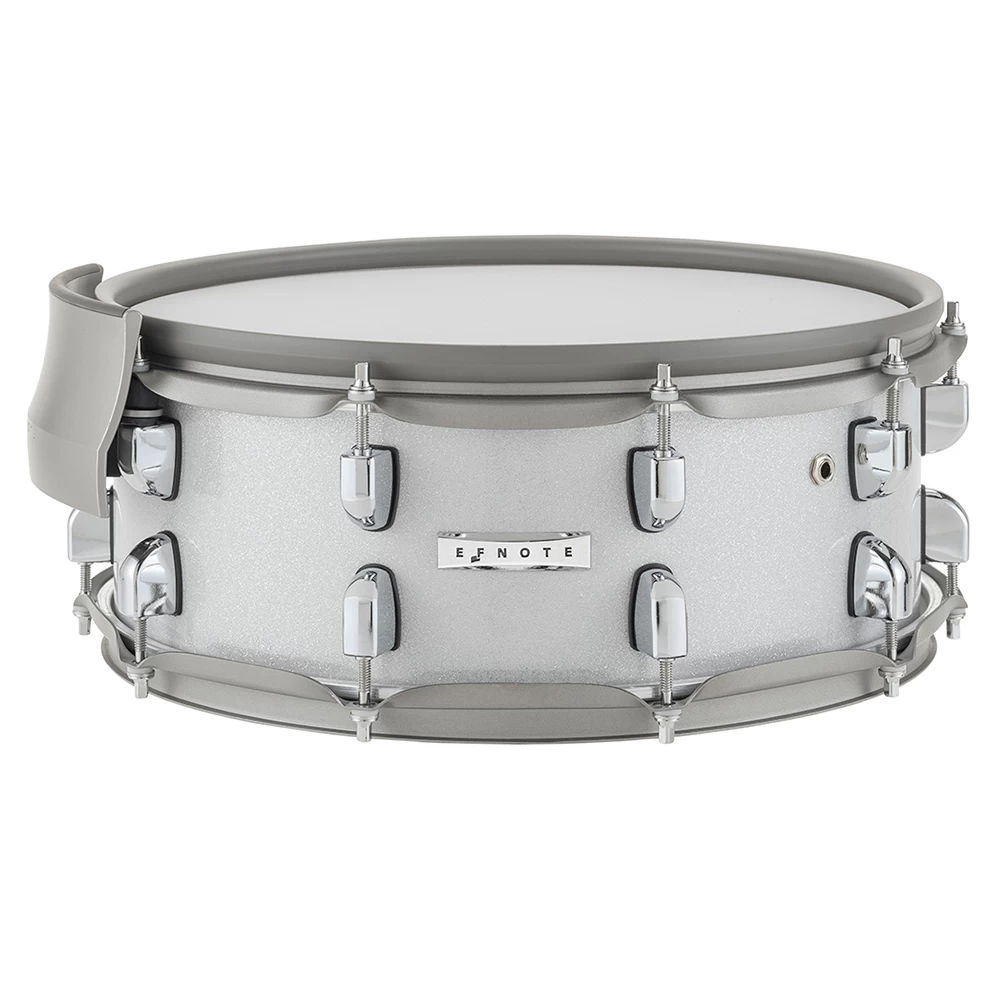

The new 14 x 5.5″” snare drum with exclusively optimized multi-sensor responds to delicate touches.

Moreover, 10 lugs allow for high head tension and larger side rims ensure unprecedented comfort.

Experience the True Low-Rebound

The unique rebound of the acoustic floor tom that may stop sticks, achieved by the new 15 x 15″” floor tom.

We have achieved both the realistic low-rebound that was difficult to achieve with 14″” or less and stable sensing.

Various Optional Components

EFNOTE offers a wide range of options as a comprehensive drum brand.

All optional components have the same design language and are fully software compatible, so you are free to extend your customized kit.

For Training

• Multi-function metronome with beat LED indicator
• Built-in metronome speaker for daily training without headphones
• On-board recording function (15 songs)
• Stroke Analyzer
• Rhythm Box feature provides over 90 basic drum beats

For Recording

• USB 8-ch individual audio outputs with Mac / Windows (ASIO)
• USB 2-ch audio inputs for playback
• Analog 4-ch audio outputs
• USB MIDI in/out with individual MIDI channels
• MIDI output (5-pin DIN)
• On-board drum recording (15 songs)

For Small Gigs

• Setlist feature enables you to configure kit order with tempo for each song
• Kick and Snare can be output individually with analog 4-ch outputs
• Click and Audio-In can be assigned only for headphones
• High-power headphones output
• MIDI output (5-pin DIN)

Stroke Analyzer

• “”Stroke Scope”” displays your strike points on time-line
• “”Accuracy Score”” estimates your strike accuracy

Sound Edit

• Tuning, Muffling, 2-band EQs for each pad
• Pad layer function can overlay two sounds
• User Inst Library enables you to store 128 customized instruments
• On-board reverb
• Dedicated level control screen

Flexible Audio Routing

• 10-ch output buses
• Flexible output routing for each pad
• Output assignable click
• Output: 4-ch analog / 8-ch USB
• Input: Analog / Bluetooth / 2-ch USB

Bluetooth®

• Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
• Bluetooth MIDI

Specifications

Drum / Cymbal Pads

Kick EFD-K2015

• Size: 20 x 15″”
• Zone: Head
• Sensor: Multi
• Head: Double-layered mesh with beater patch
• Connector: Head (TRS Phones)
• Features: Wood hoop

Snare EFD-S1455

• Size: 14 x 5.5″”
• Zone: Head / Rim / Side-Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim, Side-Rim (2x TRS Phones)
• Features: Birch shell, Colored hoop rubber, Side-Rim

Tom EFD-T1180

• Size: 11 x 8″”
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber

Floor Tom EFD-T1515

• Size: 15 x 15″”
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber

Hi-Hat EFD-H14

• Size: 14″” (Top/Bottom)
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke) / Optical
• Connector: 6-pin
• Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface

Crash EFD-C16

• Size: 16″”
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface

Ride EFD-C20

• Size: 20″”
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface, Uneven smooth surface

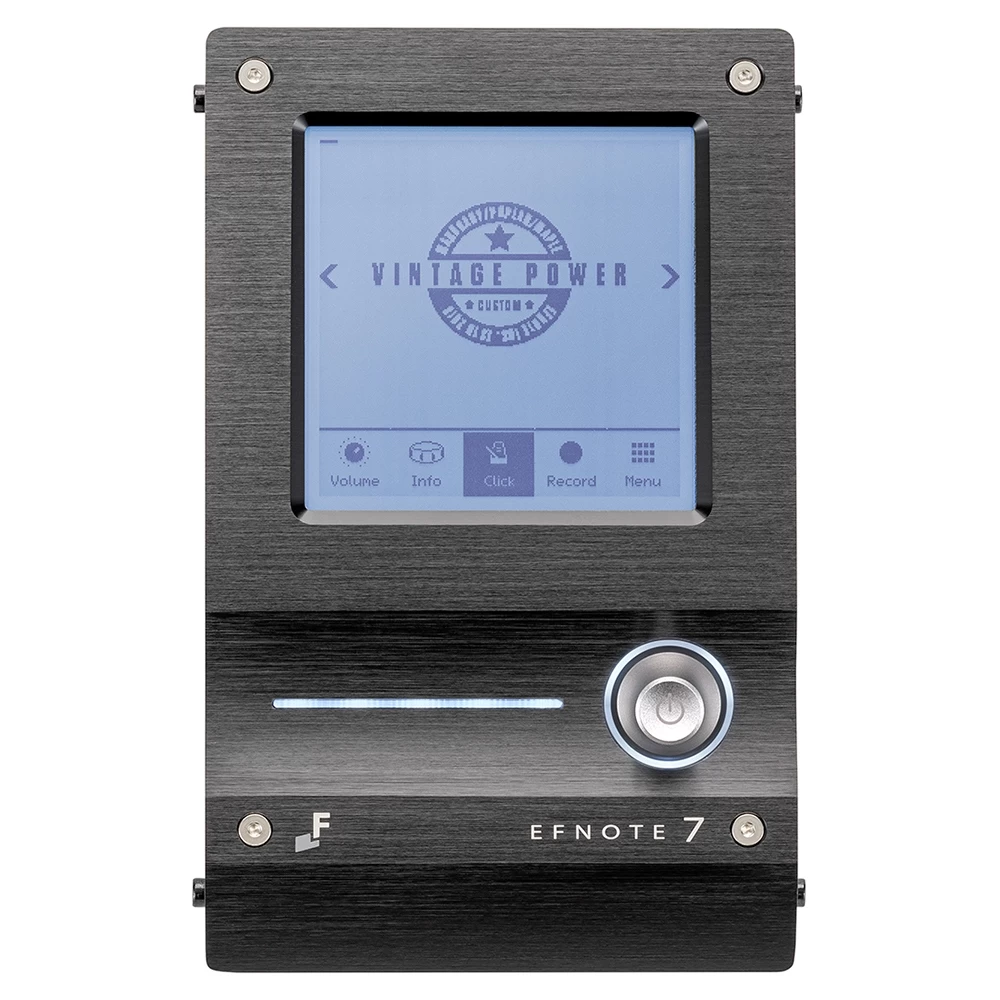

Sound Module: EFD-7

Trigger Interface

• 3-Zone: Snare, Crash 1/2*, Ride
• 2-Zone: Tom 1/2/3/4, HH, Crash 3
• 1-Zone: Kick

Audio / MIDI Interface

• Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
• Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
• Audio Input: Stereo Mini-Phone (+2dBu Max)
• USB Audio: 8-ch Output / 2-ch Input (Mac/Windows ASIO)
• USB MIDI In/Out
• Bluetooth Audio Input
• Bluetooth MIDI In/Out
• MIDI Out: 5-pin DIN

Drum Kits / Instruments

• Preset Drum Kits: 20 (Editable)
• User Drum Kits: 80
• Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), Attack Elements
• User Inst Library: 128 (Can be stored customized instruments)

Edit Parameters

• Level, Pan, Tuning, Muffling (for each pad)
• 2-Band EQ (for each pad)
• Ambience Effect (8 Types)
• Pad Layer

Dimensions

• 172 (W) x 106 (D) x 47 (H) mm
• 700 g

Power

• DC 12 V, 500 mA (Nominal) / 800 mA (Max)

Hardware

Snare Drum Stand
(Optional) EFD-SS5

• For 12″” to 14″” diameter snare drums
• Geared basket tilter
• Double braced legs
• Tube diameter: φ19.1 mm (3/4″”)
• Height adjustment range: 500 — 650 mm

Cymbal Stand
(Optional) EFD-CS5

• Boom cymbal arm
• Geared tilter
• Cable holder
• Middle tube diameter: φ19.1 mm (3/4″”)
• Boom length: 400 mm
• Height adjustment range: 800 — 1,500 mm

Tom Mount
(Optional) EFD-TM5

• Ball angle adjustment
• Knurled carbon steel rod
• L-rod diameter: φ10.0 mm (3/8″”)
• Installable pipe diameter: φ19.1 mm (3/4″”) — φ31.8 mm (5/4″”)

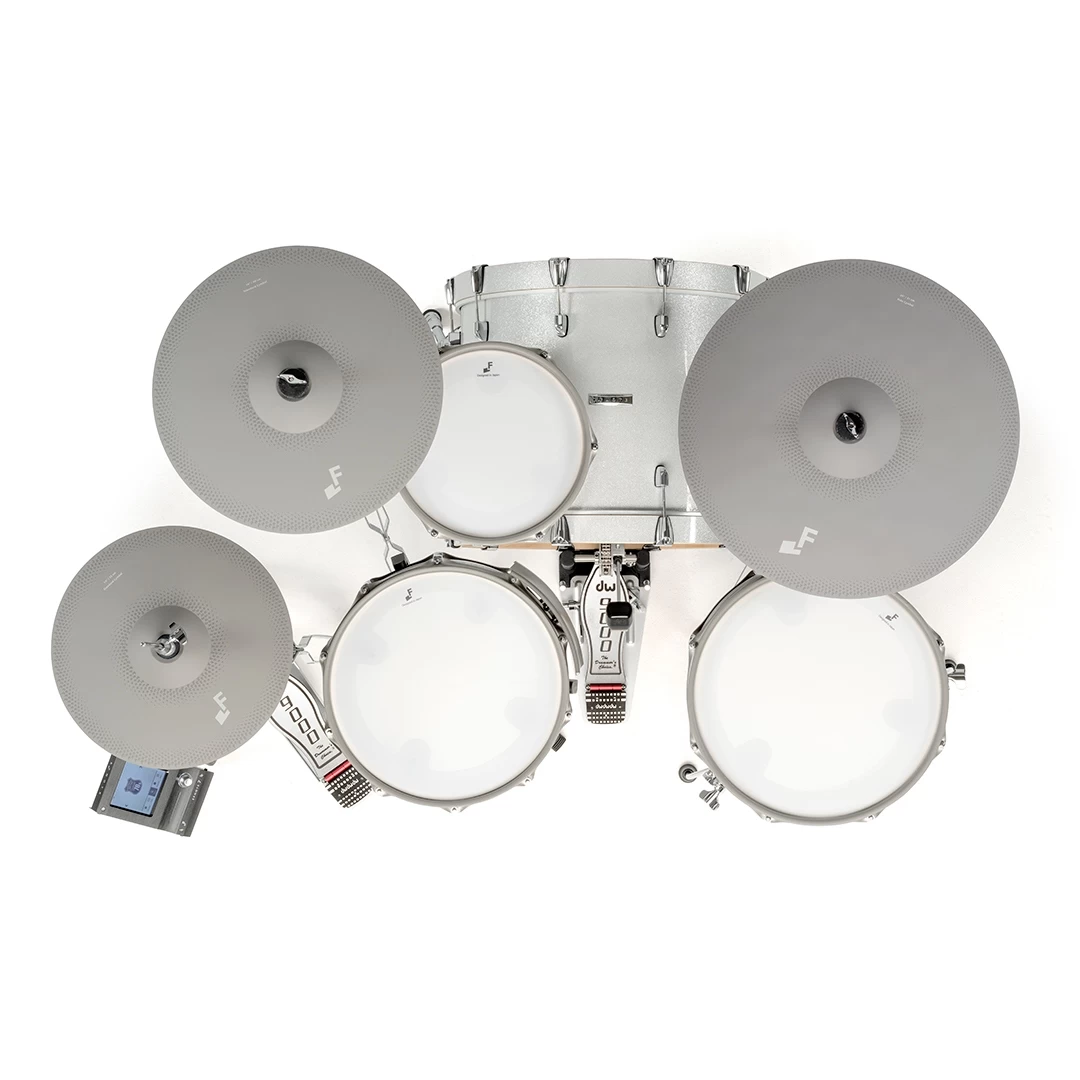

Drum Kit Placement

Placement Size

• Approx. 145 (W) x 100 (D) cm
• Approx. 4.8 (W) x 3.3 (D) feet



Package

Accessories

• Brake-out cable: EFD-MULTI-A5
• Brake-out cable: EFD-MULTI-B
• 5x Trigger cable 3.0 m: EFD-TRS-LL3
• Cable ties
• Quickstart guide

Snare drum stand, cymbal stand and tom mount are optional.

Kick pedal, hi-hat stand and drum throne are sold separately.
