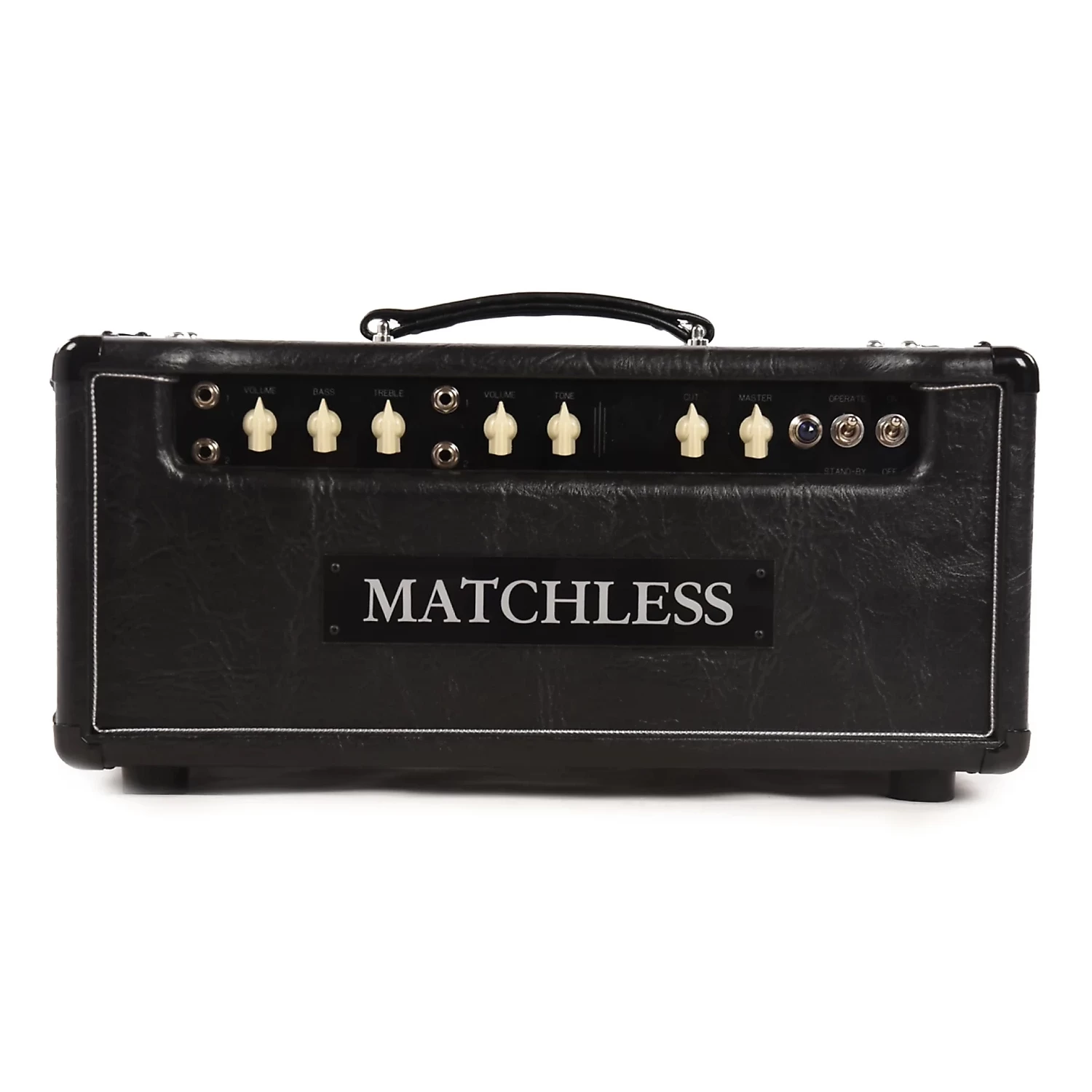

Matchless HC-30 30-Watt 2-Channel Tube Guitar Amp Head, Black & Silver

$98.99

SKU: MATCH-HC-30-BLKSIL Categories: Amps, Guitar Amp Heads

Secure Shopping with Safe Payments
Where quality meets convenience.
Control the delivery date and try to deliver it in the fastest time
Nature-friendly materials, for a better planet.

Manufacturer’s Description

This is what changed the amp world. The C-30 was the company’s first design and still leads the lineup.

Thirty very conservatively rated watts from a quartet of EL-84’s, through two channels, each with unique voicing and tone control layouts, produce a world of tone choices. True “Class A” configuration gives rich, complex harmonics whether played clean, mildly overdriven, or with all-out power tube saturation. This means you should sound great in any situation, in any music style.

A long list of musician designed features includes: highly interactive tone controls and circuitries unique to each channel, bypassable master volume, individual channel effects loops, cut control for high frequency shaping, high and low (30 or 15 watt) power settings, selectable output impedance and phase inverter switches allow the use of additional speaker cabinets or amps in-phase with the C-30.

The preamp sections are based on a layout of two 12AX7’s in Channel 1 and one EF86 in Channel 2. The two 12AX7’s in Channel 1 create a parallel-triode circuit with interactive bass and treble. The one EF86 in Channel 2 consists of a high-gain pentode coupled to a six-position tone switch. Outright benefits include quick dial-in of new tones and an easy return to the settings you prefer. Also “high treble” cut control, master volume, with a bypass feature that offers flexible control of the power amp section. The power amp is fed by a 12AX7 phase inverter, which drives four EL84 power tubes. The rectifier circuit gives you the flexibility of using one 5AR4 for a quick attack or you can use two 5V4’s for a smooth, round response. Other professional features include an effects loop, half power-mode switch (a conservative 30 watts switching to 15 watts), output impedance selector (4, 8, 16 ohms) and a speaker phase-reverse switch.

Specifications

‍Ch1. Controls: Volume, Bass, Treble
Controls: Volume, Tone, Cut control, Bypassable master volume
Features: Dual inputs for each channel, Effects loop
Switches: Reverse speaker phase, Hi-lo power, 3 Position rotary Impedance, 6 Position rotary tone
Power Tubes: 4 x EL84
Preamp Tubes: 1 x EF86, 3 x 12AX7
Rectifier: 1 x 5AR4 or 2 x 5V4G tubes
Speaker Outs: Switchable Impedance of 4, 8, and 16 Ohms
Dimensions (Head): 21.5″ (w) x 10.75″ (h) x 10.5″ (d), 50lbs
