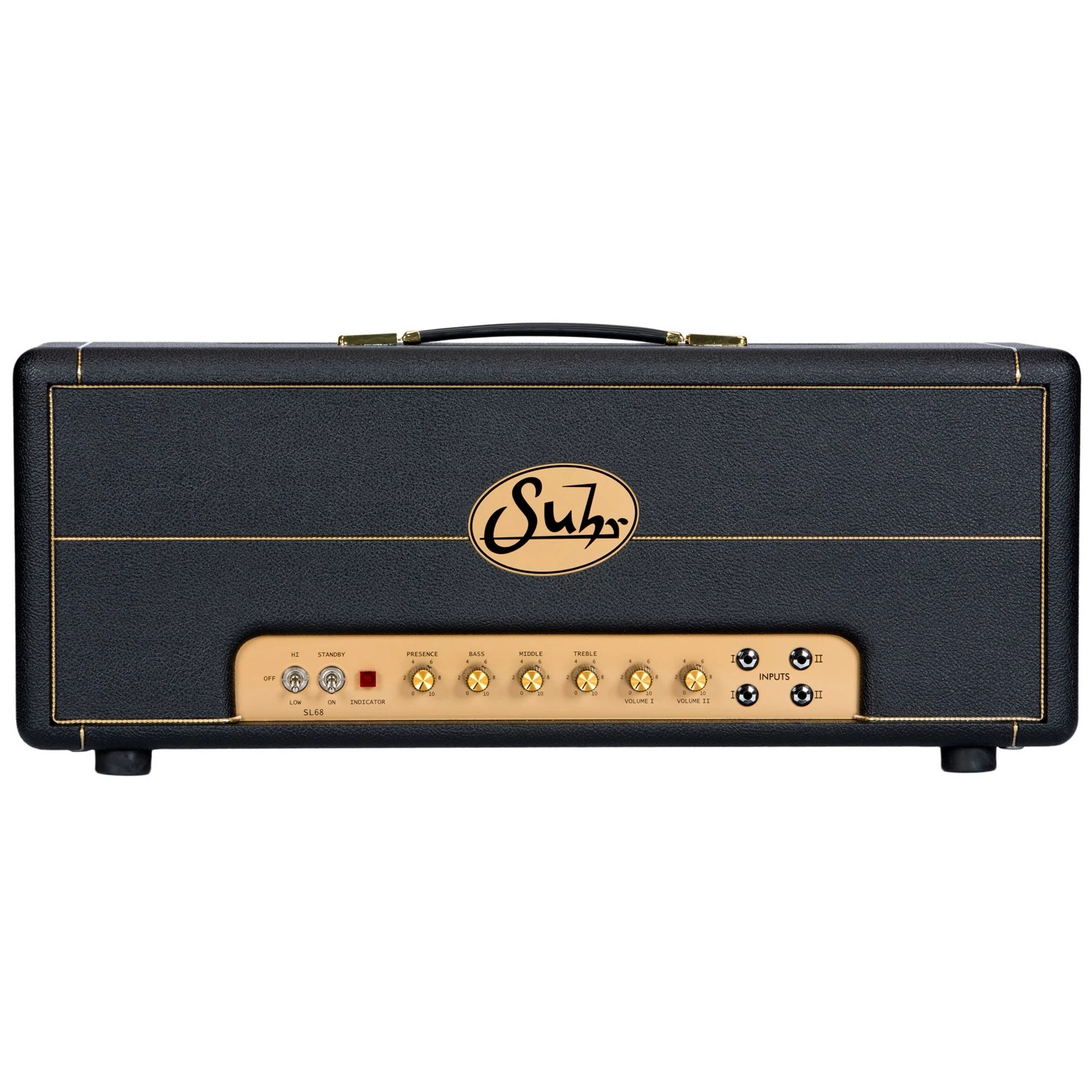

Suhr SL-68 Hand-Wired 100-Watt Guitar Amp Head, EL34 Power Tubes

Manufacturer’s Description

SUHR SL SERIES AMPLIFIERS

The Suhr SL67 and SL68 amplifiers are no compromise, hand wired, amplifiers built to deliver the complete range of classic British-style tones at any volume. From sparkling cleans to screaming high-gain Variac™* style overdrive tones, the SL Series responds dynamically to every nuance of your playing style and instrument with just a turn of your guitar’s volume control.

Each SL amplifier features hand wired construction, four inputs (Normal and Treble), Low/High power switch, Master Volume control (located on the back panel), and is powered by EL-34 power tubes and three 12AX7 preamp tubes.

SINGLE CHANNEL WITH 4 INPUTS

CHANNEL I INPUT TOP: Has a high sensitivity and voiced brighter than Channel II.

CHANNEL I INPUT BOTTOM: Has low sensitivity and offers a slightly warmer tone.

CHANNEL II INPUT TOP: Has high sensitivity and offers a normal/bassier tonal response.

CHANNEL II INPUT BOTTOM: Has low sensitivity and a normal/bassier tonal response.

VARIAC™* POWER MODE

The three position power switch incorporates a low power Variac™* mode which lowers the amount of voltage available to the amp. This classic mod makes the amp feel much more spongy with a smoother attack and has been the foundation for some of the greatest rock tones of all time. To avoid having to re-bias the amp when switching power modes, SL amplifiers have two internal bias adjustments, one for HI power, the other for LOW.

CUSTOM “PLEXI” OUTPUT TRANSFORMER

Output transformers have a major impact on tone. It’s the bridge between the output section of the amplifier and your speaker cabinet. We’ve spent countless hours listening to different transformers until the spec was finalized for our custom “PLEXI” output transformer. This transformer sounds clear, is dynamic, and lends authoritative authenticity to the amplifier.

MASTER VOLUME CONTROL

Suhr SL amplifiers feature a Post Phase Inverter Master Volume control. This type of master volume control is highly effective at transparently controlling the output of the amp. When the control is at 10, it is completely transparent and out of the circuit. Start turning it down, and the amps volume can be reduced all the way to whisper levels.

Specifications

• Output: 100 watts RMS
• Preamp Tubes: 3x 12AX7
• Power Tubes: 4x EL34
• Front Panel: OFF/HI/LOW Power Select Switch, Presence, Bass, Middle, Treble, Volume
  I, Volume II controls and four Inputs
• Back Panel: Master Volume, two Speaker outputs, Impedance Selector (4Ω, 8Ω, & 16Ω),
  HT Fuse, Mains AC Inlet and Mains Fuse
• H.T. Fuse: F 0.5A/250V (Fast-Blo)
• Dimensions: 29-1/8″ (W) X 11-5/8″ (H) X 8-1/4″ (D)
• Weight: 47lbs
