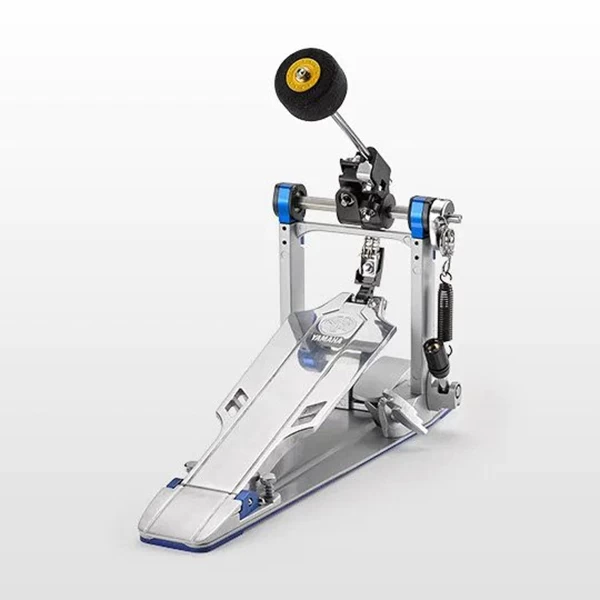

Yamaha FP-9C FP9 Series Chain Drive Single Bass Drum Pedal W/ Longboard

$97.99

SKU: YAM-FP-9C Categories: Drums, Parts and Accessories

Secure Shopping with Safe Payments
Where quality meets convenience.
Control the delivery date and try to deliver it in the fastest time
Nature-friendly materials, for a better planet.

Manufacturer’s Description

Double-chain drive model

Quick-adjusting cam
Axle-stabilizing bearing chamber
Low-profile stabilizing hinge
Easy-access, auto-lock spring adjustment
Weight-adjustable beater
Independent beater/footboard angle adjustment
Ball bearing drive connection
Anti-skid heel spikes
Carrying case

Features

Quick-Adjusting Cam/Link

The chain drive gains tension gradually throughout the stroke as the pedal is depressed. Switching the cam from C1 to C3 reduces the initial tension.

The direct drive gains tension after the tension from the first step recedes. After initially dropping, the tension from the direct drive increases steadily throughout the stroke. Switching the cam from D1 to D3 increases the initial tension.

Double Chain Drive

This durable, reliable double chain drive boasts fluid movement. The cam at the bottom of the chain can be moved into three positions, allowing the drummer to fine tune the pedal’s action to match their preferred performance. It can also be used as a belt drive by replacing the belt that is included with the pedal.

Axle-Stabilizing Bearing Chamber

The frame and bearing cover (blue parts) are independently smoothed and precisely fabricated before assembly, allowing them to to be aligned with the central axis of the shaft and ball bearings to unleash a smooth rotation.

Low-Profile Stabilizing Hinge

The hinge base and cover (blue parts) are independently smoothed and precisely fabricated before assembly, allowing smooth footboard performance.

Easy-Access Auto-Lock Spring Adjustment

Moving the spring adjustment knob upward greatly simplifies the traditionally troublesome tension adjustment process. The knob is locked at a 90-degree angle which prevents it from coming loose on its own.

Weight-Adjustable Beater

Attaching weights to the beater allows drummers to attain their preferred sound and feel. Aluminum (3g) and brass (9g) weights are both available and can be attached and removed easily.

Independent Beater/Footboard Angle Adjustment

The beater angle and footboard angle can be independently and freely adjusted. The inclusion of an angle checker allows drummers to easily re-create their preferred settings.

Ball Bearing Drive Conection

The tip of the footboard comes equipped with ball bearings, allowing even smoother performance.

Anti-Skid Heel Spikes

The heel of the pedal comes equipped with spikes that prevent slipping when playing and provide improved stability

Carrying Case

The FP9 Series comes with its own semi-hard carrying case.

Specifications
